This chapter describes the steps common to porting all applications. It then describes certain types of code and coding practices that may need to be changed before you can recompile your application.
If you have thoroughly analyzed your code and planned the migration process, the final stage of migrating source modules should be fairly straightforward. You may be able to recompile or translate many programs with no change. Programs that do not recompile or translate directly will frequently need only straightforward changes to get them running on an I64 system. Certain types of code will require changes.
Migrating your application involves the following steps:
These steps, except for setting up the migration environment, are illustrated in Figure 4-1.

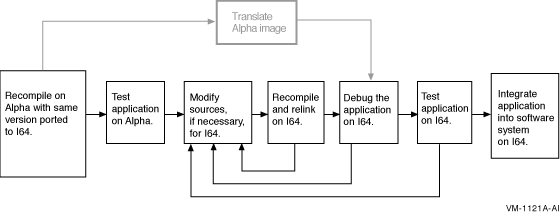

Figure 4-1 Migrating an Application from Alpha to I64
If your source files possess any of the following characteristics, you may need to change them:
For more information, see Section 4.8.
4.1 Setting Up the Migration Environment
The native I64 environment is comparable to the development environment on Alpha systems. Most of the program development tools that you are accustomed to using on OpenVMS Alpha are available. Some modifications have been made to these tools to account for the differences in the two architectures and the calling standard. Most of these modifications are invisible to users.
An important element of the I64 migration process is the availability
of support from HP Services, which can provide help in modifying,
debugging, and testing your application. For more information, see
Section 3.3.
4.1.1 Hardware
There are several issues to consider when planning what hardware you will need for your migration. To begin, consider what resources are required in your normal Alpha development environment:
In an I64 environment, the following configuration is recommended for this release:
For more information, refer to the HP OpenVMS Version 8.2 Release Notes.
4.1.2 Software
To create an efficient migration environment, check the following elements:
The standard development tools you have on Alpha are also available as native tools on I64 systems.
The software translator HP OpenVMS Migration Software for Alpha to
Integrity Servers runs on both Alpha and I64 systems. The Translated
Image Environment (TIE), which is required to run a translated image,
is part of OpenVMS I64, so final testing of a translated image must
either be done on an I64 system or at an I64 Migration Center. In
general, the process of translating an Alpha image to run on an I64
system is straightforward, although you may have to modify your code
somewhat to get it to translate without error.
4.1.2.1 HP OpenVMS Migration Software for Alpha to Integrity Servers and Translated Image Environment (TIE)
The main tools for migrating Alpha user-mode images to OpenVMS I64 are a static translator and a run-time support environment:
HP OpenVMS Migration Software for Alpha to Integrity Servers locates and translates as much Alpha code as possible into I64 code. TIE interprets any Alpha code that cannot be converted into I64 instructions; for example:
Note that you cannot specify dynamic interpretation of a Alpha image on an I64 system. You must use HP OpenVMS Migration Software for Alpha to Integrity Servers to translate the image before it can run on OpenVMS I64.
Translating a Alpha image produces an image that runs as a native image on I64 hardware. The I64 image is not merely an interpreted or emulated version of the Alpha image, but contains I64 instructions that perform operations identical to those performed by the instructions in the original Alpha image. The I64 .EXE file also contains the original Alpha image in its entirety, which allows TIE to interpret any code that HP OpenVMS Migration Software for Alpha to Integrity Servers could not translate.
The HP OpenVMS Migration Software for Alpha to Integrity Servers's
analysis capability also makes it useful for evaluating programs that
you intend to recompile, rather than translate.
4.1.3 Coexistence with Translated Images
Application components can be migrated from OpenVMS VAX and OpenVMS Alpha to OpenVMS I64 by binary translation. Because executable and shareable images can be translated on an individual basis, it is possible (even likely) to construct an environment in which native and translated images are mixed in a single image activation.
Translated images use the calling standard of their original implementation; that is, the argument lists of VAX translated images have the same binary format as they did on the VAX platform. Because the OpenVMS I64 calling standard differs from the OpenVMS VAX and OpenVMS Alpha calling standards, direct calls between native and translated images are not possible. Instead, such calls must be handled by interface routines (called jacket routines) that transform the arguments from one calling standard to the other.
The jacket routines are provided by TIE. In addition to argument transformation, TIE also handles the delivery of exceptions to translated code. TIE is loaded as an additional shareable image whenever a translated image (either main program or shareable image) is activated. The image activator interposes calls to jacket routines as necessary when it resolves references between native and translated images.
For native code to interoperate with translated code, it must meet the following requirements:
These requirements are met by compiling code using the /TIE qualifier and linking it using the /NONATIVE_ONLY qualifier. /TIE is supported by most OpenVMS I64 compilers including the Macro-32 compiler. (It is not supported on C++.) Both qualifiers must be given explicitly in the compile and LINK commands, since the defaults are /NOTIE and /NATIVE_ONLY, respectively. Signatures are not supported by the I64 assembler; therefore, routines coded in I64 assembly language cannot be directly called from translated images. I64 assembly language can call translated code only with an explicit call to OTS$CALL_PROC.
Translated image support carries a minor performance penalty: all calls to function variables are made via OTS$CALL_PROC, at a cost of about 10 instructions for most cases. Performance-critical code should only be built /TIE and /NONATIVE_ONLY if interoperation with translated images is required.
An additional consideration applies to executable and shareable images that are linked /NOSYSSHR. Ordinarily, references to OTS$CALL_PROC are resolved by the shareable image LIBOTS.EXE and require no special attention. Linking an image /NOSYSSHR skips the search of the shareable image library and instead resolves external references from object modules in STARLET.OLB. OTS$CALL_PROC makes a reference to a data cell defined in the system symbol table, and if simply included from STARLET.OLB would result in an unresolved reference to CTL$GQ_TIE_SYMVECT.
Most images linked /NOSYSSHR are so built to avoid interaction with any external images, so calls to translated code are not an issue. For this reason, STARLET.OLB contains a subset version of OTS$CALL_PROC that does not support calls to translated images. This module, named OTS$CALL_PROC_NATIVE, is loaded by default, and images linked /NOSYSSHR by default cannot call out to translated code.
In addition, STARLET.OLB also contains the module OTS$CALL_PROC, which is the full version. It has no entry in the library symbol table and is only loaded by explicit reference. For the rare cases where images linked /NOSYSSHR need to be able to call out to translated shareable images, the full version of OTS$CALL_PROC must be explicitly included from STARLET.OLB and the image must also be linked against the system symbol table. Two options are required in the link command file:
Before recompiling your code with a native I64 compiler, HP recommends that you first compile the code to run on Alpha with the latest version of the compiler. For example, if the application is written in Fortran, make sure that the application has been recompiled with Fortran Version 7.5 (Fortran 90) to run on Alpha. Fortran Version 7.5 is the version that was ported to I64.
Using the latest version of the compiler to recompile your application on OpenVMS Alpha might uncover problems that are attributable to the change in the compiler version only. For example, newer versions of compilers may enforce programming language standards that were previously ignored, exposing latent problems in your application code. Newer versions may also enforce changes to the standard that were not in effect when the earlier versions were created. Fixing such problems on OpenVMS Alpha simplifies porting that application to I64.
For a list of the native OpenVMS I64 compilers, see Section 5.1.
4.3 Testing Applications on Alpha for Baseline Information
The first step in testing is to establish baseline values for your
application by running your test suite on the Alpha application. You
can do this before or after you port your application to I64. You can
then compare the results of these tests with the results of similar
tests on an I64 system, as described in Section 4.6.
4.4 Recompiling and Relinking on an I64 System
In general, migrating your application involves repeated cycles of revising, compiling, linking, and debugging your code. During the process, you resolve all syntax and logic errors noted by the development tools. Syntax errors are usually simple to fix; logic errors typically require significant modifications to your code.
Your compile and link commands will likely require some changes, such
as new compiler and linker switches. For more information about the
compiler switches, see Chapter 6. If you are porting VAX MACRO code,
refer to the HP OpenVMS MACRO Compiler Porting and User's Guide.
4.5 Debugging the Migrated Application
Once you have migrated your application to OpenVMS I64, you may have to debug it. This section describes the OpenVMS tools available for debugging your application.
For more information about these tools, see Chapter 5, Chapter 6,
and the HP OpenVMS Debugger Manual.
4.5.1 Debugging
The OpenVMS I64 operating system provides the following debuggers:
The System-Code Debugger is a symbolic debugger that allows you to
debug nonpageable code and device drivers running at any IPL.
4.5.2 Analyzing System Crashes
OpenVMS provides two tools for analyzing system crashes: the System
Dump Analyzer and the Crash Log Utility Extractor.
4.5.2.1 System Dump Analyzer
The System Dump Analyzer (SDA) utility on OpenVMS I64 systems is almost identical to the utility provided on OpenVMS Alpha systems. Many commands, qualifiers, and displays are identical, including several for accessing functions of the Crash Log Utility Extractor (CLUE) utility. Some displays have been adapted to show information specific to OpenVMS I64 systems.
To use SDA on an Alpha system, you must first familiarize yourself with
the OpenVMS calling standard for Alpha systems. Similarly, to use SDA
on an I64 system, you must familiarize yourself with the OpenVMS
Calling Standard for I64 systems before you can decipher the pattern of
a crash on the stack. For more information, refer to the HP OpenVMS Calling Standard.
4.5.2.2 Crash Log Utility Extractor
The Crash Log Utility Extractor (CLUE) is a tool for recording a
history of crash dumps and key parameters for each crash dump, and for
extracting and summarizing key information. Unlike crash dumps, which
are overwritten with each system failure and are available only for the
most recent failure, the summary crash history file with a separate
listing file for each failure is a permanent record of system failures.
4.6 Testing the Migrated Application
You must test your application to compare the functionality of the migrated version with that of the Alpha version.
The first step in testing is to establish baseline values for your application by running your test suite on the Alpha application, as described in Section 4.3.
Once your application is running on an I64 system, there are two types of tests you should apply:
Because the changes in your application are combined with use of a new architecture, testing your application after it is migrated to OpenVMS I64 is particularly important. Not only can the changes introduce errors into the application, but the new environment can bring out latent problems in the Alpha version.
Testing your migrated application involves the following steps:
Although your standard tests should go a long way toward verifying the function of the migrated application, you should add some tests that look at issues specific to the migration. Points to focus on include the following:
Despite your best efforts, you may encounter bugs that were in your program all along but that never caused a problem on an OpenVMS Alpha system.
For example, failure to initialize some variable in your program might
have been benign on an Alpha system but could produce an arithmetic
exception on an I64 system. The same could be true of moving between
any other two architectures, because the available instructions and the
way compilers optimize them is bound to change. There is no magic
answer for bugs that have been in hiding, but you should test your
programs after porting them and before making them available to other
users.
4.7 Integrating the Migrated Application into a Software System
After you have migrated your application, check for problems that are caused by interactions with other software and that may have been introduced during the migration.
Sources of problems in interoperability can include the following:
$ run alpha_image.exe %DCL-W-ACTIMAGE, error activating image alpha_image.exe -CLI-E-IMGNAME, image file alpha_image.exe -IMGACT-F-NOT_I64, image is not an HP OpenVMS Industry Standard 64 image $ |
Certain coding practices and types of code will require changes. The coding practices and types of code that may or will require changes are:
