2.7.2.3 Signal Array

The signal array appears somewhat further down the stack. This array comprises all longwords so that the structure is VAX compatible. A signal array describes the exception that occurred. It contains an argument count, the exception code, zero or more exception parameters, the PC, and the PS. Therefore, the size of a signal array can vary from exception to exception. Although there are several possible exception conditions, access violations are most common. Figure 2-3 shows the signal array for an access violation.

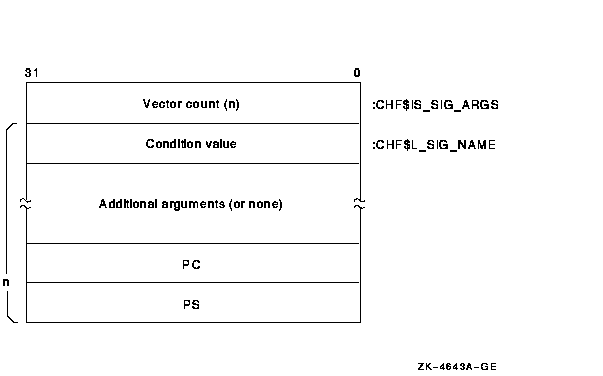

Figure 2-3 Signal Array

For access violations, the signal array is set up as follows:

Value Meaning

Vector list length Number of longwords that follow. For access violations, this value is always 5.

Condition value Exception code. The value 0C ₁₆ represents an access violation. You can identify the exception code by using the SDA command EVALUATE/CONDITION_VALUE or SHOW CRASH.

Additional arguments These can include a reason mask and a virtual address.
In the longword mask if bit 0 of the longword is set, the failing instruction (at the PC saved below) caused a length violation. If bit 1 is set, it referred to a location whose page table entry is in a "no access" page. Bit 2 indicates the type of access used by the failing instruction: it is set for write and modify operations and clear for read operations.
The virtual address represents the low-order 32 bits of the virtual address that the failing instruction tried to reference.

PC PC whose execution resulted in the exception.

PS PS at the time of the exception.

Value	Meaning
Vector list length	Number of longwords that follow. For access violations, this value is always 5.
Condition value	Exception code. The value 0C ₁₆ represents an access violation. You can identify the exception code by using the SDA command EVALUATE/CONDITION_VALUE or SHOW CRASH.
Additional arguments	These can include a reason mask and a virtual address. In the longword mask if bit 0 of the longword is set, the failing instruction (at the PC saved below) caused a length violation. If bit 1 is set, it referred to a location whose page table entry is in a "no access" page. Bit 2 indicates the type of access used by the failing instruction: it is set for write and modify operations and clear for read operations. The virtual address represents the low-order 32 bits of the virtual address that the failing instruction tried to reference.
PC	PC whose execution resulted in the exception.
PS	PS at the time of the exception.

2.7.2.4 64-Bit Signal Array

The 64-bit signal array also appears further down the stack. This array comprises all quadwords and is not VAX compatible. It contains the same data as the signal array, and Figure 2-4 shows the 64-bit signal array for an access violation. The SDA SHOW STACK command uses the CHF64$ symbols listed in the figure to identify the 64-bit signal array on the stack.

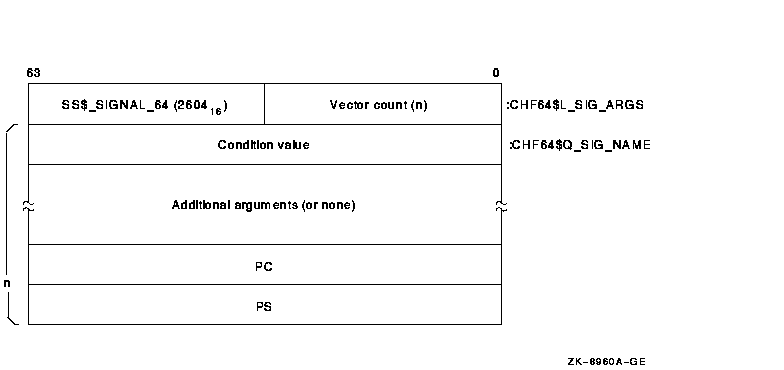

Figure 2-4 64-Bit Signal Array

For access violations, the 64-bit signal array is set up as follows:

Value Meaning

Vector list length Number of quadwords that follow. For access violations, this value is always 5.

Condition value Exception code. The value 0C ₁₆ represents an access violation. You can identify the exception code by using the SDA command EVALUATE/CONDITION_VALUE or SHOW CRASH.

Additional arguments These can include a reason mask and a virtual address.
In the quadword mask if bit 0 of the quadword is set, the failing instruction (at the PC saved below) caused a length violation. If bit 1 is set, it referred to a location whose page table entry is in a "no access" page. Bit 2 indicates the type of access used by the failing instruction: it is set for write and modify operations and clear for read operations.

PC PC whose execution resulted in the exception.

PS PS at the time of the exception.

Value	Meaning
Vector list length	Number of quadwords that follow. For access violations, this value is always 5.
Condition value	Exception code. The value 0C ₁₆ represents an access violation. You can identify the exception code by using the SDA command EVALUATE/CONDITION_VALUE or SHOW CRASH.
Additional arguments	These can include a reason mask and a virtual address. In the quadword mask if bit 0 of the quadword is set, the failing instruction (at the PC saved below) caused a length violation. If bit 1 is set, it referred to a location whose page table entry is in a "no access" page. Bit 2 indicates the type of access used by the failing instruction: it is set for write and modify operations and clear for read operations.
PC	PC whose execution resulted in the exception.
PS	PS at the time of the exception.

2.7.2.5 Alpha Exception Stack Frame

Figure 2-5 illustrates the Alpha exception stack frame, which comprises all quadwords.

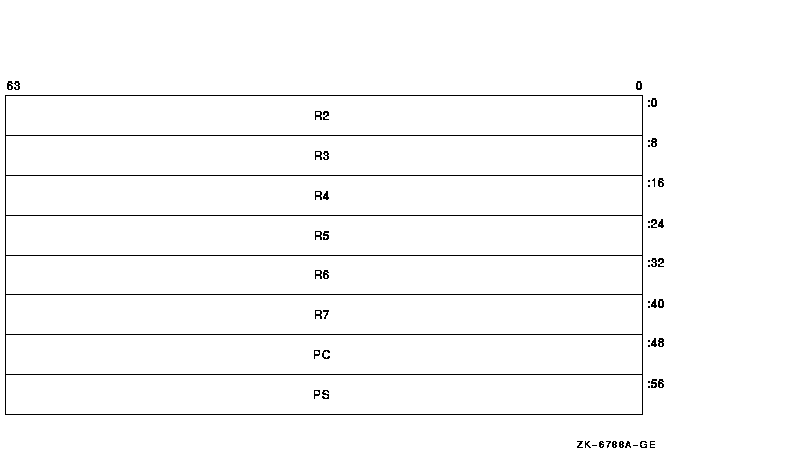

Figure 2-5 Alpha Exception Stack Frame

The values contained in the exception stack frame are defined as follows:

Table 2-10 Alpha Exception Stack Frame Values
Value Contents

INTSTK$Q_R2 Contents of R2 at the time of the exception

INTSTK$Q_R3 Contents of R3 at the time of the exception

INTSTK$Q_R4 Contents of R4 at the time of the exception

INTSTK$Q_R5 Contents of R5 at the time of the exception

INTSTK$Q_R6 Contents of R6 at the time of the exception

INTSTK$Q_R7 Contents of R7 at the time of the exception

INTSTK$Q_PC PC whose execution resulted in the exception

INTSTK$Q_PS PS at the time of the exception (except high-order bits)

**Table 2-10 Alpha Exception Stack Frame Values**
Value	Contents
INTSTK$Q_R2	Contents of R2 at the time of the exception
INTSTK$Q_R3	Contents of R3 at the time of the exception
INTSTK$Q_R4	Contents of R4 at the time of the exception
INTSTK$Q_R5	Contents of R5 at the time of the exception
INTSTK$Q_R6	Contents of R6 at the time of the exception
INTSTK$Q_R7	Contents of R7 at the time of the exception
INTSTK$Q_PC	PC whose execution resulted in the exception
INTSTK$Q_PS	PS at the time of the exception (except high-order bits)

The SDA SHOW STACK command identifies the elements of the exception stack frame on the stack using these symbols.

2.7.2.6 I64 Exception Stack Frame

Figure 2-6 and Figure 2-7 illustrate the I64 exception stack frame.

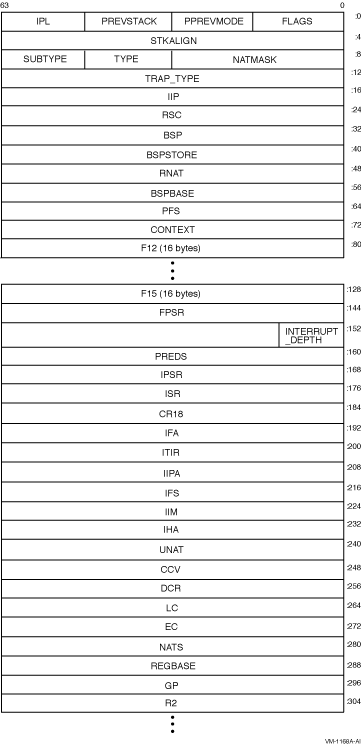

Figure 2-6 I64 Exception Stack Frame

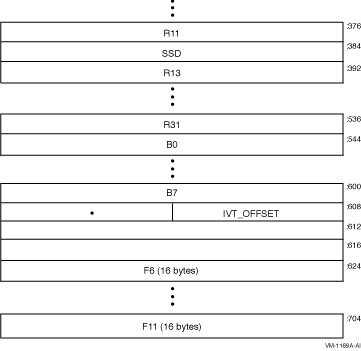

Figure 2-7 I64 Exception Stack Frame (cont.)

The values contained in the exception stack frame are defined in Table 2-11.

Table 2-11 I64 Exception Stack Frame Values
Field Use

INTSTK$B_FLAGS Indicates if certain registers have been saved.

INTSTK$B_PPREVMODE Save interrupted context's PREVMODE.

INTSTK$B_PREVSTACK Indicates which mode of stack (register and memory) we return to.

INTSTK$B_IPL SWIS IPL state

INTSTK$L_STKALIGN How much allocated on this stack for exception frame.

INTSTK$W_NATMASK Mask of bits 3-9 of the exception frame address.

INTSTK$B_TYPE Standard VMS structure type.

INTSTK$B_SUBTYPE Standard VMS structure subtype.

INTSTK$L_TRAP_TYPE Trap type.

INTSTK$Q_IIP Interruption Instruction Pointer (CR19).

INTSTK$Q_RSC Register Stack Control register.

INTSTK$Q_BSP Backing store pointer.

INTSTK$Q_BSPSTORE User BSP store pointer for next spill.

INTSTK$Q_RNAT RNAT register.

INTSTK$Q_BSPBASE Base of backing store for the inner mode.

INTSTK$Q_PFS Previous function state.

INTSTK$Q_CONTEXT Bookkeeping data for exception processing.

INTSTK$Q_AST_F12 through INTSTK$Q_AST_F15 F12 to F15 - temporary FP registers; sometimes saved by AST.

INTSTK$Q_FPSR Floating point status register.

INTSTK$B_INTERRUPT_DEPTH Interrupt depth.

INTSTK$Q_PREDS Predication registers.

INTSTK$Q_IPSR Interruption Processor Status (CR16).

INTSTK$Q_ISR Interruption Status Register (CR17).

INTSTK$Q_CR18 Reserved control register.

INTSTK$Q_IFA Interruption Fault Address (CR20).

INTSTK$Q_ITIR Interruption TLB Insertion Register (CR21).

INTSTK$Q_IIPA Interruption immediate register (CR22).

INTSTK$Q_IFS Interruption Function State (CR23).

INTSTK$Q_IIM Interruption immediate (CR24).

INTSTK$Q_IHA Interruption Hash Address (CR25).

INTSTK$Q_UNAT User NAT collection register.

INTSTK$Q_CCV CCV register.

INTSTK$Q_DCR Default control register.

INTSTK$Q_LC Loop counter.

INTSTK$Q_EC Epilogue counter.

INTSTK$Q_NATS NATs for registers saved in this structure.

INTSTK$Q_REGBASE Used to index into registers.

INTSTK$Q_GP r1 - Used as global pointer.

INTSTK$Q_R2 r2 - temporary register.

INTSTK$Q_R3 r3 - temporary register.

INTSTK$Q_R4 through R7 r4 through r7 - preserved registers (not saved by interrupt).

INTSTK$Q_R8 r8 - return value.

INTSTK$Q_R9 r9 - argument pointer.

INTSTK$Q_R10 r10 - temporary register.

INTSTK$Q_R11 r11 - temporary register.

INTSTK$Q_SSD For future use.

INTSTK$Q_R13 r13 - Thread Pointer.

INTSTK$Q_R14 through R31 r14 through r31 - temporary registers.

INTSTK$Q_B0 Return pointer on kernel entry.

INTSTK$Q_B1 through B5 b1 through b5 - Preserved branch registers (not saved by interrupt).

INTSTK$Q_B6 b6 - temporary branch register.

INTSTK$Q_B7 b7 - temporary branch register.

INTSTK$L_IVT_OFFSET Offset in IVT.

INTSTK$Q_F6 through F11 f6 through f11 - temporary FP registers.

**Table 2-11 I64 Exception Stack Frame Values**
Field	Use
INTSTK$B_FLAGS	Indicates if certain registers have been saved.
INTSTK$B_PPREVMODE	Save interrupted context's PREVMODE.
INTSTK$B_PREVSTACK	Indicates which mode of stack (register and memory) we return to.
INTSTK$B_IPL	SWIS IPL state
INTSTK$L_STKALIGN	How much allocated on this stack for exception frame.
INTSTK$W_NATMASK	Mask of bits 3-9 of the exception frame address.
INTSTK$B_TYPE	Standard VMS structure type.
INTSTK$B_SUBTYPE	Standard VMS structure subtype.
INTSTK$L_TRAP_TYPE	Trap type.
INTSTK$Q_IIP	Interruption Instruction Pointer (CR19).
INTSTK$Q_RSC	Register Stack Control register.
INTSTK$Q_BSP	Backing store pointer.
INTSTK$Q_BSPSTORE	User BSP store pointer for next spill.
INTSTK$Q_RNAT	RNAT register.
INTSTK$Q_BSPBASE	Base of backing store for the inner mode.
INTSTK$Q_PFS	Previous function state.
INTSTK$Q_CONTEXT	Bookkeeping data for exception processing.
INTSTK$Q_AST_F12 through INTSTK$Q_AST_F15	F12 to F15 - temporary FP registers; sometimes saved by AST.
INTSTK$Q_FPSR	Floating point status register.
INTSTK$B_INTERRUPT_DEPTH	Interrupt depth.
INTSTK$Q_PREDS	Predication registers.
INTSTK$Q_IPSR	Interruption Processor Status (CR16).
INTSTK$Q_ISR	Interruption Status Register (CR17).
INTSTK$Q_CR18	Reserved control register.
INTSTK$Q_IFA	Interruption Fault Address (CR20).
INTSTK$Q_ITIR	Interruption TLB Insertion Register (CR21).
INTSTK$Q_IIPA	Interruption immediate register (CR22).
INTSTK$Q_IFS	Interruption Function State (CR23).
INTSTK$Q_IIM	Interruption immediate (CR24).
INTSTK$Q_IHA	Interruption Hash Address (CR25).
INTSTK$Q_UNAT	User NAT collection register.
INTSTK$Q_CCV	CCV register.
INTSTK$Q_DCR	Default control register.
INTSTK$Q_LC	Loop counter.
INTSTK$Q_EC	Epilogue counter.
INTSTK$Q_NATS	NATs for registers saved in this structure.
INTSTK$Q_REGBASE	Used to index into registers.
INTSTK$Q_GP	r1 - Used as global pointer.
INTSTK$Q_R2	r2 - temporary register.
INTSTK$Q_R3	r3 - temporary register.
INTSTK$Q_R4 through R7	r4 through r7 - preserved registers (not saved by interrupt).
INTSTK$Q_R8	r8 - return value.
INTSTK$Q_R9	r9 - argument pointer.
INTSTK$Q_R10	r10 - temporary register.
INTSTK$Q_R11	r11 - temporary register.
INTSTK$Q_SSD	For future use.
INTSTK$Q_R13	r13 - Thread Pointer.
INTSTK$Q_R14 through R31	r14 through r31 - temporary registers.
INTSTK$Q_B0	Return pointer on kernel entry.
INTSTK$Q_B1 through B5	b1 through b5 - Preserved branch registers (not saved by interrupt).
INTSTK$Q_B6	b6 - temporary branch register.
INTSTK$Q_B7	b7 - temporary branch register.
INTSTK$L_IVT_OFFSET	Offset in IVT.
INTSTK$Q_F6 through F11	f6 through f11 - temporary FP registers.

2.7.2.7 SSRVEXCEPT Example

If OpenVMS encounters a fatal exception, you can find the code that signaled it by examining the PC in the signal array. Use the SHOW CRASH or CLUE CRASH command to display the PC and the instruction stream around the PC to locate the exception.

The following display shows the SDA output in response to the SHOW CRASH and SHOW STACK commands for an Alpha SSRVEXCEPT bugcheck. It illustrates the mechanism array, signal arrays, and the exception stack frame previously described.

Example 2-1 SHOW CRASH

OpenVMS (TM) Alpha system dump analyzer ...analyzing a selective memory dump... Dump taken on 30-AUG-2000 13:13:46.83 SSRVEXCEPT, Unexpected system service exception SDA> SHOW CRASH Time of system crash: 30-AUG-1996 13:13:46.83 Version of system: OpenVMS (TM) Alpha Operating System, Version V7.3 System Version Major ID/Minor ID: 3/0 System type: DEC 3000 Model 400 Crash CPU ID/Primary CPU ID: 00/00 Bitmask of CPUs active/available: 00000001/00000001 CPU bugcheck codes: CPU 00 -- SSRVEXCEPT, Unexpected system service exception System State at Time of Exception --------------------------------- Exception Frame: ---------------- R2 = 00000000.00000003 R3 = FFFFFFFF.80C63460 EXCEPTION_MON_NPRW+06A60 R4 = FFFFFFFF.80D12740 PCB R5 = 00000000.000000C8 R6 = 00000000.00030038 R7 = 00000000.7FFA1FC0 PC = 00000000.00030078 PS = 00000000.00000003 00000000.00030068: STQ R27,(SP) 00000000.0003006C: BIS R31,SP,FP 00000000.00030070: STQ R26,#X0010(SP) 00000000.00030074: LDA R28,(R31) PC => 00000000.00030078: LDL R28,(R28) 00000000.0003007C: BEQ R28,#X000007 00000000.00030080: LDQ R26,#XFFE8(R27) 00000000.00030084: BIS R31,R26,R0 00000000.00030088: BIS R31,FP,SP PS => MBZ SPAL MBZ IPL VMM MBZ CURMOD INT PRVMOD 0 00 00000000000 00 0 0 KERN 0 USER Signal Array ------------ Length = 00000005 Type = 0000000C Arg = 00000000.00010000 Arg = 00000000.00000000 Arg = 00000000.00030078 Arg = 00000000.00000003 %SYSTEM-F-ACCVIO, access violation, reason mask=00, virtual address=0000000000000000, PC=0000000000030078, PS=00000003 Saved Scratch Registers in Mechanism Array ------------------------------------------ R0 = 00000000.00020000 R1 = 00000000.00000000 R16 = 00000000.00020004 R17 = 00000000.00010050 R18 = FFFFFFFF.FFFFFFFF R19 = 00000000.00000000 R20 = 00000000.7FFA1F50 R21 = 00000000.00000000 R22 = 00000000.00010050 R23 = 00000000.00000000 R24 = 00000000.00010051 R25 = 00000000.00000000 R26 = FFFFFFFF.8010ACA4 R27 = 00000000.00010050 R28 = 00000000.00000000 CPU 00 Processor crash information ---------------------------------- CPU 00 reason for Bugcheck: SSRVEXCEPT, Unexpected system service exception Process currently executing on this CPU: SYSTEM Current image file: $31$DKB0:[SYS0.][SYSMGR]X.EXE;1 Current IPL: 0 (decimal) CPU database address: 80D0E000 CPUs Capabilities: PRIMARY,QUORUM,RUN General registers: R0 = 00000000.00000000 R1 = 00000000.7FFA1EB8 R2 = FFFFFFFF.80D0E6C0 R3 = FFFFFFFF.80C63460 R4 = FFFFFFFF.80D12740 R5 = 00000000.000000C8 R6 = 00000000.00030038 R7 = 00000000.7FFA1FC0 R8 = 00000000.7FFAC208 R9 = 00000000.7FFAC410 R10 = 00000000.7FFAD238 R11 = 00000000.7FFCE3E0 R12 = 00000000.00000000 R13 = FFFFFFFF.80C6EB60 R14 = 00000000.00000000 R15 = 00000000.009A79FD R16 = 00000000.000003C4 R17 = 00000000.7FFA1D40 R18 = FFFFFFFF.80C05C38 R19 = 00000000.00000000 R20 = 00000000.7FFA1F50 R21 = 00000000.00000000 R22 = 00000000.00000001 R23 = 00000000.7FFF03C8 R24 = 00000000.7FFF0040 AI = 00000000.00000003 RA = FFFFFFFF.82A21080 PV = FFFFFFFF.829CF010 R28 = FFFFFFFF.8004B6DC FP = 00000000.7FFA1CA0 PC = FFFFFFFF.82A210B4 PS = 18000000.00000000 Processor Internal Registers: ASN = 00000000.0000002F ASTSR/ASTEN = 0000000F IPL = 00000000 PCBB = 00000000.003FE080 PRBR = FFFFFFFF.80D0E000 PTBR = 00000000.00001136 SCBB = 00000000.000001DC SISR = 00000000.00000000 VPTB = FFFFFFFC.00000000 FPCR = 00000000.00000000 MCES = 00000000.00000000 CPU 00 Processor crash information ---------------------------------- KSP = 00000000.7FFA1C98 ESP = 00000000.7FFA6000 SSP = 00000000.7FFAC100 USP = 00000000.7AFFBAD0 No spinlocks currently owned by CPU 00

Example 2-2 SHOW STACK

SDA> SHOW STACK Current Operating Stack (KERNEL): 00000000.7FFA1C78 18000000.00000000 00000000.7FFA1C80 00000000.7FFA1CA0 00000000.7FFA1C88 00000000.00000000 00000000.7FFA1C90 00000000.7FFA1D40 SP => 00000000.7FFA1C98 00000000.00000000 00000000.7FFA1CA0 FFFFFFFF.829CF010 EXE$EXCPTN 00000000.7FFA1CA8 FFFFFFFF.82A2059C EXCEPTION_MON_PRO+0259C 00000000.7FFA1CB0 00000000.00000000 00000000.7FFA1CB8 00000000.7FFA1CD0 00000000.7FFA1CC0 FFFFFFFF.829CEDA8 EXE$SET_PAGES_READ_ONLY+00948 00000000.7FFA1CC8 00000000.00000000 00000000.7FFA1CD0 FFFFFFFF.829CEDA8 EXE$SET_PAGES_READ_ONLY+00948 00000000.7FFA1CD8 00000000.00000000 00000000.7FFA1CE0 FFFFFFFF.82A1E930 EXE$CONTSIGNAL_C+001D0 00000000.7FFA1CE8 00000000.7FFA1F40 00000000.7FFA1CF0 FFFFFFFF.80C63780 EXE$ACVIOLAT 00000000.7FFA1CF8 00000000.7FFA1EB8 00000000.7FFA1D00 00000000.7FFA1D40 00000000.7FFA1D08 00000000.7FFA1F00 00000000.7FFA1D10 00000000.7FFA1F40 00000000.7FFA1D18 00000000.00000000 00000000.7FFA1D20 00000000.00000000 00000000.7FFA1D28 00000000.00020000 SYS$K_VERSION_04 00000000.7FFA1D30 00000005.00000250 BUG$_NETRCVPKT 00000000.7FFA1D38 829CE050.000008F8 BUG$_SEQ_NUM_OVF CHF$IS_MCH_ARGS 00000000.7FFA1D40 00000000.0000002C CHF$PH_MCH_FRAME 00000000.7FFA1D48 00000000.7AFFBAD0 CHF$IS_MCH_DEPTH 00000000.7FFA1D50 FFFFFFFF.FFFFFFFD CHF$PH_MCH_DADDR 00000000.7FFA1D58 00000000.00000000 CHF$PH_MCH_ESF_ADDR 00000000.7FFA1D60 00000000.7FFA1F00 CHF$PH_MCH_SIG_ADDR 00000000.7FFA1D68 00000000.7FFA1EB8 CHF$IH_MCH_SAVR0 00000000.7FFA1D70 00000000.00020000 SYS$K_VERSION_04 CHF$IH_MCH_SAVR1 00000000.7FFA1D78 00000000.00000000 CHF$IH_MCH_SAVR16 00000000.7FFA1D80 00000000.00020004 UCB$M_LCL_VALID+00004 CHF$IH_MCH_SAVR17 00000000.7FFA1D88 00000000.00010050 SYS$K_VERSION_16+00010 CHF$IH_MCH_SAVR18 00000000.7FFA1D90 FFFFFFFF.FFFFFFFF CHF$IH_MCH_SAVR19 00000000.7FFA1D98 00000000.00000000 CHF$IH_MCH_SAVR20 00000000.7FFA1DA0 00000000.7FFA1F50 CHF$IH_MCH_SAVR21 00000000.7FFA1DA8 00000000.00000000 CHF$IH_MCH_SAVR22 00000000.7FFA1DB0 00000000.00010050 SYS$K_VERSION_16+00010 CHF$IH_MCH_SAVR23 00000000.7FFA1DB8 00000000.00000000 CHF$IH_MCH_SAVR24 00000000.7FFA1DC0 00000000.00010051 SYS$K_VERSION_16+00011 CHF$IH_MCH_SAVR25 00000000.7FFA1DC8 00000000.00000000 CHF$IH_MCH_SAVR26 00000000.7FFA1DD0 FFFFFFFF.8010ACA4 AMAC$EMUL_CALL_NATIVE_C+000A4 CHF$IH_MCH_SAVR27 00000000.7FFA1DD8 00000000.00010050 SYS$K_VERSION_16+00010 CHF$IH_MCH_SAVR28 00000000.7FFA1DE0 00000000.00000000 00000000.7FFA1DE8 00000000.00000000 00000000.7FFA1DF0 00000000.00000000 00000000.7FFA1DF8 00000000.00000000 00000000.7FFA1E00 00000000.00000000 00000000.7FFA1E08 00000000.00000000 00000000.7FFA1E10 00000000.00000000 00000000.7FFA1E18 00000000.00000000 00000000.7FFA1E20 00000000.00000000 00000000.7FFA1E28 00000000.00000000 00000000.7FFA1E30 00000000.00000000 00000000.7FFA1E38 00000000.00000000 00000000.7FFA1E40 00000000.00000000 00000000.7FFA1E48 00000000.00000000 00000000.7FFA1E50 00000000.00000000 00000000.7FFA1E58 00000000.00000000 00000000.7FFA1E60 00000000.00000000 00000000.7FFA1E68 00000000.00000000 00000000.7FFA1E70 00000000.00000000 00000000.7FFA1E78 00000000.00000000 00000000.7FFA1E80 00000000.00000000 00000000.7FFA1E88 00000000.00000000 00000000.7FFA1E90 00000000.00000000 00000000.7FFA1E98 00000000.00000000 CHF$PH_MCH_SIG64_ADDR 00000000.7FFA1EA0 00000000.7FFA1ED0 00000000.7FFA1EA8 00000000.00000000 00000000.7FFA1EB0 00000000.7FFA1F50 00000000.7FFA1EB8 0000000C.00000005 00000000.7FFA1EC0 00000000.00010000 SYS$K_VERSION_07 00000000.7FFA1EC8 00000003.00030078 SYS$K_VERSION_01+00078 CHF$L_SIG_ARGS 00000000.7FFA1ED0 00002604.00000005 UCB$M_TEMPLATE+00604 CHF$L_SIG_ARG1 00000000.7FFA1ED8 00000000.0000000C 00000000.7FFA1EE0 00000000.00010000 SYS$K_VERSION_07 00000000.7FFA1EE8 00000000.00000000 00000000.7FFA1EF0 00000000.00030078 SYS$K_VERSION_01+00078 00000000.7FFA1EF8 00000000.00000003 INTSTK$Q_R2 00000000.7FFA1F00 00000000.00000003 INTSTK$Q_R3 00000000.7FFA1F08 FFFFFFFF.80C63460 EXCEPTION_MON_NPRW+06A60 INTSTK$Q_R4 00000000.7FFA1F10 FFFFFFFF.80D12740 PCB INTSTK$Q_R5 00000000.7FFA1F18 00000000.000000C8 INTSTK$Q_R6 00000000.7FFA1F20 00000000.00030038 SYS$K_VERSION_01+00038 INTSTK$Q_R7 00000000.7FFA1F28 00000000.7FFA1FC0 INTSTK$Q_PC 00000000.7FFA1F30 00000000.00030078 SYS$K_VERSION_01+00078 INTSTK$Q_PS 00000000.7FFA1F38 00000000.00000003 Prev SP (7FFA1F40) ==> 00000000.7FFA1F40 00000000.00010050 SYS$K_VERSION_16+00010 00000000.7FFA1F48 00000000.00010000 SYS$K_VERSION_07 00000000.7FFA1F50 FFFFFFFF.8010ACA4 AMAC$EMUL_CALL_NATIVE_C+000A4 00000000.7FFA1F58 00000000.7FFA1F70 00000000.7FFA1F60 00000000.00000001 00000000.7FFA1F68 FFFFFFFF.800EE81C RM_STD$DIRCACHE_BLKAST_C+005AC 00000000.7FFA1F70 FFFFFFFF.80C6EBA0 SCH$CHSEP+001E0 00000000.7FFA1F78 00000000.829CEDE8 EXE$SIGTORET 00000000.7FFA1F80 00010050.00000002 SYS$K_VERSION_16+00010 00000000.7FFA1F88 00000000.00020000 SYS$K_VERSION_04 00000000.7FFA1F90 00000000.00030000 SYS$K_VERSION_01 00000000.7FFA1F98 FFFFFFFF.800A4D64 EXCEPTION_MON_NPRO+00D64 00000000.7FFA1FA0 00000000.00000003 00000000.7FFA1FA8 FFFFFFFF.80D12740 PCB 00000000.7FFA1FB0 00000000.00010000 SYS$K_VERSION_07 00000000.7FFA1FB8 00000000.7AFFBAD0 00000000.7FFA1FC0 00000000.7FFCF880 MMG$IMGHDRBUF+00080 00000000.7FFA1FC8 00000000.7B0E9851 00000000.7FFA1FD0 00000000.7FFCF818 MMG$IMGHDRBUF+00018 00000000.7FFA1FD8 00000000.7FFCF938 MMG$IMGHDRBUF+00138 00000000.7FFA1FE0 00000000.7FFAC9F0 00000000.7FFA1FE8 00000000.7FFAC9F0 00000000.7FFA1FF0 FFFFFFFF.80000140 SYS$PUBLIC_VECTORS_NPRO+00140 00000000.7FFA1FF8 00000000.0000001B . . .
