This chapter describes the system declaration mechanism, including LIB$INITIALIZE, which performs calls to any initialization routine declared for the image by the user. However, use of LIB$INITIALIZE is discouraged and should be used only when no other method is suitable. This chapter contains the following sections:

Section 35.1 describes the steps to perform image initialization.

Section 35.2 describes the argument list that is passed from the command interpreter, the debugger, or LIB$INITIALIZE to the main program.

Section 35.3 describes how a library or user program can declare an initialization routine.

Section 35.4 describes how the LIB$INITIALIZE dispatcher calls the initialization routine in a list.

Section 35.5 describes the options available to an initialization routine.

Section 35.6 illustrates with a code example several functions of an initialization routine on VAX, Alpha, and I64 systems.

35.1 Initializing an Image

In most cases, both user and library routines are self-initializing. This means that they can process information with no special action required by the calling program. Initialization is automatic in two situations:

• When the routine's statically allocated data storage is initialized at compile or link time
• When a statically allocated flag is tested and set on each call so that initialization occurs only on the first call

Any special initialization, such as a call to other routines or to system services, can be performed on the first call before the main program is initialized. For example, you can establish a new environment to alter the way errors are handled or the way messages are printed.

Such special initialization is required only rarely; however, when it is required, the caller of the routine does not need to make an explicit initialization call. The run-time library provides a system declaration mechanism that performs all such initialization calls before the main program is called. Thus, special initialization is invisible to later callers of the routine.

On VAX systems, before the main program or main routine is called, a number of system initialization routines are called as specified by a 1-, 2-, or 3-longword initialization list set up by the linker.

On Alpha and I64 systems, before the main program or main routine is called, a number of system initialization routines are called as specified by a 1-, 2-, or 3-quadword initialization list set up by the linker.

On VAX systems, the initialization list consists of the following (in order):

• The addresses of the debugger (if present)
• The LIB$INITIALIZE routine (if present)
• The entry point of the main program or main routine

On Alpha and I64 systems, the initialization list consists of the following (in order):

• The procedure value addresses of the debugger (if present)
• The LIB$INITIALIZE routine (if present)
• The entry point of the main program or main routine

The following initialization steps take place:

1. The image activator maps the user program into the address space of the process and sets up useful information, such as the program name. Then it starts the command language interpreter (CLI).
2. The CLI sets up an argument list and calls the next routine in the initialization list (debugger, LIB$INITIALIZE, main program, or main routine).
3. On VAX systems, the debugger, if present, initializes itself and calls the next routine in the initialization list (LIB$INITIALIZE, main program, or main routine).
   On Alpha and I64 systems, the CLI calls the debugger, if present, to set the initial breakpoints. Then the CLI calls the next entry in the vector.
4. The LIB$INITIALIZE library routine, if present, calls each library and user initialization routine declared using the system LIB$INITIALIZE mechanism. Then it calls the main program or main routine.
5. The main program or main routine executes and, at the user's discretion, accesses its argument list to scan the command or to obtain information about the image. The main program or main routine can then call other routines.
6. Eventually, the main program or main routine terminates by executing a return instruction (RET) with R0 set to a standard completion code to indicate success or failure, where bit <0> equals 1 (success) or 0 (failure).
   The MACRO compiler maps the registers in Macro-32 source programs to I64 registers on your behalf, as shown in Table 18-16, to minimize source changes. This allows existing programs to use R0 and have the generated code return the value in R8 as prescribed by the calling standard.
7. The completion code is returned to LIB$INITIALIZE (if present), the debugger (if present), and, finally, to the CLI, which issues a SYS$EXIT system service with the completion status as an argument. Any declared exit handlers are called at this point.

Figure 35-1 and Figure 35-2 illustrate the sequence of calls and returns in a typical image initialization. Each box is a routine activation as represented on the image stack. The top of the stack is at the top of the figure. Each upward arrow represents the result of a call instruction that creates a routine activation on the stack to which control is being transferred. Each downward arrow represents the result of a RET (return) instruction. A RET instruction removes the routine activation from the stack and causes control to be transferred downward to the next box.

A user program can alter the image initialization sequence by making a program section (PSECT) contribution to PSECT LIB$INITIALIZE and by declaring EXTERNAL LIB$INITIALIZE. This adds the optional initialization steps shown in Figure 35-1 and Figure 35-2 labeled "Program Section Contribution to LIB$INITIALIZE." (A program section is a portion of a program with a given protection and set of storage management attributes. Program sections that have the same attributes are gathered together by the linker to form an image section.) If the initialization routine also performs a coroutine call back to LIB$INITIALIZE, the optional steps labeled "Coroutine Call Back to LIB$INITIALIZE" in Figure 35-1 and Figure 35-2 are added to the image initialization sequence.

On VAX systems, Figure 35-1 shows the call instruction calling the debugger, if present, and the debugger then directly calling LIB$INITIALIZE and the main program.

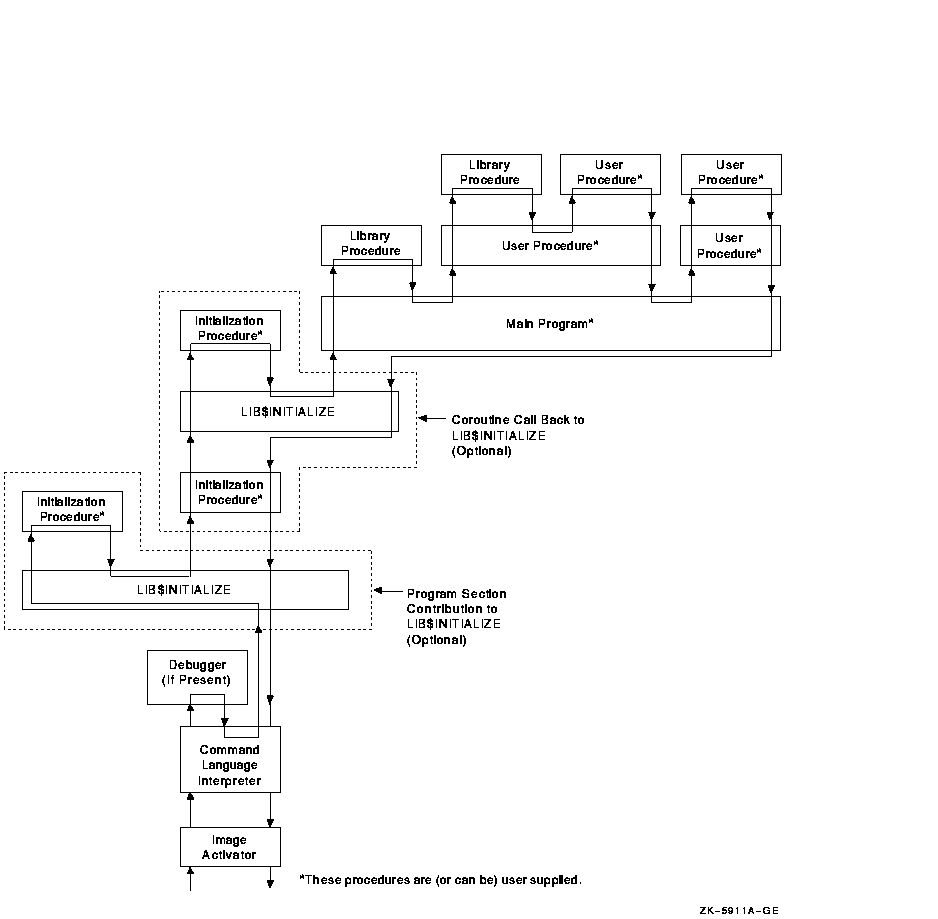

Figure 35-1 Sequence of Events During Image Initialization on VAX Systems

On Alpha and I64 systems, Figure 35-2 shows the call instruction calling the debugger, if present, to set a breakpoint at the main program's entry point.

Figure 35-2 Sequence of Events During Image Initialization on Alpha and I64 Systems

The following argument list is passed from the CLI, the debugger, or LIB$INITIALIZE to the main program. This argument list is the same for each routine activation.

(start ,cli-coroutine [,image-info])

The start argument is the address of the entry in the initialization vector that is used to perform the call.

The cli-coroutine argument is the address of a CLI coroutine to obtain command arguments. For more information, see the OpenVMS Utility Routines Manual.

The image-info argument is useful image information, such as the program name.

The debugger or LIB$INITIALIZE, or both, can call the next routine in the initialization chain using the following coding sequence:

. . . ADDL #4, 4(AP) ; Step to next initialization list entry MOVL @4(AP), R0 ; R0 = next address to call CALLG (AP), (R0) ; Call next initialization routine . . .

This coding sequence modifies the contents of an argument list entry. Thus, the sequence does not follow the OpenVMS calling standard. However, the argument list can be expanded in the future without requiring any change either to the debugger or to LIB$INITIALIZE.

35.3 Declaring Initialization Routines

Any library or user program module can declare an initialization routine. This routine is called when the image is started. The declaration is made by making a contribution to the LIB$INITIALIZE program section, which contains a list of routine entry point addresses to be called before the main program or main routine is called.

The following example declares an initialization routine by placing the routine entry address INIT_PROC in the list:

.EXTRN LIB$INITIALIZE ; Cause library initialization ; Dispatcher to be loaded .PSECT LIB$INITIALIZE, NOPIC, USR, CON, REL, GBL, NOSHR, NOEXE, RD, NOWRT, LONG .LONG INIT_PROC ; Contribute entry point address of ; initialization routine. .PSECT ...

The .EXTRN declaration links the initialization routine dispatcher, LIB$INITIALIZE, into your program's image. The reference contains a definition of the special global symbol LIB$INITIALIZE, which is the routine entry point address of the dispatcher. The linker stores the value of this special global symbol in the initialization list along with the starting address of the debugger and the main program. The GBL specification ensures that the PSECT LIB$INITIALIZE contribution is not affected by any clustering performed by the linker.

Note that moving modules and PSECTS around to affect symbol resolution may result in unintended memory placement within your image. If, for example, you add a CLUSTER statement to your linker options file, the initialization code may not run because the CLUSTER statement in the linker option file may cause the various LIB$INITIALIZE PSECTS to become separated. To remedy this possible condition, either add to your options file a CLUSTER or COLLECT statement like the following:

CLUSTER = <cluster name>,,,<module>, SYS$LIBRARY:STARLET.OLB/include = LIB$INITIALIZE COLLECT = <cluster name>, LIB$INITIALIZDZ, LIB$INITIALIZD_, LIB$INITIALIZE,LIB$INITIALIZE$

35.4 Dispatching to Initialization Routines

The LIB$INITIALIZE dispatcher calls each initialization routine in the list with the following argument list:

CALL init-proc (init-coroutine ,cli-coroutine [, image-info])

The init-coroutine argument is the address of a library coroutine to be called to effect a coroutine linkage with LIB$INITIALIZE.

The cli-coroutine is the address of a CLI coroutine used to obtain command arguments.

The image-info argument is useful image information, such as the program name.

35.5 Initialization Routine Options

An initialization routine can be used to do the following:

• Set up an exit handler by calling the Declare Exit Handler ($DCLEXH) system service, although exit handlers are generally set up by using a statically allocated first-time flag.
• Initialize statically allocated storage, although this is done preferably at image activation time using compile-time and link-time data initialization declarations or by using a first-time call flag in its statically allocated storage.
• Call the initialization dispatcher (instead of returning to it) by calling the init-coroutine argument. This achieves a coroutine link. Control returns to the initialization routine when the main program returns control. Then the initialization routine should also return control to pass back the completion code returned by the main program (to the debugger or CLI, or both).
• Establish a condition handler in the current frame before performing the preceding actions. This leaves the initialization routine condition handler on the image stack for the duration of the image execution. This occurs after the CLI sets up the catchall stack frame handler and after the debugger sets up its stack frame handler. Thus, the initialization routine handler can override either of these handlers, because it will receive signals before they do.

The following code fragment, which works on VAX, Alpha, and I64 systems, shows how an initialization routine does the following:

• Establishes a handler
• Calls the init-coroutine argument routine, so that the coroutine calls the initialization dispatcher
• Gains control after the main program returns
• Returns to the normal exit processing

.ENTRY INIT_PROC, ^M<> ; No registers used MOVAL HANDLER, (FP) ; Establish handler ... ; Perform any other initialization CALLG (AP), @INIT_CO_ROUTINE(AP) ; Continue initialization which 10$: ; then calls main program or ; routine. ... ; Return here when main program ; returns with R0 = completion RET ; Status return to normal exit ; processing with R0 = completion ; status .ENTRY HANDLER, ^M<...> ; Register mask ... ; handle condition ; could unwind to 10$ MOVL #..., R0 ; Set completion status with a ; condition value RET ; Resignal or continue depending ; on R0 being SS$_RESIGNAL or ; SS$_CONTINUE.
