The cross-reference routines are contained in a separate, shareable image capable of creating a cross-reference analysis of symbols. They accept cross-reference data, summarize it, and format it for output. Three facilities that use the cross-reference routines are the VMS Linker, the MACRO assembler, and the Librarian. They are sufficiently general, however, to be used by any native-mode utility.

Table 25-1 lists the entry points and functions of the cross-reference routines.

Table 25-1 Cross-Reference Routines

Entry Point	Function
LIB$CRF_INS_KEY	Inserts key information
LIB$CRF_INS_REF	Inserts reference information
LIB$CRF_OUTPUT	Summarizes and formats cross-reference information

The interface to the cross-reference routines is by way of a set of control blocks, format definition tables, and a set of callable entry points. Macros are provided for assembly language and BLISS initialization of the control blocks and format definition tables.

25.1 How to Use the Cross-Reference Routines

Using the cross-reference routines involves the following steps:

1. Define a table of control information, using the $CRFCTLTABLE macro.
2. Define each field of the output line, using the $CRFFIELD macro.
3. Specify the end of each set of macros that define a field in the output line, using the $CRFFIELDEND macro.
4. Provide data by calling one of the two following cross-reference entry points:
   • LIB$CRF_INS_KEY inserts an entry for the specified key in the specified symbol table.
   • LIB$CRF_INS_REF inserts a reference to a key in the specified symbol table.
5. Call LIB$CRF_OUTPUT, the cross-reference output routine, to summarize and format the data.
6. Supply a routine that the output routine calls to print each line in the output file. Because you supply this routine, you can control the number of lines per page and the header lines.

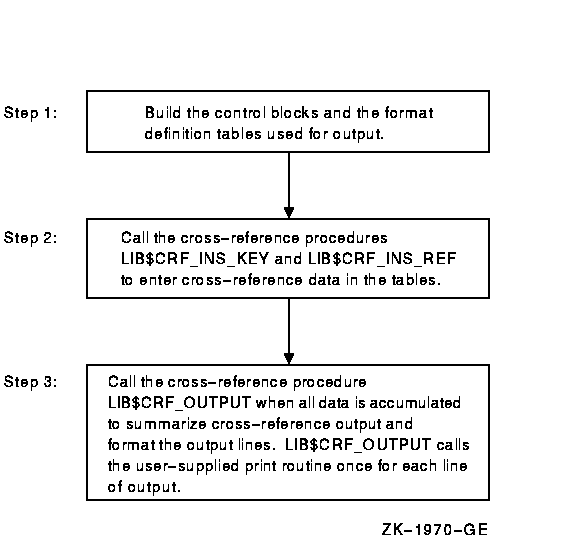

Figure 25-1 illustrates the steps required in using the cross-reference routines.

Figure 25-1 Using Cross-Reference Routines

The Run-Time Library provides three macros to initialize the data structures used by the cross-reference routines:

1. $CRFCTLTABLE defines a table of control information.
2. $CRFFIELD defines each field of the output format definition table. Multiple $CRFFIELD macro instructions can be issued in defining one particular field.
3. $CRFFIELDEND ends a set of $CRFFIELD macro instructions (a format table).

$CRFCTLTABLE initializes a cross-reference control table. Your program must issue one $CRFCTLTABLE macro for each cross-reference table you build. You can accumulate information for more than one cross-reference table at a time. For this reason, you must define a table for each set of cross-references, and include the address of that table each time you call a cross-reference routine to insert data.

The $CRFCTLTABLE macro instruction has the following format:

label: $CRFCTLTABLE keytype, output, error, memexp, key1table, key2table, val1table, val2table, ref1table, ref2table

label

The address of the control table. You must specify a control table address in all calls to the cross-reference routines.

keytype

The type of key to enter into the table. The following key types are defined:

ASCIC	Keys are counted ASCII strings, with a maximum of 255 characters (symbol name).
BIN_U32	Keys are 32-bit unsigned binary values. The binary-to-ASCII conversion is done by $FAO using the format string for the KEY1 field.
ASCIZ	Keys are zero-terminated ASCII strings. (Alpha and I64 Only)
BIN_U64	Keys are 64-bit unsigned binary values. The binary-to-ASCII conversion is done by $FAO using the format string for the KEY1 field. (Alpha and I64 Only)

output

The address of the routine that you supply to print a formatted output line. The output line is passed to the output routine by descriptor.

error

The address of an error routine to execute if the called cross-reference routine encounters an error. The error code (longword) is passed to the error routine by value. In other words, it is a copy of the constant on the stack. A value of zero indicates that no error routine is supplied.

memexp

The number of pages by which to expand region when needed. The default is 50.

key1table

The address of the field descriptor table for the KEY1 field. A value of zero indicates that the field is not to be included in the output line.

The remaining arguments provide the address of the field descriptor tables for the KEY2, VAL1, VAL2, REF1, and REF2 fields, respectively, of the output line. You can use these argument names as keywords in the macros. For example, you can use KEYTYPE as a keyword when issuing the $CRFCTLTABLE macro.

25.3 $CRFFIELD Macro

For each field in the output line, you must issue a $CRFFIELD instruction to identify the field, supply an $FAO command string to control the printing of the field, and provide flag information. See the program example and the description of $FAO (formatted ASCII output) in the OpenVMS System Services Reference Manual. The $CRFFIELD macro has the following format:

label: $CRFFIELD bit_mask, fao_string, field_width, set_clear

label

The address of the field descriptor table generated as a result of this set of $CRFFIELD macro instructions. The label field can be omitted after the first macro of the set. These addresses correspond to the field descriptor table addresses in the $CRFCTLTABLE macro.

bit_mask

A 16-bit mask. When the user enters a key or reference, the cross-reference routine stores flag information with the entry. When preparing the output line, LIB$CRF_OUTPUT performs an AND operation on the 16-bit mask in the field descriptor table with the flag stored with the entry. Any number of bit masks can be defined for a field. $CRFFIELD macro instructions are used to define multiple bit patterns for a flag field. The high-order bit is reserved to the cross-reference routines.

fao_string

The $FAO command string. LIB$CRF_OUTPUT uses this string to determine the $FAO format when formatting this field for output.

field_width

The maximum width of the output field.

set_clear

The indicator used to determine whether the bit mask is to be tested as set or clear when determining which flag to use. SET indicates test for set; CLEAR indicates test for clear.

You can use the argument names shown here as keywords in your program.

In the following Bliss example, one bit pattern is defined twice; once indicating a string that is to be printed if the pattern is set, and once indicating that spaces are to appear if the pattern is clear.

$CRFFIELD BIT_MASK=SYM$M_REL, FAO_STRING=' ',- SET_CLEAR=CLEAR, FIELD_WIDTH=2 $CRFFIELD BIT_MASK=SYM$M_REL, FAO_STRING='-R',- SET_CLEAR=SET, FIELD_WIDTH=2

If more than one set of flags is defined for a field, each FAO string must print the same number of characters; otherwise, the output is not aligned in columns.

The fields for the symbol name, symbol value, and references are always formatted using the first descriptor in the corresponding table.

25.4 $CRFFIELDEND Macro

The $CRFFIELDEND macro marks the end of a set of macros that describe one field of the output line. It is used once to end each set of field descriptors. It has the following format:

$CRFFIELDEND

25.5 Cross-Reference Output

LIB$CRF_OUTPUT can format output lines for three types of cross-reference listings:

1. A summary of symbol names and their values, as illustrated in Figure 25-2.
2. A summary of symbol names, their values, and the names of modules that refer to the symbol, as illustrated in Figure 25-3.
3. A summary of symbol names, their values, the name of the defining module, and the names of those modules that refer to the symbol, as illustrated in Figure 25-4.

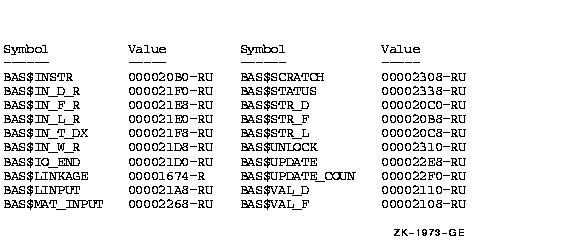

Figure 25-2 Summary of Symbol Names and Values

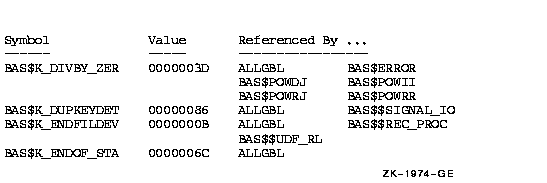

Figure 25-3 Summary of Symbol Names, Values, and Name of Referring Modules

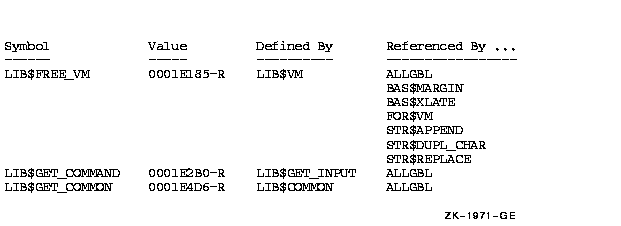

Figure 25-4 Summary Indicating Defining Module

Regardless of the format of the output, LIB$CRF_OUTPUT considers the output line to consist of the following six different field types:

1. KEY1 is the first field in the line. It contains a symbol name.
2. KEY2 is the second field in the line. It contains a set of flags (for example,--R) providing information about the symbol.
3. VAL1 is the third field in the line. It contains the value of the symbol.
4. VAL2 is the fourth field in the line. It contains a set of flags describing VAL1.
5. REF1 and REF2 fields. Within each REF1 and REF2 pair, REF1 provides a set of flags and REF2 provides the name of a module that references the symbol.

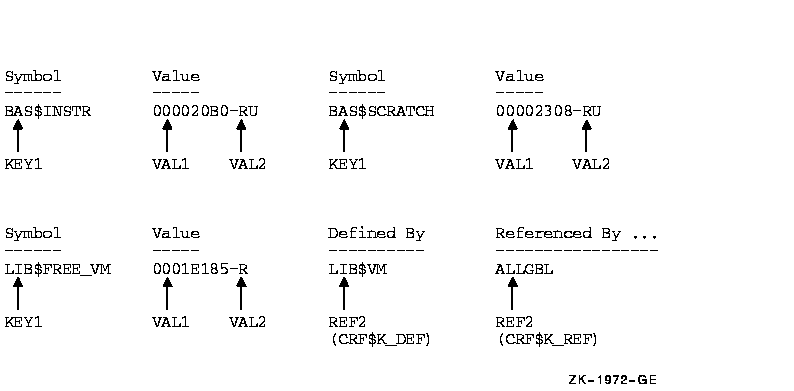

Figure 25-5 shows that any of these fields can be omitted from the output.

Figure 25-5 Output Line for LIB$CRF_OUTPUT

The VAX Linker uses the cross-reference routines to generate cross-reference listings. This section uses the linker's code as an example of using the cross-reference routines in a MACRO program.

25.6.1 Defining Control Tables

Cross-reference routines use two control tables:

• The symbol-by-name table
• The symbol-by-value table

First, the linker uses the $CRFCTLTABLE macro to set up the characteristics and fields of the symbol-by-name table. This table will list symbols by name and provide a cross-reference synopsis. The table is set up as follows:

LNK$NAMTAB: $CRFCTLTABLE KEYTYPE=ASCIC,ERROR=LNK$ERR_RTN,_ OUTPUT=LNK$MAPOUT,KEY1TABLE=LNK$KEY1,_ KEY2TABLE=LNK$KEY2,VAL1TABLE=LNK$VAL1,_ VAL2TABLE=LNK$VAL2,REF1TABLE=LNK$REF1,_ REF2TABLE=LNK$REF2

LNK$NAMTAB	Names the address of the control table
KEYTYPE=ASCIC	Specifies that the keys are counted ASCII strings (that is, symbol names)
ERROR=LNK$ERR_RTN	Indicates that LNK$ERR_RTN is the address of the routine to be executed in case of error
OUTPUT=LNK$MAPOUT	Names LNK$MAPOUT as the address of the user-supplied routine that prints the formatted table

The remaining arguments provide the addresses of the field descriptor tables.

After setting up the control tables, the linker defines each field of the cross-reference output line, using the $CRFFIELD macro. After each set of definitions for a field, it calls $CRFFIELDEND to mark the end of the field.

Note particularly the following two features of this set of definitions:

• The definition of LNK$VAL2 describes a flag to be associated with VAL1. The definition contains alternative bit patterns, depending on the bit mask. When an entry is made to the table, the entry contains flag information. Then, when LIB$CRF_OUTPUT is called to format the data, the routine checks each entry, matching the flags argument against the bit masks specified in the control table. When LIB$CRF_OUTPUT finds a match, it uses that definition to determine the format of the entry in the output table. For example, BIT_MASK=SYM$M_DEF marks an entry as the defining reference. The corresponding VAL1 entry is placed in the output table with an asterisk in its flags field.
• The FAO control strings are defined to produce an output of the maximum character size for each field. This ensures that the columns will line up correctly in the output. For example, !15AC produces the variable symbol name left-aligned and right-filled with spaces. Another example is the three sets of characters to be printed for field VAL2. Each FAO control string produces two characters, which is the maximum size of the field.

LNK$KEY1: $CRFFIELD BIT_MASK=0, FAO_STRING=\!15AC\,- SET_CLEAR=SET,FIELD_WIDTH=15 $CRFFIELDEND LNK$KEY2: $CRFFIELD BIT_MASK=0,FAO_STRING=\ \,- SET_CLEAR=SET, FIELD_WIDTH=1 $CRFFIELDEND LNK$VAL1: $CRFFIELD BIT_MASK=0,FAO_STRING=\!XL\,- SET_CLEAR=SET,FIELD_WIDTH=8 $CRFFIELDEND LNK$VAL2: $CRFFIELD BIT_MASK=0, FAO_STRING=\!2* \,- SET_CLEAR=SET,FIELD_WIDTH=2 $CRFFIELD BIT_MASK=SYM$M_REL,FAO_STRING=\-R\,- SET_CLEAR=SET,FIELD_WIDTH=2 $CRFFIELD BIT_MASK=SYM$M_DEF, FAO_STRING=\-*\,- SET_CLEAR=CLEAR,FIELD_WIDTH=2 $CRFFIELDEND LNK$REF1: $CRFFIELD BIT_MASK=0,FAO_STRING=\!6* \,- SET_CLEAR=SET,FIELD_WIDTH=6 $CRFFIELD BIT_MASK=SYM$M_WEAK,FAO_STRING=\!3* WK-\,- SET_CLEAR=SET,FIELD_WIDTH=6 $CRFFIELDEND LNK$REF2: $CRFFIELD BIT_MASK=0,FAO_STRING=\!16AC\,- SET_CLEAR=SET,FIELD_WIDTH=16 $CRFFIELDEND

After initializing the symbol-by-name table, the linker sets up a second control table. This table defines the output for a symbol-by-value synopsis. For this output, the value fields are eliminated. The symbols having this value are entered as reference indicators. None is specified as the defining reference. The control table uses the field descriptors set up previously. The following macro instructions are used:

LNK$VALTAB: $CRFCTLTABLE KEYTYPE=BIN_U32, ERROR=LNK$ERR_RTN,- OUTPUT=LNK$MAPOUT,KEY1TABLE=LNK$VAL1,- KEY2TABLE=LNK$VAL2,VAL1TABLE=0,- VAL2TABLE=0,REF1TABLE=LNK$REF1,- REF2TABLE=LNK$REF2

25.6.2 Inserting Table Information

After initializing the format data for the symbol tables, the linker enters data into the cross-reference tables by calling LIB$CRF_INS_KEY.

As the linker processes the first object module, MAPINITIAL, it encounters a symbol definition for $MAPFLG. The following is an example of a call to enter the symbol MAPINITIAL as a key in the cross-reference symbol table:

PUSHAB VALUE_FLAGS PUSHAB VALUE_ADDR PUSHAB SYMBOL_ADDR PUSHAB LNK$NAMTAB CALLS #4,G^LIB$CRF_INS_KEY

LNK$NAMTAB	Is the address of the control table
SYMBOL_ADDR	Is the address of the counted ASCII string $MAPFLG
VALUE_ADDR	Is the address of the symbol value
VALUE_FLAGS	Is the address of a word whose bits are used to select special characters to print beside the value

The linker then calls LIB$CRF_INS_REF to process the defining reference indicator:

DEF: .LONG CRF$K_DEF PUSHAB DEF PUSHAB REF_FLAGS PUSHAB REF_ADDR PUSHAB SYMBOL_ADDR PUSHAB LNK$NAMTAB CALLS #5,G^LIB$CRF_INS_REF

LNK$NAMTAB	Is the address of the control table
SYMBOL_ADDR	Is the address of the counted string $MAPFLG
REF_ADDR	Is the address of the referrer's counted ASCII string
REF_FLAGS	Is the address of a word whose bits are used to select special characters to print beside the reference

Further on in the input module, the linker encounters a global symbol reference to CS$GBL. The call to store data for this reference is as follows:

REF: .LONG CRF$K_REF PUSHAB REF PUSHAB REF_FLAGS PUSHAB REF_ADDR PUSHAB SYMBOL_ADDR PUSHAB LNK$NAMTAB CALLS #5,G^LIB$CRF_INS_REF

The arguments are similar to the previous example, except for CRF$K_REF, which indicates that this is not the defining reference.

After it has performed symbol relocation for the module being linked, the linker calls LIB$CRF_INS_REF to build a table ordered by value.

PUSHAB REF PUSHAB REF_FLAGS PUSHAB REF_ADDR PUSHAB VAL_ADDR PUSHAB LNK$VALTAB CALLS #5,G^LIB$CRF_INS_REF

LNK$VALTAB	Is the address of the control table for the symbol synopsis by value
VAL_ADDR	Is the address of the value (binary longword key)
REF_ADDR	Is the address of the symbol name having the value contained in VAL_ADDR
REF_FLAGS	Is the address of a word whose bits are used to select special characters to print beside the value
CRF$K_REF	Is the indicator that this is not a defining reference

25.6.3 Formatting Information for Output

After all input modules are processed, the linker requests the information for the map. It calls LIB$CRF_OUTPUT once for each type of output. The following MACRO example illustrates a call to list the symbols and their values. Three calls are illustrated here.

LNWID: .LONG 132 LNSP1: .LONG LINES_PAGE1 LNSOP: .LONG LINES_OTHR_PAGE SAVE: .LONG CRF$K_SAVE VAL: .LONG CRF$K_VALUES PUSHAB VAL PUSHAB SAVE PUSHAB LNSOP PUSHAB LNSP1 PUSHAB LNWID PUSHAB LNK$NAMTAB CALLS #6,G^LIB$CRF_OUTPUT

In this example, CRF$K_VALUES means that no reference indicators are to be printed, while CRF$K_SAVE means that the cross-reference table is to be saved. It is also possible to list all cross-reference data. The type of output produced by this call is shown in Section 25.5, Figure 25-2.

The following call produces such a summary and releases the storage at the same time:

LNWID: .LONG 132 LNSP1: .LONG LINES_PAGE1 LNSOP: .LONG LINES_OTHR_PAGE DELETE: .LONG CRF$K_DELETE DEFREF: .LONG CRF$K_DEF_REF PUSHAB DELETE PUSHAB DEFREF PUSHAB LNSOP PUSHAB LNSP1 PUSHAB LNWID PUSHAB LNK$NAMTAB CALLS #6,G^LIB$CRF_OUTPUT

The type of output produced by this call is shown in Section 25.5, Figure 25-4.

CRF$K_DEFS_REFS indicates that the first two reference fields are used for the defining references, and CRF$K_DELETE indicates that the table is deleted.

Another call is made to list the symbol by value synopsis, as follows:

LNWID: .LONG 132 LNSP1: .LONG LINES_PAGE1 LNSOP: .LONG LINES_OTHR_PAGE VALREF: .LONG CRF$K_VALS_REF DELETE: .LONG CRF$K_DELETE PUSHAB DELETE PUSHAB VALREF PUSHAB LNSOP PUSHAB LNSP1 PUSHAB LNWID PUSHAB LNK$VALTAB CALLS #6,G^LIB$CRF_OUTPUT

This is similar to the previous call in that it produces a complete cross-reference output by value, but it does not have the defining reference fields.

25.7 How to Link to the Cross-Reference Shareable Image

The cross-reference routines are located in a shareable image CRFSHR.EXE. This shareable image is part of the default system shareable image library, SYS$LIBRARY:IMAGELIB.OLB. For this reason, the cross-reference routines are automatically included in your image, unless you specify /NOSYSSHR in the LINK command. If you have specified /NOSSYSHR and you want to include CRFSHR.EXE, your LINK command must include the following:

SYS$LIBRARY:IMAGELIB/INCLUDE=CRFSHR
