Using SMG$READ_STRING, you can restrict the user to a certain amount of time in which to respond to a read command. If your application reads data from the terminal using SMG$READ_STRING, you can modify the timeout characteristic by specifying, in the timeout argument, the number of seconds the user has to respond. If the user fails to type a character in the allotted time, the error condition SS$_TIMEOUT (defined in $SSDEF) is returned. The following example restricts the user to 8 seconds in which to respond to a read command:

INTEGER*4 SMG$CREATE_VIRTUAL_KEYBOARD, 2 SMG$READ_STRING, 2 STATUS, 2 VKID, ! Virtual keyboard ID 2 INPUT_SIZE CHARACTER*512 INPUT INCLUDE '($SSDEF)' STATUS = SMG$CREATE_VIRTUAL_KEYBOARD (VKID, 2 'SYS$INPUT') IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) STATUS = SMG$READ_STRING (VKID, ! Keyboard ID 2 INPUT, ! Data read 2 'Prompt> ', 2 512, 2 , 2 8, 2 , 2 INPUT_SIZE) IF (.NOT. STATUS) THEN IF (STATUS .EQ. SS$_TIMEOUT) CALL NO_RESPONSE () ELSE CALL LIB$SIGNAL (%VAL (STATUS)) END IF

You can cause a QIO read operation to time out after a certain number of seconds by modifying the operation with IO$M_TIMED and by specifying the number of seconds in the P3 argument. A message broadcast to a terminal resets a timer that is set for a timed read operation (regardless of whether the operation was initiated with QIO or SMG).

Note that the timed read operations work on a character-by-character basis. To set a time limit on an input record rather than an input character, you must use the SYS$SETIMR system service. The SYS$SETIMR executes an AST routine at a specified time. The specified time is the input time limit. When the specified time is reached, the AST routine cancels any outstanding I/O on the channel that is assigned to the user's terminal.

22.5.6 Converting Lowercase to Uppercase

INTEGER*4 SMG$CREATE_VIRTUAL_KEYBOARD, 2 SMG$READ_STRING, 2 STATUS, 2 VKID, ! Virtual keyboard ID 2 INPUT_SIZE CHARACTER*512 INPUT INCLUDE '($TRMDEF)' STATUS = SMG$CREATE_VIRTUAL_KEYBOARD (VKID, ! Keyboard ID 2 'SYS$INPUT') IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) STATUS = SMG$READ_STRING (VKID, ! Keyboard ID 2 INPUT, ! Data read 2 'Prompt> ', 2 512, 2 TRM$M_TM_CVTLOW, 2 ,, 2 INPUT_SIZE) IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS))

You can also convert lowercase characters to uppercase with a QIO read operation modified by IO$M_CVTLOW (defined in $IODEF).

22.5.7 Performing Line Editing and Control Actions

Normally, the user can edit input as explained in the HP OpenVMS I/O User's Reference Manual. You can inhibit line editing on the read operation by reading from the terminal with SMG$READ_STRING and by specifying TRM$M_TM_NOFILTR in the modifiers argument. The following example shows how you can inhibit line editing:

INTEGER*4 SMG$CREATE_VIRTUAL_KEYBOARD, 2 SMG$READ_STRING, 2 STATUS, 2 VKID, ! Virtual keyboard ID 2 INPUT_SIZE CHARACTER*512 INPUT INCLUDE '($TRMDEF)' STATUS = SMG$CREATE_VIRTUAL_KEYBOARD (VKID, ! Keyboard ID 2 'SYS$INPUT') IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) STATUS = SMG$READ_STRING (VKID, ! Keyboard ID 2 INPUT, ! Data read 2 'Prompt> ', 2 512, 2 TRM$M_TM_NOFILTR, 2 ,, 2 INPUT_SIZE) IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS))

You can also inhibit line editing with a QIO read operation modified by IO$M_NOFILTR (defined in $IODEF).

22.5.8 Using Broadcasts

You can write, or broadcast, to any interactive terminal by using the SYS$BRKTHRU system service. The following example broadcasts a message to all terminals at which users are currently logged in. Use of SYS$BRKTHRU to write to a terminal allocated to a process other than your own requires the OPER privilege.

INTEGER*4 STATUS, 2 SYS$BRKTHRUW INTEGER*2 B_STATUS (4) INCLUDE '($BRKDEF)' STATUS = SYS$BRKTHRUW (, 2 'Accounting system started',, 2 %VAL (BRK$C_ALLUSERS), 2 B_STATUS,,,,,,) IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS))

22.5.8.1 Default Handling of Broadcasts

If the terminal user has taken no action to handle broadcasts, a broadcast is written to the terminal screen at the current position (after a carriage return and line feed). If a write operation is in progress, the broadcast occurs after the write ends. If a read operation is in progress, the broadcast occurs immediately; after the broadcast, any echoed user input to the aborted read operation is written to the screen (same effect as pressing Ctrl/R).

22.5.8.2 How to Create Alternate Broadcast Handlers

You can handle broadcasts to the terminal on which your program is running with SMG$SET_BROADCAST_TRAPPING. This routine uses the AST mechanism to transfer control to a subprogram of your choice each time a broadcast message is sent to the terminal; when the subprogram completes, control returns to the point in your mainline code where it was interrupted.

The SMG$SET_BROADCAST_TRAPPING routine is not an SMG$ input routine. Before invoking SMG$SET_BROADCAST_TRAPPING, you must invoke SMG$CREATE_PASTEBOARD to associate a pasteboard with the terminal. SMG$CREATE_PASTEBOARD returns a pasteboard identification number; pass that number to SMG$SET_BROADCAST_TRAPPING to identify the terminal in question. Read the contents of the broadcast with SMG$GET_BROADCAST_MESSAGE.

Example 22-15 demonstrates how you might trap a broadcast and write it at the bottom of the screen. For more information about the use of SMG$ pasteboards and virtual displays, see Section 22.4.

Example 22-15 Trapping Broadcast Messages

. . . INTEGER*4 STATUS, 2 PBID, ! Pasteboard ID 2 VDID, ! Virtual display ID 2 SMG$CREATE_PASTEBOARD, 2 SMG$SET_BROADCAST_TRAPPING 2 SMG$PASTE_VIRTUAL_DISPLAY COMMON /ID/ PBID, 2 VDID INTEGER*2 B_STATUS (4) INCLUDE '($SMGDEF)' INCLUDE '($BRKDEF)' EXTERNAL BRKTHRU_ROUTINE STATUS = SMG$CREATE_PASTEBOARD (PBID) IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) STATUS = SMG$CREATE_VIRTUAL_DISPLAY (3, ! Height 2 80, ! Width 2 VDID,, ! Display ID 2 SMG$M_REVERSE) IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) STATUS = SMG$SET_BROADCAST_TRAPPING (PBID, ! Pasteboard ID 2 BRKTHRU_ROUTINE) ! AST IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) . . .

SUBROUTINE BRKTHRU_ROUTINE () INTEGER*4 STATUS, 2 PBID, ! Pasteboard ID 2 VDID, ! Virtual display ID 2 SMG$GET_BROADCAST_MESSAGE, 2 SMG$PUT_CHARS, 2 SMG$PASTE_VIRTUAL_DISPLAY COMMON /ID/ PBID, 2 VDID CHARACTER*240 MESSAGE INTEGER*2 MESSAGE_SIZE ! Read the message STATUS = SMG$GET_BROADCAST_MESSAGE (PBID, 2 MESSAGE, 2 MESSAGE_SIZE) IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) ! Write the message to the virtual display STATUS = SMG$PUT_CHARS (VDID, 2 MESSAGE (1:MESSAGE_SIZE), 2 1, ! Line 2 1) ! Column IF (.NOT. STATUS) CALL LIB$SIGNAL (%VAL (STATUS)) ! Make the display visble by pasting it to the pasteboard STATUS = SMG$PASTE_VIRTUAL_DISPLAY (VDID, 2 PBID, 2 22, ! Row 2 1) ! Column END

This chapter describes how to use system services to perform input and output operations. It contains the following sections:

Section 23.1 describes the QIO operation.

Section 23.2 describes the use of quotas, privileges, and protection.

Section 23.3 describes device addressing modes.

Section 23.4 describes I/O function encoding.

Section 23.5 describes how to assign channels.

Section 23.6 describes how to queue I/O requests.

Section 23.7 describes how to synchronize I/O completions.

Section 23.8 describes the routine to use to wait for completion of an asynchronous event.

Section 23.9 describes executing I/O services synchronously or asynchronously.

Section 23.10 describes the completion status of an I/O operation.

Section 23.11 describes how to deassign I/O channels.

Section 23.12 presents a program example of a complete input and output operation.

Section 23.13 describes how to cancel I/O requests.

Section 23.14 describes how to use logical names and physical device names for I/O operations.

Section 23.15 describes how to use device name defaults.

Section 23.16 describes how to obtain information about physical devices.

Section 23.17 describes device allocation.

Section 23.18 describes how to mount, dismount, and initialize disk and tape volumes.

Section 23.19 describes format output strings.

Section 23.20 describes how to use mailboxes for I/O operations.

Section 23.21 provides a program example of using I/O system services.

Section 23.22 describes the Fast I/O and Fast Path features that improve I/O performance.

Examples are provided to show you how to use the I/O services for simple functions, such as terminal input and output operations. If you plan to write device-dependent I/O routines, see the HP OpenVMS I/O User's Reference Manual.

On VAX systems, if you want to write your own device driver or connect to a device interrupt vector, see the OpenVMS VAX Device Support Reference Manual. The OpenVMS VAX Device Support Reference Manual has been archived but is available on the OpenVMS Documentation CD-ROM.

Besides using I/O system services, you can use OpenVMS Record Management Services (RMS). OpenVMS RMS provides a set of routines for general-purpose, device-independent functions such as data storage, retrieval, and modification.

Unlike RMS services, I/O system services permit you to use the I/O resources of the operating system directly in a device-dependent manner. I/O services also provide some specialized functions not available in OpenVMS RMS. Using I/O services requires more programming knowledge than using OpenVMS RMS, but can result in more efficient input/output operations.

23.1 Overview of OpenVMS QIO Operations

The OpenVMS operating system provides QIO operations that perform three basic I/O functions: read, write, and set mode. The read function transfers data from a device to a user-specified buffer. The write function transfers data in the opposite direction---from a user-specified buffer to the device. For example, in a read QIO function to a terminal device, a user-specified buffer is filled with characters received from the terminal. In a write QIO function to the terminal, the data in a user-specified buffer is transferred to the terminal where it is displayed.

The set mode QIO function is used to control or describe the characteristics and operation of a device. For example, a set mode QIO function to a line printer can specify either uppercase or lowercase character format. Not all QIO functions are applicable to all types of devices. The line printer, for example, cannot perform a read QIO function.

23.2 Quotas, Privileges, and Protection

To preserve the integrity of the operating system, the I/O operations are performed under the constraints of quotas, privileges, and protection.

Quotas limit the number and type of I/O operations that a process can perform concurrently and the total size of outstanding transfers. They ensure that all users have an equitable share of system resources and usage.

Privileges are granted to a user to allow the performance of certain I/O-related operations, for example, creating a mailbox and performing logical I/O to a file-structured device. Restrictions on user privileges protect the integrity and performance of both the operating system and the services provided to other users.

Protection controls access to files and devices. Device protection is provided in much the same way as file protection: shareable and nonshareable devices are protected by protection masks.

The Set Resource Wait Mode (SYS$SETRWM) system service allows a process to select either of two modes when an attempt to exceed a quota occurs. In the enabled (default) mode, the process waits until the required resource is available before continuing. In the disabled mode, the process is notified immediately by a system service status return that an attempt to exceed a quota has occurred. Waiting for resources is transparent to the process when resource wait mode is enabled; the process takes no explicit action when a wait is necessary.

The different types of I/O-related quotas, privilege, and protection are described in the following sections.

23.2.1 Buffered I/O Quota

The buffered I/O limit quota (BIOLM) specifies the maximum number of concurrent buffered I/O operations that can be active in a process. In a buffered I/O operation, the user's data is buffered in system dynamic memory. The driver deals with the system buffer and not the user buffer. Buffered I/O is used for terminal, line printer, card reader, network, mailbox, and console medium transfers and file system operations. For a buffered I/O operation, the system does not have to lock the user's buffer in memory.

The system manager, or the person who creates the process, establishes the buffered I/O quota value in the user authorization file. If you use the Set Resource Wait Mode (SYS$SETRWM) system service to enable resource wait mode for the process, the process enters resource wait mode if it attempts to exceed its direct I/O quota.

23.2.2 Buffered I/O Byte Count Quota

The buffered I/O byte count quota (BYTLM) specifies the maximum amount of buffer space that can be consumed from system dynamic memory for buffering I/O requests. All buffered I/O requests require system dynamic memory in which the actual I/O operation takes place.

The system manager, or the person who creates the process, establishes the buffered I/O byte count quota in the user authorization file. If you use the SYS$SETRWM system service to enable resource wait mode for the process, the process enters resource wait mode if it attempts to exceed its direct I/O quota.

23.2.3 Direct I/O Quota

The direct I/O limit quota (DIOLM) specifies the maximum number of concurrent direct (unbuffered) I/O operations that a process can have active. In a direct I/O operation, data is moved directly to or from the user buffer. Direct I/O is used for disk, magnetic tape, most direct memory access (DMA) real-time devices, and nonnetwork transfers, such as DMC11/DMR11 write transfers. For direct I/O, the user's buffer must be locked in memory during the transfer.

The system manager, or the person who creates the process, establishes the direct I/O quota value in the user authorization file. If you use the SYS$SETRWM system service to enable resource wait mode for the process, the process enters resource wait mode if it attempts to exceed its direct I/O quota.

23.2.4 AST Quota

The AST quota specifies the maximum number of outstanding asynchronous system traps that a process can have. The system manager, or the person who creates the process, establishes the quota value in the user authorization file. There is never an implied wait for that resource.

23.2.5 Physical I/O Privilege

Physical I/O privilege (PHY_IO) allows a process to perform physical I/O operations on a device. Physical I/O privilege also allows a process to perform logical I/O operations on a device.

23.2.6 Logical I/O Privilege

Logical I/O privilege (LOG_IO) allows a process to perform logical I/O operations on a device. A process can also perform physical operations on a device if the process has logical I/O privilege, the volume is mounted foreign, and the volume protection mask allows access to the device. (A foreign volume is one volume that contains no standard file structure understood by any of the operating system software.) See Section 23.3.2 for further information about logical I/O privilege.

23.2.7 Mount Privilege

Mount privilege (MOUNT) allows a process to use the IO$_MOUNT function to perform mount operations on disk and magnetic tape devices. The IO$_MOUNT function is used in ancillary control processs (ACP) interface operations.

23.2.8 Share Privilege

Share privilege (SHARE) allows a process to use the SYS$ASSIGN system service to override another process's exclusive access request on the specified device.

Performing any I/O operations to a device driver coded to expect exclusive access---performing I/O to any device driver not explicitly coded to expect shared multiple-process access---can result in unusual and unexpected device and application behaviour, and can result in problems of device ownership, and failures during the device driver last channel deassign operation.

Using SHARE to override access is useful for a few specific situations, such as user-written device driver debugging and user-written device driver diagnostic tools. General use of SHARE is not recommended.

23.2.9 Volume Protection

Volume protection protects the integrity of mailboxes and both foreign and Files-11 On-Disk Structure Level 2 structured volumes. Volume protection for a foreign volume is established when the volume is mounted. Volume protection for a Files-11 structured volume is established when the volume is initialized. (If the process mounting the volume has the override volume protection privilege, VOLPRO, protection can be overridden when the volume is mounted.)

The SYS$CREMBX system service protection mask argument establishes mailbox protection.

Set Protection QIO requests allow you to set volume protection on a mailbox. You must either be the owner of the mailbox or have the BYPASS privilege.

Protection for structured volumes and mailboxes is provided by a volume protection mask that contains four 4-bit fields. These fields correspond to the four classes of user permitted to access the volume. (User classes are based on the volume owner's UIC.)

The 4-bit fields are interpreted differently for volumes that are mounted as structured (that is, volumes serviced by an ACP), volumes that are mounted as foreign, and mailboxes (both temporary and permanent).

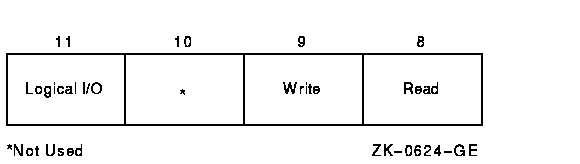

Figure 23-1 shows the 4-bit protection fields for mailboxes. Usually, volume protection is meaningful only for read and write operations.

Figure 23-1 Mailbox Protection Fields

Device protection protects the allocation of nonshareable devices, such as terminals and card readers.

Protection is provided by a device protection mask similar to that of volume protection. The difference is that only the bit corresponding to read access is checked, and that bit determines whether the process can allocate or assign a channel to the device.

You establish device protection with the DCL command SET PROTECTION/DEVICE. This command sets both the protection mask and the device owner UIC.

23.2.11 System Privilege

System UIC privilege (SYSPRV) allows a process to be eligible for the volume or device protection specified for the system protection class, even if the process does not have a UIC in one of the system groups.

23.2.12 Bypass Privilege

Bypass privilege (BYPASS) allows a process to bypass volume and device protection completely.

23.3 Physical, Logical, and Virtual I/O

I/O data transfers can occur in any one of three device addressing modes: physical, logical, or virtual. Any process with device access allowed by the volume protection mask can perform logical I/O on a device that is mounted foreign; physical I/O requires privileges. Virtual I/O does not require privileges; however, intervention by an ACP to control user access might be necessary if the device is under ACP control. (ACP functions are described in the HP OpenVMS I/O User's Reference Manual.)

23.3.1 Physical I/O Operations

In physical I/O operations, data is read from and written to the actual, physically addressable units accepted by the hardware (for example, sectors on a disk or binary characters on a terminal in the PASSALL mode). This mode allows direct access to all device-level I/O operations.

Physical I/O requires that one of the following conditions be met:

• The issuing process has physical I/O privilege (PHY_IO).
• The issuing process has all of the following characteristics:
  • The issuing process has logical I/O privilege (LOG_IO).
  • The device is mounted foreign.
  • The volume protection mask allows physical access to the device.

If neither of these conditions is met, the physical I/O operation is rejected by the SYS$QIO system service, which returns a condition value of SS$_NOPRIV (no privilege). Figure 23-2 illustrates the physical I/O access checks in greater detail.

The inhibit error-logging function modifier (IO$M_INHERLOG) can be specified for all physical I/O functions. The IO$M_INHERLOG function modifier inhibits the logging of any error that occurs during the I/O operation.
