This chapter describes the use of run-time routines (RTLs) to allocate and deallocate pages. It contains the following sections:

Section 14.1 describes the allocating and freeing of pages.

Section 14.2 describes the interactions with other RTL routines.

Section 14.3 describes the interactions with system services.

Section 14.4 describes how to use zones.

Section 14.5 describes the mechanism for allocating and freeing blocks of memory.

Section 14.6 describes the RTL algorithms used to allocate and free memory.

Section 14.7 describes how to create and manage user-defined zones.

Section 14.8 describes the methods of debugging programs that use virtual memory zones.

The run-time library page management routines LIB$GET_VM_PAGE and LIB$FREE_VM_PAGE provide a flexible mechanism for allocating and freeing pages (pagelets on Alpha and I64 systems) of memory. In general, modular routines should use these routines rather than direct system service calls to manage memory. The page or pagelet management routines maintain a processwide pool of free pages or pagelets and automatically reuse free pages or pagelets. If your program calls system services directly, it must do the bookkeeping to keep track of free memory.

LIB$GET_VM_PAGE and LIB$FREE_VM_PAGE are fully reentrant. They can be called by code running at AST level or in an Ada multitasking environment.

Memory space allocated by LIB$GET_VM_PAGE are created with user-mode read-write access, even if the call to LIB$GET_VM_PAGE is made from a more privileged access mode.

LIB$GET_VM_PAGE and LIB$FREE_VM_PAGE are designed for request sizes ranging from one page to a few hundred pages. If you are using very large request sizes of contiguous space in a single request, the bitmap allocation method that is used may cause fragmentation of your virtual address space because allocated pages are contiguous. For very large request sizes, use direct calls to SYS$EXPREG and do not use LIB$GET_VM_PAGE.

The format for LIB$GET_VM_PAGE is as follows:

LIB$GET_VM_PAGE (number-of-pages ,base-address)

With this routine, you need to specify only the number of pages you need in the number-of-pages argument. The routine returns the base address of the contiguous block of pages that have been allocated in the base-address argument.

The rules for using LIB$GET_VM_PAGE and LIB$FREE_VM_PAGE are as follows:

• Any memory you free by calling LIB$FREE_VM_PAGE must have been allocated by a previous call to LIB$GET_VM_PAGE. You cannot allocate memory by calling either SYS$EXPREG or SYS$CRETVA and then free it using LIB$FREE_VM_PAGE.
• All memory allocated by LIB$GET_VM_PAGE is page aligned; that is, the low-order 9 bits of the address are all zero. All memory freed by LIB$FREE_VM_PAGE must also be page aligned; an error status is returned if you attempt to free a block of memory that is not page aligned.
• You can free a smaller group of pages than you allocated. That is, if you allocated a group of 4 contiguous pages by a single call to LIB$GET_VM_PAGE, you can free the memory by using several calls to LIB$FREE_VM_PAGE; for example, free 1 page, 2 pages, and 1 page.
• You can combine contiguous groups of pages that were allocated by several calls to LIB$GET_VM_PAGE into one group of pages that are freed by a single call to LIB$FREE_VM_PAGE. Before doing this, however, you must compare the addresses to ensure that the pages you are combining are indeed contiguous. Of course, you must ensure that a routine frees only pages that it has previously allocated and still owns.
• Be especially careful that you do not attempt to free a set of pages twice. You might free a set of pages in one routine and reallocate those same pages from another routine. If the first routine then deallocates those pages a second time, any information that the second routine stored in them is lost. Because the pages are still allocated to your program (even though to a different routine), this type of programming mistake does not generate an error.
• The contents of memory allocated by LIB$GET_VM_PAGE are unpredictable. Your program must assign values to all locations that it uses.
• You should try to minimize the number of request sizes your program uses to avoid fragmentation of the free page pool. This concept is shown in Figure 14-1.

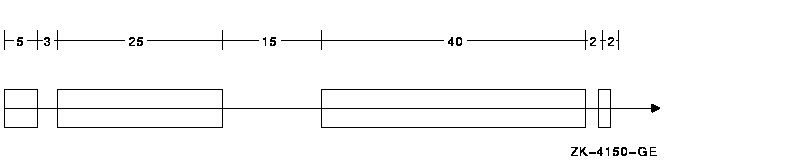

  Figure 14-1 Memory Fragmentation

  ---


  The straight line running across Figure 14-1 represents the memory allocated to your program. The blocks represent memory that has already been allocated. At this point, if you request 16 pages, memory will have to be allocated at the far right end of the memory line shown in this figure, even though there are 20 free pages before that point. You cannot use 16 of these 20 pages because the 20 free pages are "fragmented" into groups of 15, 3, and 2 pages.
  Fragmentation is discussed further in Section 14.4.1.

Chapter 13 and Chapter 12 describe a three-level hierarchy of memory allocation routines consisting of the following:

1. Memory management system services
2. Run-time library page management routines LIB$GET_VM_PAGE and LIB$FREE_VM_PAGE
3. Run-time library heap management routines LIB$GET_VM and LIB$FREE_VM

The run-time library and various programming languages provide another level of more specialized allocation routines.

• The run-time library dynamic string package provides a set of routines for allocating and freeing dynamic strings. The set of routines includes the following:

  LIB$SGET1_DD, LIB$SFREE1_DD
  LIB$SFREEN_DD
  STR$GET1_DX, STR$FREE1_DX

• HP Ada provides allocators and the UNCHECKED_DEALLOCATION package for allocating and freeing memory.
• HP Pascal provides the NEW and DISPOSE routines for allocating and freeing memory.
• HP C provides malloc and free routines for allocating and freeing memory.

A program containing routines written in several operating system languages may use a number of these facilities at the same time. This does not cause any problems or impose any restrictions on the user because all of these are layered on the run-time library heap management routines.

The run-time library page management and heap management routines are implemented as layers built on the memory management system services. In general, modular routines should use the run-time library routines rather than directly call memory management system services. However, in some situations you must use both. This section describes relationships between the run-time library and memory management. See the HP OpenVMS System Services Reference Manual for descriptions of the memory management system services.

You can use the Expand Region (SYS$EXPREG) system service to create pages of virtual memory in the program region (P0 space) for your process. The operating system keeps track of the first free page address at the end of P0 space, and it updates this free page address whenever you call SYS$EXPREG or SYS$CRETVA. The LIB$GET_VM_PAGE routine calls SYS$EXPREG to create pages, so there is no conflicting address assignments when you call SYS$EXPREG directly.

Avoid using the Create Virtual Address Space (SYS$CRETVA) system service, because you must specify the range of virtual addresses when it is called. If the address range you specify contains pages that already exist, SYS$CRETVA deletes those pages and recreates them as demand-zero pages. You may have difficulty avoiding conflicting address assignments if you use run-time library routines and SYS$CRETVA.

You must not use the Contract Region (SYS$CNTREG) system service, because other routines or the OpenVMS Record Management Services (RMS) may have allocated pages at the end of the program region.

You can change the protection on pages your program has allocated by calling the Set Protection (SYS$SETPRT) system service. All pages allocated by LIB$GET_VM_PAGE have user-mode read/write access. If you change protection on pages allocated by LIB$GET_VM_PAGE, you must reset the protection to user-mode read/write before calling LIB$FREE_VM_PAGE to free the pages.

You can use the Create and Map Section (SYS$CRMPSC) system service to map a file into your virtual address space. To map a file, you provide a range of virtual addresses for the file. One way to do this is to specify the Expand Region option (SEC$M_EXPREG) when you call SYS$CRMPSC. This method assigns addresses at the end of P0 space, similar to the SYS$EXPREG system service. Alternatively, you can provide a specific range of virtual addresses when you call SYS$CRMPSC; this is similar to allocating pages by calling SYS$CRETVA. If you assign a specific range of addresses, you must avoid conflicts with other routines. One way to do this is to allocate memory by calling LIB$GET_VM_PAGE and then use that memory to map the file.

The complete sequence of steps is as follows:

1. Call LIB$GET_VM_PAGE to allocate a contiguous group of (n+1) pages. The first n pages are used to map the file; the last page serves as a guard page.
2. Call SYS$CRMPSC using the first n pages to map the file into your process address space.
3. Process the file.
4. Call SYS$DELTVA to delete the first n pages and unmap the file.
5. Call SYS$CRETVA to recreate the n pages of virtual address space as demand-zero pages.
6. Call LIB$FREE_VM_PAGE to free (n+1) pages of memory and return them to the processwide page pool.

This sequence is satisfactory when mapping small files of a few hundred pages, but it has severe limitations when mapping very large files. As discussed in Section 14.1, you should not use LIB$GET_VM_PAGE to allocate very large groups of contiguous pages in a single request. In addition, when you allocate memory by calling LIB$GET_VM_PAGE (and thus SYS$EXPREG), the pages are charged against your process page file quota. Your page file quota is not charged if you call SYS$CRMPSC with the SEC$M_EXPREG option.

You can process very large files using SYS$CRMPSC by first providing a pool of pages that is sufficient for your program and then by using SYS$CRMPSC and SYS$DELTVA to map and unmap the file. Use LIB$SHOW_VM to obtain an estimate of how much dynamically allocated memory your program requires; round this number up and allow for increased memory usage in the future. You can then use the memory estimate as follows:

1. At the beginning of your program, include code to call LIB$GET_VM_PAGE and allocate the estimated number of pages. You should not request a large number of pages in one call to LIB$GET_VM_PAGE, because this would require contiguous allocation of the pages.
2. Call LIB$FREE_VM_PAGE to free all the pages allocated in step 1; this establishes a pool of free pages for your program.
3. Open files that your program needs; note that RMS may allocate buffers in P0 space.
4. Call SYS$CRMPSC specifying SEC$M_EXPREG to map the file into your process address space at the end of P0 space.
5. Process the file.
6. Call SYS$DELTVA, specifying the address range to release the file. If additional pages were not created after you mapped the file, SYS$DELTVA contracts your address space. Your program can repeat the process of mapping a file without continually expanding its address space.

The run-time library heap management routines LIB$GET_VM and LIB$FREE_VM are based on the concept of zones. A zone is a logically independent memory pool or subheap that you can control as one unit. A program may use several zones to structure its heap memory management. You might use a zone to:

• Store short-lived data structures that you can subsequently delete all at once
• Store a program that does not reference a wide range of addresses
• Specify a memory allocation algorithm specific to your program
• Specify attributes, like block size and alignment, specific to your program

You create a zone with specified attributes by calling the routine LIB$CREATE_VM_ZONE. LIB$CREATE_VM_ZONE returns a zone identifier value that you can use in subsequent calls to the routines LIB$GET_VM and LIB$FREE_VM. When you no longer need the zone, you can delete the zone and free all the memory it controls by a single call to LIB$DELETE_VM_ZONE.

The format for this routine is as follows:
LIB$CREATE_VM_ZONE zone_id [,algorithm] [,algorithm_arg] [,flags] [,extend_size] [,initial_size] [,block_size] [,alignment] [,page_limit] [,smallest-block-size] [,zone-name] [,get-page] [,free-page]

For more information about LIB$CREATE_VM_ZONE, refer to the HP OpenVMS RTL Library (LIB$) Manual.

Allocating Address Space

Use the algorithm argument to specify how much space should be allocated---as a linked list of free blocks, as a set of lookaside list indexes by request size, as a set of lookaside lists for some block sizes, or as a single queue of free blocks.

Allocating Pages Within the Zone

Use the initial_size argument to allocate a specified number of pages from the zone when it is created. After zone creation, you can use LIB$GET_VM to allocate space.

Specifying the Block Size

Use the block_size argument to specify the block size in bytes.

Specifying Block Alignment

Use the alignment argument to specify the alignment for each block allocated in bytes.

Once a zone has been created and used, use LIB$DELETE_VM_ZONE to delete the zone and return the pages allocated to the processwide page pool. LIB$RESET_VM_ZONE frees pages for subsequent allocation but does not delete the zone or return the pages to the processwide page pool. Use LIB$SHOW_VM_ZONE to get information about a specific zone.

If you want a program to deal with each VM zone created during the invocation, including those created outside of the program, you can call LIB$FIND_VM_ZONE. At each call, LIB$FIND_VM_ZONE scans the heap management database and returns the zone identifier of the next valid zone.

LIB$SHOW_VM_ZONE returns formatted information about a specified zone, detailing such information as the zone's name, characteristics, and areas, and then passes the information to the specified or default action routine. LIB$VERIFY_VM_ZONE verifies the zone header and scans all of the queues and lists maintained in the zone header.

If you call LIB$GET_VM to allocate memory from a zone and the zone has no free memory to satisfy the request, LIB$GET_VM calls LIB$GET_VM_PAGE to allocate a block of contiguous pages for the zone. Each such block of contiguous pages is called an area. You control the number of pages in an area by specifying the area extension size attribute when you create the zone.

The systematic use of zones provides the following benefits:

• Structuring heap memory management
  Data structures in your program may have different life spans or dynamic scopes. Some structures may continue to grow during the entire execution of your program, while others exist for a very short time and are then discarded by the program. You can create a separate zone in which you allocate a particular type of short-lived structure. When the program no longer needs any of those structures, you can delete all of them in a single operation by calling LIB$DELETE_VM_ZONE.
• Program locality
  Program locality is a characteristic of a program that indicates the distance between the references and virtual memory over a period of time. A program with a high degree of program locality does not refer to many widely scattered virtual addresses in a short period of time. Maintaining a high degree of program locality reduces the number of page faults and improves program performance.
  It is important to minimize the number of page faults to obtain best performance in a virtual memory system such as VAX, Alpha, and I64 systems. For example, if your program creates and searches a symbol table, you can reduce the number of page faults incurred by the search operation by using as few pages as possible to hold all the symbol table entries. If you allocate symbol table entries and other items unrelated to the symbol table in the same zone, each page of the symbol table contains both symbol table entries and other items. Because of the extra unrelated entries, the symbol table takes up more pages than it actually needs. A search of the symbol table then accesses more pages, and performance is lower as a result. You may be able to reduce the number of page faults by creating a separate symbol table zone so that pages that contain symbol table entries do not contain any unrelated items.
• Specialized allocation algorithms
  No single memory allocation algorithm is ideal for all applications. Section 14.6 describes the run-time library memory allocation algorithms and their performance characteristics so that you can select an appropriate algorithm for each zone that you create.
• Performance tuning
  You can specify a number of attributes that affect performance when you create a zone. The allocation algorithm you select can have a significant effect on performance. By specifying the allocation block size, you can improve performance and reduce fragmentation within the zone at the cost of some extra memory. You can also use boundary tags to improve the speed of LIB$FREE_VM at the cost of some extra memory. Boundary tags are further discussed in Section 14.4.1.

You can specify a number of zone attributes when you call LIB$CREATE_VM_ZONE to create the zone. The attributes that you specify are permanent; that is, you cannot change the attribute values. They remain constant until you delete the zone. Each zone that you create can have a different set of attribute values. Thus, you can tailor each zone to optimize program locality, execution time, and memory usage.

This section describes each of the zone attributes, suggested values for the attribute, and the effects of the attribute on execution time and memory usage. If you do not specify a complete set of attribute values, LIB$CREATE_VM_ZONE provides defaults for many of the attributes. More detailed information about argument names and the encoding of arguments is given in the description of LIB$CREATE_VM_ZONE in the HP OpenVMS RTL Library (LIB$) Manual.

The zone attributes are as follows:

• Allocation algorithms
  The run-time library heap management routines provide four algorithms to allocate and free memory and to manage blocks of free memory. The algorithms are listed here. (See Section 14.6 for more details.)
  • The First Fit algorithm (LIB$K_VM_FIRST_FIT) maintains a linked list of free blocks, sorted in order of increasing memory address.
  • The Quick Fit algorithm (LIB$K_VM_QUICK_FIT) maintains a set of lookaside lists indexed by request size for request sizes in a specified range. For request sizes that are not in the specified range, a First Fit list of free blocks is maintained by the heap management routines.
  • The Frequent Sizes algorithm (LIB$K_VM_FREQ_SIZES) is similar to Quick Fit in that it maintains a set of lookaside lists for some block sizes. You specify the number of lists when you create the zone; the sizes associated with those lists are determined by the actual sizes of blocks that are freed.
  • The Fixed Size algorithm (LIB$K_VM_FIXED) maintains a single queue of free blocks.
• Boundary-tagged blocks
  You can specify the use of boundary tags (LIB$M_VM_BOUNDARY_TAGS) with any of the algorithms that handle variable-sized blocks. The algorithms that handle variable-sized blocks are First Fit, Quick Fit, and Frequent Sizes.
  If you specify boundary tags, LIB$GET_VM appends two additional longwords to each block that you allocate. LIB$FREE_VM uses these tags to speed up the process of merging adjacent free blocks on the First Fit free list. Using the standard First Fit insertion and merge, the execution time and number of page faults to free a block are proportional to the number of items on the list; freeing n blocks takes time proportional to n squared. When boundary tags are used, LIB$FREE_VM does not have to keep the free list in sorted order. This reduces the time and the number of page faults for freeing one block to a constant value that is independent of the number of free blocks. By using boundary tags, you can improve execution time at the cost of some additional memory for the tags.
  The use of boundary tags can have a significant effect on execution time if all of the following three conditions are present:
  • You are using the First Fit algorithm.
  • There are many calls to LIB$FREE_VM.
  • The free list is long.

  Boundary tags do not improve execution time if you are using Quick Fit or Frequent Sizes and if all the blocks being freed use one of the lookaside lists. Merging or searching is not done for free blocks on a lookaside list.
  The boundary tags specify the length of each block that is allocated, so you do not need to specify the length of a tagged block when you free it. This reduces the bookkeeping that your program must perform. Figure 14-2 shows the placement of boundary tags.

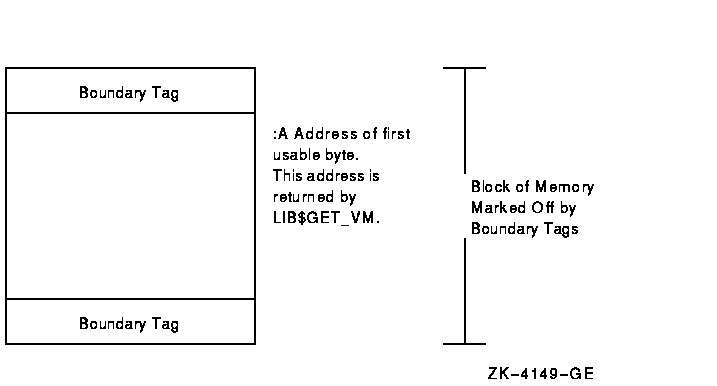

  Figure 14-2 Boundary Tags

  ---


  Boundary tags are not visible to the calling program. The request size you specify when calling LIB$GET_VM is the number of usable bytes your program needs. The address returned by LIB$GET_VM is the address of the first usable byte of the block, and this same address is used when you call LIB$FREE_VM.
• Area extension size
  Pages of memory are allocated to a zone in contiguous groups called areas. By specifying area extension parameters for the zone, you can tailor the zone to achieve a satisfactory balance between locality, memory usage, and execution time for allocating pages. If you specify a large area size, you improve locality for blocks in the zone, but you may waste a large amount of virtual memory. Pages can be allocated to an area of a zone, but the memory might never be used to satisfy a LIB$GET_VM allocation request. If you specify a small area extension size, you reduce the number of pages used, but you may reduce locality and you increase the amount of overhead for area control blocks.
  You can specify two area extension size values: an initial size and an extend size. If you specify an initial area size, that number of pages is allocated to the zone when you create the zone. If you do not specify an initial size, no pages are allocated until the first call to LIB$GET_VM that references the zone. When an allocation request cannot be satisfied by blocks from the free list or from memory in any of the areas owned by the zone, a new area is added to the zone. The size of this area is the maximum of the area extend size and the current request size. The extend size does not limit the size of blocks you can allocate. If you do not specify extend size when you create the zone, a default of 16 pages is used.
  Choose a few area extension sizes, and use them throughout your program. It is also desirable to choose extension sizes that are multiples of each other. Memory for areas is allocated by calling LIB$GET_VM_PAGE. You should choose the area extension sizes in order to minimize fragmentation. Software supplied by HP uses extension sizes that are a power of 2.
  Also consider the overhead for area control blocks when choosing the area extension parameters. Each area control block is 64 bytes long. Table 14-1 shows the overhead for various extension sizes.

  Table 14-1 Overhead for Area Control Blocks

  Area Size (Pages)	Overhead Percentage
  1	12.5%
  2	6.3%
  4	3.1%
  16	0.8%
  128	0.1%


  You can also control the way in which zones are extended by using the LIB$M_VM_EXTEND_AREA attribute. This attribute specifies that when new pages are allocated for a zone, they should be appended to an existing area if the pages are adjacent to an existing area.

• Block size
  The block size attribute specifies the number of bytes in the basic allocation quantum for the zone.
  All allocation requests are rounded up to a multiple of the block size.
  The block size must be a power of 2 in the range of 8 to 512. Table 14-2 lists the possible block sizes.

  Table 14-2 Possible Values for the Block Size Attribute

  Block Size (Power of 2)	Actual Block Size
  2 3	8
  2 4	16
  2 5	32
  2 6	64
  2 7	128
  2 8	256
  2 9	512


  By adjusting the block size, you can control the effects of internal fragmentation and external fragmentation. Internal fragmentation occurs when the request size is rounded up and more bytes are allocated than are required to satisfy the request. External fragmentation occurs when there are many small blocks on the free list, but none of them is large enough to satisfy an allocation request.
  If you do not specify a value for block size, a default of 8 bytes is used.

• Alignment
  The alignment attribute specifies the required address boundary alignment for each block allocated. The alignment value must be a power of 2 in the range of 4 to 512.
  The block size and alignment values are closely related. If you are not using boundary-tagged blocks, the larger value of block size and alignment controls both the block size and alignment. If you are using boundary-tagged blocks, you can minimize the overhead for the boundary tags by specifying a block size of 8 and an alignment of 4 (longword alignment).
  On VAX systems, note that the VAX interlocked queue instructions require quadword alignment, so you should not specify longword alignment for blocks that will be inserted on an interlocked queue.
  If you do not specify an alignment value, a default of 8 is used (alignment on a quadword boundary). For I64, the default is 16 (alignment on an octaword boundary).
• Page limit
  You can specify the maximum number of pages that can be allocated to the zone. If you do not specify a limit, the only limit is the virtual address limit for the total process imposed by process quotas and system parameters.
• Fill on allocate
  If you do not specify the allocation fill attribute, LIB$GET_VM does not initialize the contents of the blocks of memory that it supplies. The contents of the memory are unpredictable, and you must assign a value to each location your program uses.
  In many applications, it is convenient to initialize every byte of dynamically allocated memory to the value 0. You can request that LIB$GET_VM do this initialization by specifying the allocation fill attribute LIB$M_VM_GET_FILL0 when you create the zone.
  If your program does not use the allocation fill attribute, it may be very difficult to locate bugs where the program does not properly initialize dynamically allocated memory. As a debugging aid, you can request that LIB$GET_VM initialize every byte to FF (hexadecimal) by specifying the allocation fill attribute LIB$M_VM_GET_FILL1 when you create the zone.
• Fill on free
  In complex programs using heap storage, it can be very difficult to locate bugs where the program frees a block of memory but continues to make references to that block of memory. As a debugging aid, you can request that LIB$FREE_VM write bytes containing 0 or FF (hexadecimal) into each block of memory when it is freed; specify one of the attributes LIB$M_VM_FREE_FILL0 or LIB$M_VM_FREE_FILL1.
