Chapter 11
Support for 64-Bit Addressing (Alpha and I64 Only)

This chapter describes the following features that support 64-bit addressing:

System services, descriptors, and item lists
RMS interfaces
File systems
OpenVMS Alpha and OpenVMS I64 64-bit API guidelines
OpenVMS Alpha and OpenVMS I64 tools and utilities
Language and pointers
HP C RTLs

For information about MACRO-32 programming support for 64-bit addressing, see HP OpenVMS MACRO Compiler Porting and User's Guide.

11.1 System Services Support for 64-Bit Addressing

This chapter describes the OpenVMS Alpha and OpenVMS I64 system services that support 64-bit addressing and VLM. It explains the changes made to 32-bit services to support 64-bit addresses, and it lists the 64-bit system services.

To see examples of system services that support 64-bit addressing in an application program, refer to Appendix B. For complete information about the OpenVMS system services listed in this chapter, see the HP OpenVMS System Services Reference Manual: A--GETUAI and HP OpenVMS System Services Reference Manual: GETUTC--Z.

11.1.1 System Services Terminology

The following system services definitions are used throughout this guide.

32-bit system service
A 32-bit system service is a system service that only supports 32-bit addresses on any of its arguments that specify addresses. If passed by value, on OpenVMS Alpha and OpenVMS I64 a 32-bit virtual address is actually a 64-bit address that is sign-extended from 32 bits.
64-bit friendly interface
A 64-bit friendly interface is an interface that can be called with all 64-bit addresses. A 32-bit system service interface is 64-bit friendly if it needs no modification to handle 64-bit addresses. The internal code that implements the system service might need modification, but the system service interface will not.
Examples of 64-bit friendly system services are $QIO, $SYNCH, $ENQ, and $FAO.
Examples of routines with 64-bit unfriendly interfaces are most of the memory management system services, such as $CRETVA, $DELTVA, and $CRMPSC. The INADR and RETADR argument arrays do not promote easily to hold 64-bit addresses.
64-bit system service
A 64-bit system service is a system service that is defined to accept all address arguments as 64-bit addresses (not necessarily 32-bit, sign-extended values). Also, a 64-bit system service uses the entire 64 bits of all virtual addresses passed to it.
The 64-bit system services include the _64 suffix for services that accept 64-bit addresses by reference. For promoted services, this distinguishes the 64-bit capable version from its 32-bit counterpart. For new services, it is a visible reminder that a 64-bit wide address cell will be read/written. This is also used when a structure is passed that contains an embedded 64-bit address, if the structure is not self-identifying as a 64-bit structure. Hence, a routine name need not include "_64" simply because it receives a 64-bit descriptor. Remember that passing an arbitrary value by reference does not mean the suffix is required; passing a 64-bit address by reference does.

11.1.2 Comparison of 32-Bit and 64-Bit Descriptors

This section describes 32-bit and 64-bit descriptors. Descriptors are a mechanism for passing parameters where the address of a descriptor is an entry in the argument list. Descriptors contain the address of the parameter, data type, size, and any additional information needed to describe the passed data.

There are two forms of descriptors:

One form for use with 32-bit addresses
One form for use with 64-bit addresses

The two forms are compatible, because they can be identified dynamically at run time, and except for the size and placement of fields, 32-bit and 64-bit descriptors are identical in content and interpretation.

OpenVMS VAX, OpenVMS Alpha, and OpenVMS I64 systems use 32-bit descriptors. When used on OpenVMS Alpha and OpenVMS I64 systems, 32-bit descriptors provide full compatibility with their use on OpenVMS VAX. The 64-bit descriptors are used only on OpenVMS Alpha and OpenVMS I64 systems. They have no counterparts and are not recognized on OpenVMS VAX systems.

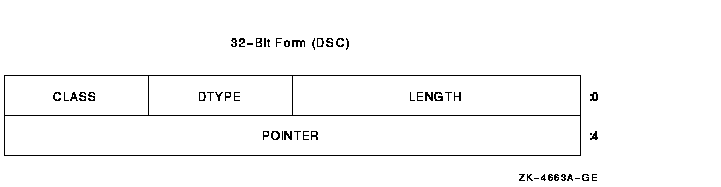

Figure 11-1 shows the general descriptor format for a 32-bit descriptor.

Figure 11-1 General Format of a 32-Bit Descriptor

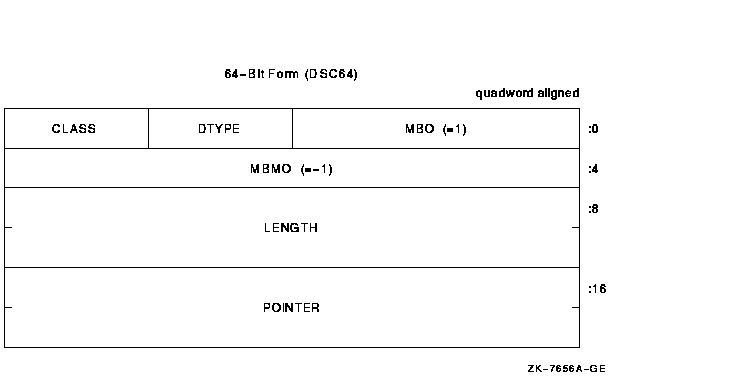

Figure 11-2 shows the general descriptor format for a 64-bit descriptor.

Figure 11-2 General Format of a 64-Bit Descriptor

When 32-bit descriptors are used on OpenVMS Alpha and OpenVMS I64 systems, they have no required alignment for compatibility with OpenVMS VAX systems, even though longword alignment usually promotes better performance. The 64-bit descriptors on OpenVMS Alpha and OpenVMS I64 systems must be quadword aligned.

Table 11-1 shows the fields and meanings for both 32-bit and 64-bit descriptors. Because CLASS and DTYPE fields occupy the same offsets in both 32-bit and 64-bit descriptors, these two fields have the same definition, and can contain the same values with the same meanings in both 32-bit and 64-bit forms.

Table 11-1 Contents of the General Descriptor Format
Field Description

Length The data item length specific to the descriptor class.

MBO In a 64-bit descriptor, this field must contain the value 1. This field overlays the length field of a 32-bit descriptor and the value 1 is necessary to distinguish correctly between the two forms.

Dtype A data-type code.

Class A descriptor class code that identifies the format and interpretation of the other fields of the descriptor.

Pointer The address of the first byte of the data element described.

MBMO In a 64-bit descriptor, this field must contain the value -1 (all 1 bits). This field overlays the pointer field of a 32-bit descriptor and the value -1 is necessary to distinguish correctly between the two forms.

**Table 11-1 Contents of the General Descriptor Format**
Field	Description
Length	The data item length specific to the descriptor class.
MBO	In a 64-bit descriptor, this field must contain the value 1. This field overlays the length field of a 32-bit descriptor and the value 1 is necessary to distinguish correctly between the two forms.
Dtype	A data-type code.
Class	A descriptor class code that identifies the format and interpretation of the other fields of the descriptor.
Pointer	The address of the first byte of the data element described.
MBMO	In a 64-bit descriptor, this field must contain the value -1 (all 1 bits). This field overlays the pointer field of a 32-bit descriptor and the value -1 is necessary to distinguish correctly between the two forms.

For extensive information about 32-bit and 64-bit descriptors, see Chapter 17. Section 11.4 provides serveral recommendations and guidelines on implementing 64-bit descriptors.

It is recommended programming practice to use STR$ Run-Time Library routines when using descriptors. Using STR$ RTL procedures helps ensure correct operation of complex language features and enforces consistent operations on data access languages. For example, STR$ANALYZE_SDESC and STR$ANALYZE_SDESC_64 take as input a 32-bit or 64-bit descriptor argument and extract from the descriptor the length of the data and the address at which the data starts for a variety of string descriptor classes. For complete information on using STR$ routines, see the OpenVMS RTL String Manipulation (STR$) Manual.

11.1.3 Comparison of 32-Bit and 64-Bit Item Lists

The following sections describe item lists and compare the 32-bit and 64-bit type of item lists. Item lists are a mechanism used in OpenVMS system services to pass a list of options and/or data descriptors to a service. Occasionaly, item lists are used elsewhere, such as in a single routine in LIBRTL, but they are generally considered specific to the OpenVMS system programming interface. They are not in the OpenVMS Calling Standard.

Item lists that are of the 32-bit type are structures or arrays that consist of one or more item descriptors and the list of the item is terminated by a longword containing a zero. Each item descriptor is either a two or three longword structure that contains either three or four fields.

Like 32-bit item lists, 64-bit item lists are structures or arrays that consist of one or more item descriptors, but unlike the 32-bit item lists, the list of the item is terminated by a quadword containing a zero, instead of a longword.

Item List Chaining and Segments

An item list is an array structure that occupies contiguous memory. Some system services support item codes that allow item lists that are non-contiguous and scattered throughout memory to be chained or linked together. Chained item lists are distinct item lists because they are directly linked. For example, the NSA$_CHAIN item code of the $AUDIT_EVENT system service specifies the item list to process immediately after the current one. The buffer address field in the item descriptor specifies the address of the next item list to be processed. Similarly, the LNM$_CHAIN item code of $CRELNM and JPI$_CHAIN item code of $GETJPI system services, point to another item list that the respective system service is to process immediately after it has processed the current item list.

Item lists of 32-bits and 64-bits can be chained together.

Item list segments are the elements that get linked together to form item lists.

11.1.3.1 32-Bit Item Lists

Item lists do not have a formal definition. As a result, there is some variance in their use, but nearly every use consists of a list of one of two forms, referred to as the following:

item_list_2
item_list_3

In both forms, an item code typically identifies the data item to be set or fetched, and a buffer length and address describe the buffer to be read from or written to. The item codes are specific to the facility being called.

Figure 11-3 shows the format of the item_list_2 item list.

Figure 11-3 Item_list_2 Format

Figure 11-4 shows the format of the item_list_3 item list.

Figure 11-4 Item_list_3 Format

The following table defines the fields for 32-bit item list entries:

Field Description

Buffer length A word containing a user-supplied integer specifying the length (in bytes) of the buffer in which the service is to write the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor.

Item code A word containing a user-supplied symbolic code specifying the item of information that a service is to return.

Buffer address A longword containing the user-supplied 32-bit address of the buffer in which a service is to write the information.

Return length address A longword containing the user-supplied 32-bit address of a word in which a service writes the length (in bytes) of the information it actually returned.

Field	Description
Buffer length	A word containing a user-supplied integer specifying the length (in bytes) of the buffer in which the service is to write the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor.
Item code	A word containing a user-supplied symbolic code specifying the item of information that a service is to return.
Buffer address	A longword containing the user-supplied 32-bit address of the buffer in which a service is to write the information.
Return length address	A longword containing the user-supplied 32-bit address of a word in which a service writes the length (in bytes) of the information it actually returned.

You typically use the item_list_3 format when the list describes a series of data items to be returned. This format includes a return length address longword, which is the address of a location in which to write the (word) length of data actually written to the buffer.

For item_list_3 entries, you can set the Return Length Address field to point to the Buffer Length field in the item list entry itself. As a result, the "descriptor-like" portion of the entry is updated by the routine returning the value.

11.1.3.2 64-Bit Item Lists

To maintain a degree of compatibility with the 32-bit item lists, 64-bit item lists mirror the definition of 64-bit descriptors.

The names of 32-bit item lists (item_list_2 and item_list_3), which expose the number of longwords in the structure in the name itself, do not apply to 64-bit item lists. The 64-bit versions (item_list_64a and item_list_64b) do not include an element count.

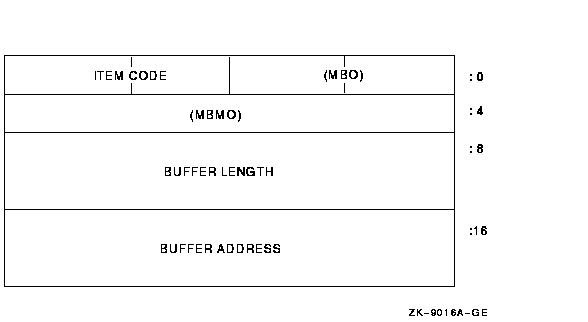

Figure 11-5 shows the format of the item_list_64a item list.

Figure 11-5 Item_list_64a Format

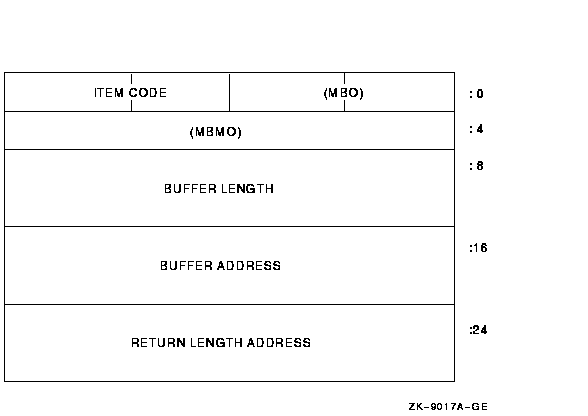

Figure 11-6 shows the format of the item_list_64b item list.

Figure 11-6 Item_list_64b Format

The following table defines the item descriptor fields for 64-bit item list entries:

Field Description

MBO The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries.

Item code A word containing a user-supplied symbolic code that describes the information in the buffer or the information to be returned to the buffer, pointed to by the buffer address field.

MBMO The field must contain a -1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries.

Buffer length A quadword containing a user-supplied integer specifying the length (in bytes) of the buffer in which a service is to write the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor.

Buffer address A quadword containing the user-supplied 64-bit address of the buffer in which a service is to write the information.

Return length address A quadword containing the user-supplied 64-bit address of a word in which a service writes the length (in bytes) of the information it actually returned.

Field	Description
MBO	The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries.
Item code	A word containing a user-supplied symbolic code that describes the information in the buffer or the information to be returned to the buffer, pointed to by the buffer address field.
MBMO	The field must contain a -1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries.
Buffer length	A quadword containing a user-supplied integer specifying the length (in bytes) of the buffer in which a service is to write the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor.
Buffer address	A quadword containing the user-supplied 64-bit address of the buffer in which a service is to write the information.
Return length address	A quadword containing the user-supplied 64-bit address of a word in which a service writes the length (in bytes) of the information it actually returned.

Because they contain quadword entries, 64-bit item lists should be quadword aligned. If a misaligned list is specified, the called routine still functions properly, but a performance penalty results due to alignment faults.

By maintaining a degree of compatibility between 32-bit and 64-bit item lists, the following advantages result:

The 64-bit form is easily distinguished from the 32-bit form by routines receiving them as arguments.
The item lists continue to demonstrate the behavior that if a 32-bit facility is incorrectly handed as a 64-bit item list, it fails predictably. The buffer address of -1 and the length field of 1 are guaranteed to result in an access violation. The same result comes from passing a 64-bit item list entry to a routine expecting a 32-bit string descriptor. Passing a 64-bit item list element to a routine expecting a 64-bit descriptor is as reliable as it is for their 32-bit counterparts.

Section 11.4 provides several recommendations and guidelines on implementing 64-bit item lists.

11.1.4 System Services That Support 64-Bit Addresses

Table 11-2 summarizes the OpenVMS Alpha and OpenVMS I64 system services that support 64-bit addresses.

Although RMS system services provide some 64-bit addressing capabilities, they are not listed in this table because they are not full 64-bit system services. See Section 11.2 for more details.

Table 11-2 64-Bit System Services
Service Arguments

Alignment System Services

$GET_ALIGN_FAULT_DATA buffer_64, buffer_size, return_size_64

$GET_SYS_ALIGN_FAULT_DATA buffer_64, buffer_size, return_size_64

$INIT_SYS_ALIGN_FAULT_REPORT match_table_64, buffer_size, flags

AST System Service

$DCLAST astadr_64, astprm_64, acmode

Condition Handling System Services

$FAO ctrstr_64, outlen_64, outbuf_64, p1_64...pn_64

$FAOL ctrstr_64, outlen_64, outbuf_64, long_prmlst_64

$FAOL_64 ctrstr_64, outlen_64, outbuf_64, quad_prmlst_64

$GETMSG msgid, msglen_64, bufadr_64, flags, outadr_64

$PUTMSG msgvec_64, actrtn_64, facnam_64, actprm_64

$SIGNAL_ARRAY_64 mcharg, sigarg_64

CPU Scheduling System Services

$CPU_CAPABILITIES cpu_id, select_mask, modify_mask, prev_mask, flags

$CPU_TRANSITION(W) tran_code, cpu_id, nodename, node_id, flags, efn, iosb, astadr_64, astprm_64

$FREE_USER_CAPABILITY cap_num, prev_mask, flags

$GET_USER_CAPABILITY cap_num, select_num, select_mask, prev_mask, flags

$PROCESS_AFFINITY pidadr, prcnam, select_mask, modify_mask, prev_mask, flags

$PROCESS_CAPABILITIES pidadr, prcnam, select_mask, modify_mask, prev_mask, flags

$SET_IMPLICIT_AFFINITY pidadr, prcnam, state, cpu_id, prev_mask

Event Flag System Service

$READEF efn, state_64

Fast-I/O System Services

$IO_CLEANUP fandle

$IO_PERFORM fandle, chan, iosadr, bufadr, buflen, porint

$IO_PERFORMW fandle, chan, iosadr, bufadr, buflen, porint

$IO_SETUP func, bufobj, iosobj, astadr, flags, return_fandle

Intra-Cluster Communications System Services

SYS$ICC_ACCEPT conn_handle, accept_buf, accept_len, user_context, flags

SYS$ICC_CONNECT(W) ios_icc, astadr, astprm, assoc_handle, conn_handle, remote_assoc, remote_node, user_context, conn_buf, conn_buf_len, return_buf, return_buf_len, retlen_addr, flags

SYS$ICC_DISCONNECT(W) conn_handle, iosb, astadr, astprm, disc_buf, disc_buf_len

SYS$ICC_OPEN_ASSOC asoc_handle, assoc_name, logical_name, logical_table, conn_event_rtn, disc_event_rtn, recv_rtn, maxflowbufcut, prot

SYS$ICC_RECEIVE(W) conn_handle, ios_icc, astadr, astprm, recv_buf, recv_buf_len

SYS$ICC_REJECT conn_handle, reject_buf, reject_buf_len, reason

SYS$ICC_REPLY(W) conn_handle, ios_icc, astadr, astprm, reply_buf, reply_len

SYS$ICC_TRANSCEIVE(W) conn_handle, ios_icc, astadr, astprm, send_buf, send_len

SYS$ICC_TRANSMIT(W) conn_handle, ios_icc, astadr, astprm, send_buf, send_len

I/O System Services

$ASSIGN devnam, chan, acmode, mbxnam, flags

$QIO(W) ¹ efn, chan, func, iosb_64, astadr_64, astprm_64, p1_64, p2_64, p3_64, p4_64, p5_64, p6_64

$SYNCH efn, iosb_64

Locking System Services

$DEQ lkid, vablk_64, acmode, flags

$ENQ(W) efn, lkmode, lksb_64, flags, resnam_64, parid, astadr_64, astprm_64, blkast_64, acmode

Logical Name System Services

$CRELNM attr, tabnam, lognam, acmode, itmlst

$CRELNT ttr, resnam, reslen, quota, promsk, tabnam, partab, acmode

$DELLNM tabnam, lognam, acmode

$TRNLNM attr, tabnam, lognam, acmode, itmlst

Memory Management System Services

$ADJWSL pagcnt, wsetlm_64

$CREATE_BUFOBJ_64 start_va_64, length_64, acmode, flags, return_va_64, return_length_64, return_buffer_handle_64

$CREATE_GDZRO gsdnam_64, ident_64, prot, length_64, acmode, flags, ...

$CRMPSC_GDZRO_64 gsdnam_64, ident_64, prot, length_64, region_id_64, section_offset_64, acmode, flags, return_va_64, return_length_64, ...

$CREATE_GFILE gsdnam_64, ident_64, file_offset_64, length_64, chan, acmode, flags, return_length_64, ...

$CREATE_GPFILE gsdnam_64, ident_64, prot, length_64, acmode, flags

$CREATE_GPFN gsdnam_64, ident_64, prot, start_pfn, page_count, acmode, flags

$CREATE_REGION_64 length_64, region_prot, flags, return_region_id_64, return_va_64, return_length_64, ...

$CRETVA_64 region_id_64, start_va_64, length_64, acmode, flags, return_va_64, return_length_64

$CRMPSC_FILE_64 region_id_64, file_offset_64, length_64, chan, acmode, flags, return_va_64, return_length_64, ...

$CRMPSC_GFILE_64 gsdnam_64, ident_64, file_offset_64, length_64, chan, region_id_64, section_offset, acmode, flags, return_va_64, return_length_64, ...

$CRMPSC_GPFILE_64 gsdnam_64, ident_64, prot, length_64, region_id_64, section_offset_64, acmode, flags, return_va_64, return_length_64, ...

$CRMPSC_GPFN_64 gsdnam_64, ident_64, prot, start_pfn, page_count, region_id_64, relative_page, acmode, flags, return_va_64, return_length_64, ...

$CRMPSC_PFN_64 region_id_64, start_pfn, page_count, acmode, flags, return_va_64, return_length_64, ...

$DELETE_BUFOBJ buffer_handle_64

$DELETE_REGION_64 region_id_64, acmode, return_va_64, return_length_64

$DELTVA_64 region_id_64, start_va_64, length_64, acmode, return_va_64, return_length_64

$DGBLSC flags, gsdnam_64, ident_64

$EXPREG_64 region_id_64, length_64, acmode, flags, return_va_64, return_length_64

$GET_REGION_INFO function_code, region_id_64, start_va_64, ,buffer_length, buffer_address_64, return_length_64

$LCKPAG_64 start_va_64, length_64, acmode, return_va_64, return_length_64

$LKWSET_64 start_va_64, length_64, acmode, return_va_64, return_length_64

$MGBLSC_64 gsdnam_64, ident_64, region_id_64, section_offset_64, length_64, acmode, flags, return_va_64, return_length_64, ...

$MGBLSC_GPFN_64 gsdnam_64, ident_64, region_id_64, relative_page, page_count, acmode, flags, return_va_64, return_length_64, ...

$PURGE_WS start_va_64, length_64

$SETPRT_64 start_va_64, length_64, acmode, prot, return_va_64, return_length_64, return_prot_64

$ULKPAG_64 start_va_64, length_64, acmode, return_va_64, return_length_64

$ULWSET_64 start_va_64, length_64, acmode, return_va_64, return_length_64

$UPDSEC_64(W) start_va_64, length_64, acmode, updflg, efn, iosa_64, return_va_64, return_length_64, ...

Process Control System Services

$GETJPI(W) efn, pidadr, prcnam, itmlst, iosb, astadr, astprm

$PROCESS_SCAN pidctx, itmlst

$WAKE pidadr, prcnam

Time System Services

$ASCTIM timlen, timbuf, timadr, cvtflg

$ASCUTC timlen, timbuf, utcadr, cvtflg

$BINTIM timbuf, timadr

$BINUTC timbuf, utcadr

$CANTIM reqidt_64, acmode

$GETTIM timadr_64

$GETUTC utcadr

$NUMTIM timbuf, timadr

$NUMUTC timbuf, utcadr

$SETIME timadr

$SETIMR efn, daytim_64, astadr_64, reqidt_64, flags

$TIMCON timadr, utcadr, cvtflg

Other System Services

$ASCTOID name, id, attrib

$CLEAR_UNWIND_TABLE code_base_va

$CMEXEC_64 routine_64, quad_arglst_64

$CMKRNL_64 routine_64, quad_arglst_64

$FINISH_RDB context

$GETSYI(W) efn, csidadr, nodename, itmlst, iosb, astadr, astprm

$GET_UNWIND_ENTRY_INFO pc, get_ue_block, name

$GOTO_UNWIND_64 target_invo, target_pc, [NewRetVal], [NewRetVal2]

$IDTOASC id, namlen, nambuf, resid, attrib, contxt

$SET_UNWIND_TABLE code_base_va, code_size, ut_base_va, ut_size, gp_value, unwind_info_base, name

**Table 11-2 64-Bit System Services**
Service	Arguments
Alignment System Services
$GET_ALIGN_FAULT_DATA	buffer_64, buffer_size, return_size_64
$GET_SYS_ALIGN_FAULT_DATA	buffer_64, buffer_size, return_size_64
$INIT_SYS_ALIGN_FAULT_REPORT	match_table_64, buffer_size, flags
AST System Service
$DCLAST	astadr_64, astprm_64, acmode
Condition Handling System Services
$FAO	ctrstr_64, outlen_64, outbuf_64, p1_64...pn_64
$FAOL	ctrstr_64, outlen_64, outbuf_64, long_prmlst_64
$FAOL_64	ctrstr_64, outlen_64, outbuf_64, quad_prmlst_64
$GETMSG	msgid, msglen_64, bufadr_64, flags, outadr_64
$PUTMSG	msgvec_64, actrtn_64, facnam_64, actprm_64
$SIGNAL_ARRAY_64	mcharg, sigarg_64
CPU Scheduling System Services
$CPU_CAPABILITIES	cpu_id, select_mask, modify_mask, prev_mask, flags
$CPU_TRANSITION(W)	tran_code, cpu_id, nodename, node_id, flags, efn, iosb, astadr_64, astprm_64
$FREE_USER_CAPABILITY	cap_num, prev_mask, flags
$GET_USER_CAPABILITY	cap_num, select_num, select_mask, prev_mask, flags
$PROCESS_AFFINITY	pidadr, prcnam, select_mask, modify_mask, prev_mask, flags
$PROCESS_CAPABILITIES	pidadr, prcnam, select_mask, modify_mask, prev_mask, flags
$SET_IMPLICIT_AFFINITY	pidadr, prcnam, state, cpu_id, prev_mask
Event Flag System Service
$READEF	efn, state_64
Fast-I/O System Services
$IO_CLEANUP	fandle
$IO_PERFORM	fandle, chan, iosadr, bufadr, buflen, porint
$IO_PERFORMW	fandle, chan, iosadr, bufadr, buflen, porint
$IO_SETUP	func, bufobj, iosobj, astadr, flags, return_fandle
Intra-Cluster Communications System Services
SYS$ICC_ACCEPT	conn_handle, accept_buf, accept_len, user_context, flags
SYS$ICC_CONNECT(W)	ios_icc, astadr, astprm, assoc_handle, conn_handle, remote_assoc, remote_node, user_context, conn_buf, conn_buf_len, return_buf, return_buf_len, retlen_addr, flags
SYS$ICC_DISCONNECT(W)	conn_handle, iosb, astadr, astprm, disc_buf, disc_buf_len
SYS$ICC_OPEN_ASSOC	asoc_handle, assoc_name, logical_name, logical_table, conn_event_rtn, disc_event_rtn, recv_rtn, maxflowbufcut, prot
SYS$ICC_RECEIVE(W)	conn_handle, ios_icc, astadr, astprm, recv_buf, recv_buf_len
SYS$ICC_REJECT	conn_handle, reject_buf, reject_buf_len, reason
SYS$ICC_REPLY(W)	conn_handle, ios_icc, astadr, astprm, reply_buf, reply_len
SYS$ICC_TRANSCEIVE(W)	conn_handle, ios_icc, astadr, astprm, send_buf, send_len
SYS$ICC_TRANSMIT(W)	conn_handle, ios_icc, astadr, astprm, send_buf, send_len
I/O System Services
$ASSIGN	devnam, chan, acmode, mbxnam, flags
$QIO(W) ¹	efn, chan, func, iosb_64, astadr_64, astprm_64, p1_64, p2_64, p3_64, p4_64, p5_64, p6_64
$SYNCH	efn, iosb_64
Locking System Services
$DEQ	lkid, vablk_64, acmode, flags
$ENQ(W)	efn, lkmode, lksb_64, flags, resnam_64, parid, astadr_64, astprm_64, blkast_64, acmode
Logical Name System Services
$CRELNM	attr, tabnam, lognam, acmode, itmlst
$CRELNT	ttr, resnam, reslen, quota, promsk, tabnam, partab, acmode
$DELLNM	tabnam, lognam, acmode
$TRNLNM	attr, tabnam, lognam, acmode, itmlst
Memory Management System Services
$ADJWSL	pagcnt, wsetlm_64
$CREATE_BUFOBJ_64	start_va_64, length_64, acmode, flags, return_va_64, return_length_64, return_buffer_handle_64
$CREATE_GDZRO	gsdnam_64, ident_64, prot, length_64, acmode, flags, ...
$CRMPSC_GDZRO_64	gsdnam_64, ident_64, prot, length_64, region_id_64, section_offset_64, acmode, flags, return_va_64, return_length_64, ...
$CREATE_GFILE	gsdnam_64, ident_64, file_offset_64, length_64, chan, acmode, flags, return_length_64, ...
$CREATE_GPFILE	gsdnam_64, ident_64, prot, length_64, acmode, flags
$CREATE_GPFN	gsdnam_64, ident_64, prot, start_pfn, page_count, acmode, flags
$CREATE_REGION_64	length_64, region_prot, flags, return_region_id_64, return_va_64, return_length_64, ...
$CRETVA_64	region_id_64, start_va_64, length_64, acmode, flags, return_va_64, return_length_64
$CRMPSC_FILE_64	region_id_64, file_offset_64, length_64, chan, acmode, flags, return_va_64, return_length_64, ...
$CRMPSC_GFILE_64	gsdnam_64, ident_64, file_offset_64, length_64, chan, region_id_64, section_offset, acmode, flags, return_va_64, return_length_64, ...
$CRMPSC_GPFILE_64	gsdnam_64, ident_64, prot, length_64, region_id_64, section_offset_64, acmode, flags, return_va_64, return_length_64, ...
$CRMPSC_GPFN_64	gsdnam_64, ident_64, prot, start_pfn, page_count, region_id_64, relative_page, acmode, flags, return_va_64, return_length_64, ...
$CRMPSC_PFN_64	region_id_64, start_pfn, page_count, acmode, flags, return_va_64, return_length_64, ...
$DELETE_BUFOBJ	buffer_handle_64
$DELETE_REGION_64	region_id_64, acmode, return_va_64, return_length_64
$DELTVA_64	region_id_64, start_va_64, length_64, acmode, return_va_64, return_length_64
$DGBLSC	flags, gsdnam_64, ident_64
$EXPREG_64	region_id_64, length_64, acmode, flags, return_va_64, return_length_64
$GET_REGION_INFO	function_code, region_id_64, start_va_64, ,buffer_length, buffer_address_64, return_length_64
$LCKPAG_64	start_va_64, length_64, acmode, return_va_64, return_length_64
$LKWSET_64	start_va_64, length_64, acmode, return_va_64, return_length_64
$MGBLSC_64	gsdnam_64, ident_64, region_id_64, section_offset_64, length_64, acmode, flags, return_va_64, return_length_64, ...
$MGBLSC_GPFN_64	gsdnam_64, ident_64, region_id_64, relative_page, page_count, acmode, flags, return_va_64, return_length_64, ...
$PURGE_WS	start_va_64, length_64
$SETPRT_64	start_va_64, length_64, acmode, prot, return_va_64, return_length_64, return_prot_64
$ULKPAG_64	start_va_64, length_64, acmode, return_va_64, return_length_64
$ULWSET_64	start_va_64, length_64, acmode, return_va_64, return_length_64
$UPDSEC_64(W)	start_va_64, length_64, acmode, updflg, efn, iosa_64, return_va_64, return_length_64, ...
Process Control System Services
$GETJPI(W)	efn, pidadr, prcnam, itmlst, iosb, astadr, astprm
$PROCESS_SCAN	pidctx, itmlst
$WAKE	pidadr, prcnam
Time System Services
$ASCTIM	timlen, timbuf, timadr, cvtflg
$ASCUTC	timlen, timbuf, utcadr, cvtflg
$BINTIM	timbuf, timadr
$BINUTC	timbuf, utcadr
$CANTIM	reqidt_64, acmode
$GETTIM	timadr_64
$GETUTC	utcadr
$NUMTIM	timbuf, timadr
$NUMUTC	timbuf, utcadr
$SETIME	timadr
$SETIMR	efn, daytim_64, astadr_64, reqidt_64, flags
$TIMCON	timadr, utcadr, cvtflg
Other System Services
$ASCTOID	name, id, attrib
$CLEAR_UNWIND_TABLE	code_base_va
$CMEXEC_64	routine_64, quad_arglst_64
$CMKRNL_64	routine_64, quad_arglst_64
$FINISH_RDB	context
$GETSYI(W)	efn, csidadr, nodename, itmlst, iosb, astadr, astprm
$GET_UNWIND_ENTRY_INFO	pc, get_ue_block, name
$GOTO_UNWIND_64	target_invo, target_pc, [NewRetVal], [NewRetVal2]
$IDTOASC	id, namlen, nambuf, resid, attrib, contxt
$SET_UNWIND_TABLE	code_base_va, code_size, ut_base_va, ut_size, gp_value, unwind_info_base, name

¹For more information about the $QIO(W) arguments that support 64-bit addressing, see Writing OpenVMS Alpha Device Drivers in C, and HP OpenVMS Guide to Upgrading Privileged-Code Applications.
