On VAX systems, when a routine is activated, the first longword in its stack frame is set to 0. This longword is reserved to contain an address pointing to another routine called the condition handler. If an exception condition is signaled during the execution of the routine, the OpenVMS Condition Handling Facility uses the address in the first longword of the frame to call the associated condition handler.

Each procedure, other than a null frame procedure, can have a condition handler potentially associated with it, which is identified by the HANDLER_VALID, STACK_HANDLER, or REG_HANDLER fields of the associated procedure descriptor in an Alpha system, or the handler field in the associated unwind information block on an I64 system. You establish a handler by including the procedure value of the handler procedure in that field. See the HP OpenVMS Calling Standard for additional information.

The arguments passed to the condition-handling routine are the signal and mechanism argument vectors, described in Section 9.8.2, Section 9.8.3, and Section 9.8.4.

Various types of condition handlers can be called for a given routine:

• User-supplied condition handlers
  You can write your own condition handler and set up its address in the stack frame of your routine using the run-time library routine LIB$ESTABLISH or the mechanism supplied by your language.
  On Alpha and I64 systems, LIB$ESTABLISH is not supported, though high-level languages may support it for compatibility.
• Language-supplied condition handlers
  Many high-level languages provide a means for setting up handlers that are global to a single routine. If your language provides a condition-handling mechanism, you should always use it. If you also try to establish a condition handler using LIB$ESTABLISH, the two methods of handling exception conditions conflict, and the results are unpredictable.
• System default condition handlers
  The operating system provides a set of default condition handlers. These take over if there are no other condition handler addresses on the stack, or if all the previous condition handlers have passed on (resignaled) the indication of the exception condition.

The operating system establishes the following default condition handlers each time a new image is started. The default handlers are shown in the order they are encountered when the operating system processes a signal. These three handlers are the only handlers that output error messages.

• Traceback handler
  The traceback handler is established on the stack after the catchall handler. This enables the traceback handler to get control first. This handler performs three functions in the following order:
  1. Outputs an error message using the Put Message (SYS$PUTMSG) system service. SYS$PUTMSG formats the message using the Formatted ASCII Output (SYS$FAO) system service and sends the message to the devices identified by the logical names SYS$ERROR and SYS$OUTPUT (if it differs from SYS$ERROR). That is, it displays the message associated with the signaled condition code, the traceback message, the program unit name and line number of the statement that signaled the condition code, and the relative and absolute program counter values. (On a warning or error, the number of the next statement to be executed is displayed.)
  2. Issues a symbolic traceback, which shows the state of the routine stack at the time of the exception condition. That is, it displays the names of the program units in the calling hierarchy and the line numbers of the invocation statements.

  3. Decides whether to continue executing the image or to force an exit based on the severity field of the condition value:

     Severity	Error Type	Action
     1	Success	Continue
     3	Information	Continue
     0	Warning	Continue
     2	Error	Continue
     4	Severe	Exit


     The traceback handler is in effect if you link your program with the /TRACEBACK qualifier of the LINK command (the default). Once you have completed program development, you generally link your program with the /NOTRACEBACK qualifier and use the catchall handler.
• Catchall handler
  The operating system establishes the catchall handler in the first stack frame and thus calls it last. This handler performs the same functions as the traceback handler except for the stack traceback. That is, it issues an error message and decides whether to continue execution. The catchall is called only if you link with the /NOTRACEBACK qualifier. It displays the message associated with the condition code and then continues program execution or, if the error is severe, terminates execution.
• Last-chance handler
  The operating system establishes the last-chance handler with a system exception vector. In most cases, this vector contains the address of the catchall handler, so that these two handlers are actually the same. The last-chance handler is called only if the stack is invalid or all the handlers on the stack have resignaled. If the debugger is present, the debugger's own last-chance handler replaces the system last-chance handler.

Displays the message associated with the condition code and then continues program execution or, if the error is severe, terminates execution. The catchall handler is not invoked if the traceback handler is enabled.

In the following example, if the condition code INCOME_LINELOST is signaled at line 496 of GET_STATS, regardless of which default handler is in effect, the following message is displayed:

%INCOME-W-LINELOST, Statistics on last line lost due to CTRL/Z

If the traceback handler is in effect, the following text is also displayed:

%TRACE-W-TRACEBACK, symbolic stack dump follows module name routine name line rel PC abs PC GET_STATS GET_STATS 497 00000306 00008DA2 INCOME INCOME 148 0000015A 0000875A 0000A5BC 0000A5BC 00009BDB 00009BDB 0000A599 0000A599

Because INCOME_LINELOST is a warning, the line number of the next statement to be executed (497), rather than the line number of the statement that signaled the condition code, is displayed. Line 148 of the program unit INCOME invoked GET_STATS.

9.9.2 Interaction Between Default and User-Supplied Handlers

Several results are possible after a routine signals, depending on a number of factors, such as the severity of the error, the method of generating the signal, and the action of the condition handlers you have defined and the default handlers. Given the severity of the condition and the method of signaling, Figure 9-13 lists all combinations of interaction between user condition handlers and default condition handlers.

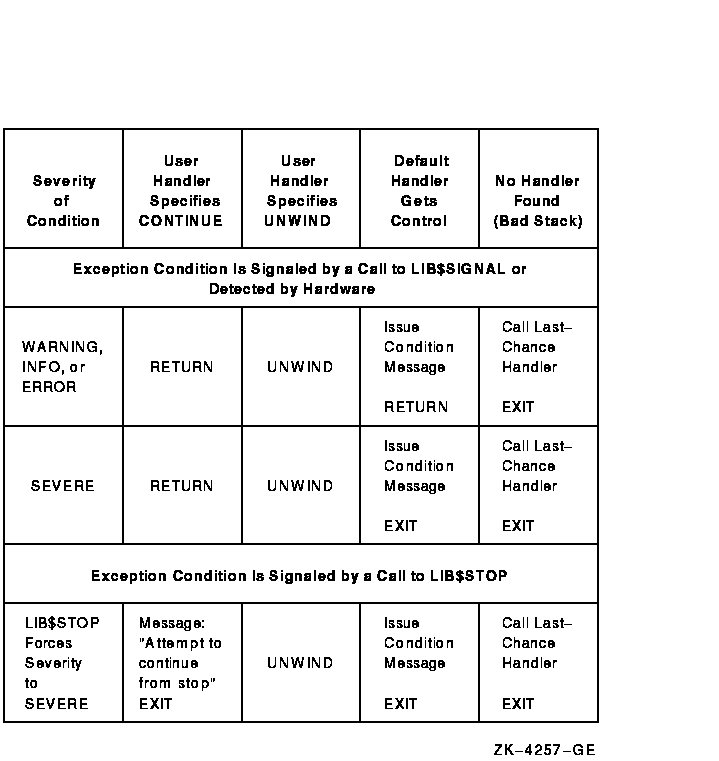

Figure 9-13 Interaction Between Handlers and Default Handlers

9.10 Types of Actions Performed by Condition Handlers

• Signal a condition
  Signaling a condition initiates the search for an established condition handler.
• Continue
  The condition handler may or may not be able to fix the problem, but the program can attempt to continue execution. The handler places the return status value SS$_CONTINUE in R0 (R8 for I64) and issues a return instruction to return control to the dispatcher. If the exception was a fault, the instruction that caused it is reexecuted; if the exception was a trap, control is returned at the instruction following the one that caused it. A condition handler cannot continue if the exception condition was signaled by calling LIB$STOP.
  Section 9.12.1 contains more information about continuing.
• Resignal
  The handler cannot fix the problem, or this condition is one that it does not handle. It places the return status value SS$_RESIGNAL in R0 (R8 for I64) and issues a return instruction to return control to the exception dispatcher. The dispatcher resumes its search for a condition handler. If it finds another condition handler, it passes control to that routine. A handler can alter the severity of the signal before resignaling.
  Section 9.12.2 contains more information about resignaling.
• Unwind
  The condition handler cannot fix the problem, and execution cannot continue while using the current flow. The handler issues the Unwind Call Stack (SYS$UNWIND) system service to unwind the call stack. Call frames can then be removed from the stack and the flow of execution modified, depending on the arguments to the SYS$UNWIND service.
  When a condition handler has already called SYS$UNWIND, any return status from the condition handler is ignored by the CHF. The CHF now unwinds the stack.
  Unwinding the routine call stack first removes call frames, starting with the frame in which the condition occurred, and then returns control to an earlier routine in the calling sequence. You can unwind the stack whether the condition was detected by hardware or signaled using LIB$SIGNAL or LIB$STOP. Unwinding is the only way to continue execution after a call to LIB$STOP.
  Section 9.12.3 describes how to write a condition handler that unwinds the call stack.
• Perform a nonlocal GOTO unwind
  On Alpha and I64 systems, a GOTO unwind operation is a transfer of control that leaves one procedure invocation and continues execution in a prior (currently active) procedure. This unified GOTO operation gives unterminated procedure invocations the opportunity to clean up in an orderly way. See Section 9.10.2 for more information about GOTO unwind operations.

One type of action a condition handler can take is to unwind the procedure call stack. The unwind operation is complex and should be used only when control must be restored to an earlier procedure in the calling sequence. Moreover, use of the SYS$UNWIND system service requires the calling condition handler to be aware of the calling sequence and of the exact point to which control is to return.

SYS$UNWIND accepts two optional arguments:

• The depth to which the unwind is to occur. If the depth is 1, the call stack is unwound to the caller of the procedure that incurred the exception. If the depth is 2, the call stack is unwound to the caller's caller, and so on. By specifying the depth in the mechanism array, the handler can unwind to the procedure that established the handler.
• The address of a location to receive control when the unwind operation is complete, that is, a PC to replace the current PC in the call frame of the procedure that will receive control when all specified frames have been removed from the stack.

If no argument is supplied to SYS$UNWIND, the unwind is performed to the caller of the procedure that established the condition handler that is issuing the SYS$UNWIND service. Control is returned to the address specified in the return PC for that procedure. Note that this is the default and the normal case for unwinding.

Another common case of unwinding is to unwind to the procedure that declared the handler. On VAX systems, this is done by using the depth value from the exception mechanism array (CHF$L_MCH_DEPTH) as the depth argument to SYS$UNWIND. On Alpha and I64 systems, this is done by using the depth value from the exception mechanism array (CHF$IS_MCH_DEPTH) as the depth argument to SYS$UNWIND.

Therefore, it follows that the default unwind (no depth specified) is equivalent to specifying CHF$L_MCH_DEPTH plus 1 on VAX systems. On Alpha and I64 systems, the default unwind (no depth specified) is equivalent to specifying CHF$IS_MCH_DEPTH plus 1. In certain instances of nested exceptions, however, this is not the case. HP recommends that you omit the depth argument when unwinding to the caller of the routine that established the condition handler.

Figure 9-14 illustrates an unwind situation and describes some of the possible results.

The unwind operation consists of two parts:

1. In the call to SYS$UNWIND, the return PCs saved in the stack are modified to point into a routine within the SYS$UNWIND service, but the entire stack remains present.
2. When the handler returns, control is directed to this routine by the modified PCs. It proceeds to return to itself, removing the modified stack frames, until the stack has been unwound to the proper depth.

For this reason, the stack is in an intermediate state directly after calling SYS$UNWIND. Handlers should, in general, return immediately after calling SYS$UNWIND.

During the actual unwinding of the call stack, the unwind routine examines each frame in the call stack to see whether a condition handler has been declared. If a handler has been declared, the unwind routine calls the handler with the status value SS$_UNWIND (indicating that the call stack is being unwound) in the condition name argument of the signal array. When a condition handler is called with this status value, it can perform any procedure-specific cleanup operations required. For example, the handler should deallocate any processwide resources that have been allocated. Then, the handler returns control to the OpenVMS Condition Handling facility. After the handler returns, the call frame is removed from the stack.

When a condition handler is called during the unwinding operation, the condition handler must not generate a new signal. A new signal would result in unpredictable behavior.

Thus, in Figure 9-14, handler B can be called a second time, during the unwind operation. Note that handler B does not have to be able to interpret the SS$_UNWIND status value specifically; the return instruction merely returns control to the unwind procedure, which does not check any status values.

Handlers established by the primary, secondary, or last-chance vector are not called, because they are not removed during an unwind operation.

While it is unwinding the stack, the OpenVMS Condition Handling facility ignores any function value returned by a condition handler. For this reason, a handler cannot both resignal and unwind. Thus, the only way for a handler to both issue a message and perform an unwind is to call LIB$SIGNAL and then call $UNWIND. If your program calls $UNWIND before calling LIB$SIGNAL, the result is unpredictable.

When the OpenVMS Condition Handling facility calls the condition handler that was established for each frame during unwind, the call is of the standard form, described in Section 9.2. The arguments passed to the condition handler (the signal and mechanism argument vectors) are shown in Section 9.8.2, Section 9.8.3, and Section 9.8.4.

On VAX systems, if the handler is to specify the function value of the last function to be unwound, it should modify the saved copies of R0 and R1 (CHF$L_MCH_SAVR0 and CHF$L_MCH_SAVR1) in the mechanism argument vector.

On Alpha and I64 systems, the handler should modify the saved copies of R0 and R1 (R8, R9 for I64) (CHF$IH_MCH_SAVRnn).

R0 and R1 (R8, R9 for I64) are restored from the mechanism argument vector at the end of the unwind.

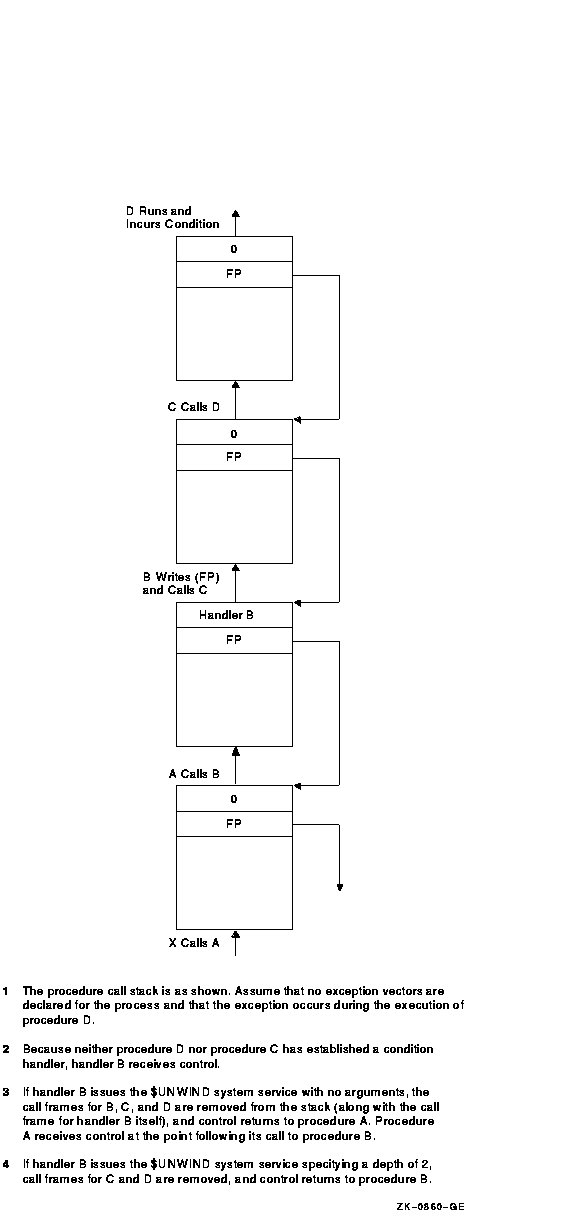

Figure 9-14 Unwinding the Call Stack

9.10.2 GOTO Unwind Operations (Alpha and I64 Only)

When a current procedure returns to its calling procedure, the most recent procedure frame is removed from the call chain and used to restore the now current procedure's state. As each current procedure returns to its calling procedure, its associated procedure frame is removed from the call chain. This is the normal unwind process of a call chain.

You can bypass the normal return path by forcibly unwinding the call chain. The Unwind Call Chain (SYS$UNWIND) system service allows a condition handler to transfer control from a series of nested procedure invocations to a previous point of execution, bypassing the normal return path. The Goto Unwind (SYS$GOTO_UNWIND) system service allows any procedure to achieve the same effect. (On I64 systems SYS$GOTO_UNWIND does not exist, use SYS$GOTO_UNWIND_64.) SYS$GOTO_UNWIND (SYS$GOTO_UNWIND_64) restores saved register context for each nested procedure invocation, calling the condition handler, if any, for each procedure frame that it unwinds. Restoring saved register context from each procedure frame from the most recent one to the target procedure frame ensures that the register context is correct when the target procedure gains control. Also, each condition handler called during unwind can release any resources acquired by its establishing procedure.

For information about the GOTO unwind operations and how to use the SYS$GOTO_UNWIND (SYS$GOTO_UNWIND_64) system service, see the HP OpenVMS Calling Standard and the HP OpenVMS System Services Reference Manual.

9.11 Displaying Messages

The standard format for a message is as follows:

%facility-l-ident, message-text

facility	Abbreviated name of the software component that issued the message
l	Indicator showing the severity level of the exception condition that caused the message
ident	Symbol of up to nine characters representing the message
message-text	Brief definition of the cause of the message

The message can also include up to 255 formatted ASCII output (FAO) arguments. These arguments can be used to display variable information about the condition that caused the message. In the following examples, the file specification is an FAO argument:

%TYPE-W-OPENIN, error opening _DB0:[FOSTER]AUTHOR.DAT; as input

For information about specifying FAO parameters, see Section 9.11.4.3.

Signaling

Signaling provides a consistent and unified method for displaying messages. This section describes how the OpenVMS Condition Handling facility translates the original signal into intelligible messages.

Signaling is used to signal exception conditions generated by HP software. When software detects an exception condition, it signals the exception condition to the user by calling LIB$SIGNAL or LIB$STOP. The signaling routine passes a signal argument list to these run-time library routines. This signal argument list is made up of the condition value and a set of optional arguments that provide information to condition handlers.

You can use the signaling mechanism to signal messages that are specific to your application. Further, you can chain your own message to a system message. For more information, see Section 9.11.3.

LIB$SIGNAL and LIB$STOP copy the signal argument list and use it to create the signal argument vector. The signal argument vector serves as part of the input to the user-established handlers and the system default handlers.

If all intervening handlers have resignaled, the system default handlers take control. The system-supplied default handlers are the only handlers that should actually issue messages, whether the exception conditions are signaled by HP software or your own programs. That is, a routine should signal exception conditions rather than issue its own messages. In this way, other applications can call the routine and override its signal in order to change the messages. Further, this technique decides formatting details, and it also keeps wording centralized and consistent.

The system default handlers pass the signal argument vector to the Put Message (SYS$PUTMSG) system service. SYS$PUTMSG formats and displays the information in the signal argument vector.

SYS$PUTMSG performs the following steps:

1. Interprets the signal argument vector as a series of one or more message sequences. Each message sequence starts with a 32-bit, systemwide condition value that identifies a message in the system message file. SYS$PUTMSG interprets the message sequences according to type defined by the facility of the condition.
2. Obtains the text of the message using the Get Message (SYS$GETMSG) system service. The message text definition is actually a SYS$FAO control string. It may contain embedded FAO directives. These directives determine how the FAO arguments in the signal argument vector are formatted. (For more information about SYS$FAO, see the HP OpenVMS System Services Reference Manual.)
3. Calls SYS$FAO to format the message, substituting the values from the signal argument list.
4. Issues the message on device SYS$OUTPUT. If SYS$ERROR is different from SYS$OUTPUT, and the severity field in the condition value is not success, $PUTMSG also issues the message on device SYS$ERROR.

You can use the signal array that the operating system passes to the condition handler as the first argument of the SYS$PUTMSG system service. The signal array contains the condition code, the number of required FAO arguments for each condition code, and the FAO arguments (see Figure 9-15). The HP OpenVMS System Services Reference Manual contains complete specifications for SYS$PUTMSG.

See Section 9.11.2 for information about how to create and suppress messages on a running log using SYS$PUTMSG.

The last two array elements, the PC and PSL, are not FAO arguments and should be deleted before the array is passed to SYS$PUTMSG. Because the first element of the signal array contains the number of longwords in the array, you can effectively delete the last two elements of the array by subtracting 2 from the value in the first element. Before exiting from the condition handler, you should restore the last two elements of the array by adding 2 to the first element in case other handlers reference the array.

In the following example, the condition handler uses the SYS$PUTMSG system service and then returns a value of SS$_CONTINUE so that the default handler is not executed.

INTEGER*4 FUNCTION SYMBOL (SIGARGS, 2 MECHARGS) . . . INDEX = LIB$MATCH_COND (SIGARGS(2), 2 LIB$_NOSUCHSYM) IF (INDEX .GT. 0) THEN ! If condition code is LIB$_NOSUCHSYM, ! change the severity to informational CALL MVBITS (STS$K_INFO, 2 0, 2 3, 2 SIGARGS(2), 2 0) ! Display the message SIGARGS(1) = SIGARGS(1) - 2 ! Subtract last two elements CALL SYS$PUTMSG (SIGARGS,,,) SIGARGS(1) = SIGARGS(1) + 2 ! Restore last two elements ! Continue program execution; SYMBOL = SS$_CONTINUE ELSE ! Otherwise, resignal the condition SYMBOL = SS$_RESIGNAL END IF END

Each message sequence in the signal argument list produces one line of output. Figure 9-15 illustrates the three possible message sequence formats.

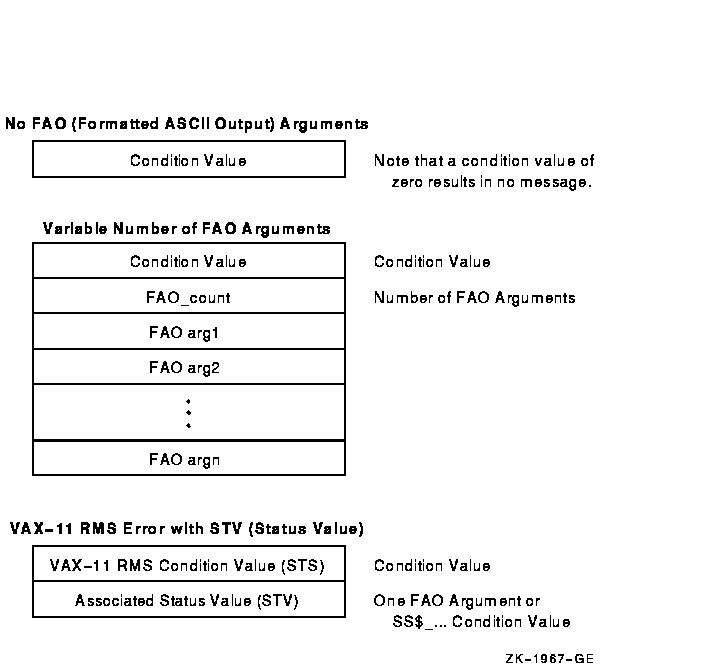

Figure 9-15 Formats of Message Sequences

OpenVMS RMS system services return two related completion values: the completion code and the associated status value. The completion code is returned in R0 using the function value mechanism. The same value is also placed in the Completion Status Code field of the RMS file access block (FAB) or record access block (RAB) associated with the file (FAB$L_STS or RAB$L_STS). The status value is returned in the Status Value field of the same FAB or RAB (FAB$L_STV or RAB$L_STV). The meaning of this secondary value is based on the corresponding STS (Completion Status Code) value. Its meaning could be any of the following:

• An operating system condition value of the form SS$_...
• An RMS value, such as the size of a record that exceeds the buffer size
• Zero

Rather than have each calling program determine the meaning of the STV value, SYS$PUTMSG performs the necessary processing. Therefore, this STV value must always be passed in place of the FAO argument count. In other words, an RMS message sequence always consists of two arguments (passed by immediate value): an STS value and an STV value.
