HP OpenVMS System Services Reference Manual

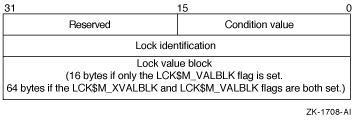

The following diagram shows the format of the lock status block and the optional lock value block:

The following table defines the status block fields:

Status Block Field Definition

Condition value A word in which $ENQ writes a condition value describing the final disposition of the lock request; for example, whether the lock was granted, converted, and so on. The condition values returned in this field are described in the Condition Values Returned in the Lock Status Block section, which appears following the list of condition values returned in R0.

Reserved A word reserved by HP.

Lock identification A longword containing the identification of the lock.
For a new lock, $ENQ writes the lock identification of the requested lock into this longword when the lock request is queued.
For a lock conversion on an existing lock, you must supply the lock identification of the existing lock in this field.

Lock value block A user-defined structure containing information about the resource. This information is interpreted only by the user program.
The length of the user data structure is 16 bytes if only the LCK$M_VALBLK flag is specified. The user data structure is 64 bytes if both the LCK$M_VALBLK and LCK$M_XVALBLK flags are specified. The length of the system copy of the lock value block structure is always 64 bytes on OpenVMS and I64 systems beginning with OpenVMS Version 8.2. Refer to the HP OpenVMS Programming Concepts Manual for information about using the LCK$M_XVALBLK flag in a mixed-version cluster.
When a process acquires a lock on a resource, the lock management facility provides that process with a process-private copy of the lock value block associated with the resource, provided that process has specified the LCK$M_VALBLK flag in the flags argument. The copy provided to the process is a copy of the lock value block stored in the lock manager's database.
The copy of the lock value block maintained in the lock database is either read into or updated from the caller's lock value block. The method used depends on the lock mode of the lock that was granted, and on the mode of the original lock held, if the operation was a conversion.
In general, a grant or a conversion to an equal-level or higher-level lock mode reads the lock value from the lock database into the caller's lock value block.
When a lock conversion from EX-mode or PW-mode to an equal-level or lower-level lock mode occurs, the contents of the caller's lock value block are written into the lock database. The specific behavior of the lock conversion is documented in the HP OpenVMS Programming Concepts Manual in the table entitled, "Effect of Lock Conversion on Lock Value Block".

Status Block Field	Definition
Condition value	A word in which $ENQ writes a condition value describing the final disposition of the lock request; for example, whether the lock was granted, converted, and so on. The condition values returned in this field are described in the Condition Values Returned in the Lock Status Block section, which appears following the list of condition values returned in R0.
Reserved	A word reserved by HP.
Lock identification	A longword containing the identification of the lock. For a new lock, $ENQ writes the lock identification of the requested lock into this longword when the lock request is queued. For a lock conversion on an existing lock, you must supply the lock identification of the existing lock in this field.
Lock value block	A user-defined structure containing information about the resource. This information is interpreted only by the user program. The length of the user data structure is 16 bytes if only the LCK$M_VALBLK flag is specified. The user data structure is 64 bytes if both the LCK$M_VALBLK and LCK$M_XVALBLK flags are specified. The length of the system copy of the lock value block structure is always 64 bytes on OpenVMS and I64 systems beginning with OpenVMS Version 8.2. Refer to the HP OpenVMS Programming Concepts Manual for information about using the LCK$M_XVALBLK flag in a mixed-version cluster. When a process acquires a lock on a resource, the lock management facility provides that process with a process-private copy of the lock value block associated with the resource, provided that process has specified the LCK$M_VALBLK flag in the flags argument. The copy provided to the process is a copy of the lock value block stored in the lock manager's database. The copy of the lock value block maintained in the lock database is either read into or updated from the caller's lock value block. The method used depends on the lock mode of the lock that was granted, and on the mode of the original lock held, if the operation was a conversion. In general, a grant or a conversion to an equal-level or higher-level lock mode reads the lock value from the lock database into the caller's lock value block. When a lock conversion from EX-mode or PW-mode to an equal-level or lower-level lock mode occurs, the contents of the caller's lock value block are written into the lock database. The specific behavior of the lock conversion is documented in the HP OpenVMS Programming Concepts Manual in the table entitled, "Effect of Lock Conversion on Lock Value Block".

Callers of $ENQ are provided with copies of the updated lock value block from the lock database in the following way: when $ENQ grants a new lock to the caller or converts the caller's existing lock to the same lock mode or a higher lock mode, $ENQ copies the lock value block from the lock database to the caller's lock value block, provided the caller has specified the LCK$M_VALBLK flag.

The Description section describes events that can cause the lock value block to become invalid.

flags

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Flags specifying options for the $ENQ operation. The flags argument is a longword bit mask that is the logical OR of each bit set, where each bit corresponds to an option.

The $LCKDEF macro defines a symbolic name for each flag bit. The following table describes each flag:

Flag Description

LCK$M_NOQUEUE When this flag is specified, $ENQ does not queue the lock request unless the lock can be granted immediately. By default, $ENQ always queues the request.
If you specify LCK$M_NOQUEUE in a lock conversion operation and the conversion cannot be granted immediately, the lock remains in the original lock mode.

LCK$M_SYNCSTS When you specify this flag, $ENQ returns the successful condition value SS$_SYNCH in R0 if the lock request is granted immediately; in this case, no completion asynchronous system trap (AST) is delivered and no event flag is set. If the lock request is queued successfully but cannot be granted immediately, $ENQ returns the condition value SS$_NORMAL in R0; then when the request is granted, $ENQ sets the event flag and queues an AST if the astadr argument was specified.

LCK$M_SYSTEM When you specify this flag, the resource name is interpreted as systemwide. By default, resource names are qualified by the user identification code (UIC) group number of the creating process. This flag is ignored in lock conversions.

LCK$M_VALBLK When you specify this flag, the lock status block contains a lock value block. The initial value of the lock value block is zero (0). See the description of the lksb argument and the LCK$M_XVALBLK flag for more information.

LCK$M_CONVERT When you specify this flag, $ENQ performs a lock conversion. In this case, the caller must supply (in the second longword of the lock status block) the lock identification of the lock to be converted.

LCK$M_NODLCKWT By specifying this flag, a process indicates to the lock management services that it is not blocked from execution while waiting for the lock request to complete. For example, a lock request might be left outstanding on the waiting queue as a signaling device between processes.
This flag helps to prevent false deadlocks by providing the lock management services with additional information about the process issuing the lock request. When you set this flag, the lock management services do not consider this lock when trying to detect deadlock conditions.

A process should specify the LCK$M_NODLCKWT flag only in a call to the $ENQ system service. The $ENQW system service waits for the lock request to be granted before returning to the caller; therefore, specifying the LCK$M_NODLCKWT flag in a call to the $ENQW system service defeats the purpose of the flag and can result in a genuine deadlock being ignored.
The lock management services make use of the LCK$M_NODLCKWT flag only when the lock specified by the call to $ENQ is in either the waiting or the conversion queue.
Improper use of the LCK$M_NODLCKWT flag can result in the lock management services ignoring genuine deadlocks.

LCK$M_NODLCKBLK By specifying this flag, a process indicates to the lock management services that, if this lock is blocking another lock request, the process intends to give up this lock on demand. When you specify this flag, the lock management services do not consider this lock as blocking other locks when trying to detect deadlock conditions.
A process typically specifies the LCK$M_NODLCKBLK flag only when it also specifies a blocking AST. Blocking ASTs notify processes with granted locks that another process with an incompatible lock mode has been queued to access the same resource. Use of blocking ASTs can cause false deadlocks, because the lock management services detect a blocking condition, even though a blocking AST has been specified; however, the blocking condition will disappear as soon as the process holding the lock executes, receives the blocking AST, and dequeues the lock. Specifying the LCK$M_NODLCKBLK flag prevents this type of false deadlock.
To enable blocking ASTs, the blkast argument of the $ENQ system service must contain the address of a blocking AST service routine. If the process specifies the LCK$M_NODLCKBLK flag, the blocking AST service routine should either dequeue the lock or convert it to a lower lock mode without issuing any new lock requests. If the blocking AST routine does otherwise, a genuine deadlock could be ignored.
The lock management services make use of the LCK$M_NODLCKBLK flag only when the lock specified by the call to $ENQ has been granted.
Improper use of the LCK$M_NODLCKBLK flag can result in the lock management services ignoring genuine deadlocks.

LCK$M_NOQUOTA This flag is reserved by HP. When you set this flag, the calling process is not charged Enqueue Limit (ENQLM) quota for this new lock. The calling process must be running in executive or kernel mode to set this flag. This flag is ignored for lock conversions.

LCK$M_CVTSYS This flag is reserved by HP. When you set this flag, the lock is converted from a process-owned lock to a system-owned lock. The calling process must be running in executive or kernel mode to set this flag.

LCK$M_EXPEDITE This flag is valid only for new lock requests. Specifying this flag allows a request to be granted immediately, provided the requested mode when granted would not block any currently queued requests in the resource conversion and wait queues. Currently, this flag is valid only for NLMODE requests. If this flag is specified for any other lock mode, the request will fail and an error of SS$_UNSUPPORTED will be returned.

LCK$M_QUECVT This flag is valid only for conversion operations. A conversion request with the LCK$M_QUECVT flag set will be forced to wait behind any already queued conversions.
The conversion request is granted immediately, if there are no already queued conversions.
The QUECVT behavior is valid only for a subset of all possible conversions. Table SYS-35 defines the legal set of conversion requests for LCK$M_QUECVT. Illegal conversion requests are failed with SS$_BADPARAM returned.

LCK$M_XVALBLK This flag is valid only if it is used in conjunction with the LCK$M_VALBLK flag. When you specify the LCK$M_XVALBLK flag, you must provide a 64-byte lock value block at the end of the lock states block specified in the lksb argument. If you do not specify this flag, only the first 16 bytes of the lock value block buffer specified as part of the lock status block in the lksb argument will be read or written.
If the value block is written without this flag, the value block will be flagged so that a future reader who specifies the LCK$M_XVALBLK flag in the $ENQ system service call will receive the warning status SS$_XVALNOTVALID until a future writer writes to the value block specifying this flag.

Flag	Description
LCK$M_NOQUEUE	When this flag is specified, $ENQ does not queue the lock request unless the lock can be granted immediately. By default, $ENQ always queues the request. If you specify LCK$M_NOQUEUE in a lock conversion operation and the conversion cannot be granted immediately, the lock remains in the original lock mode.
LCK$M_SYNCSTS	When you specify this flag, $ENQ returns the successful condition value SS$_SYNCH in R0 if the lock request is granted immediately; in this case, no completion asynchronous system trap (AST) is delivered and no event flag is set. If the lock request is queued successfully but cannot be granted immediately, $ENQ returns the condition value SS$_NORMAL in R0; then when the request is granted, $ENQ sets the event flag and queues an AST if the astadr argument was specified.
LCK$M_SYSTEM	When you specify this flag, the resource name is interpreted as systemwide. By default, resource names are qualified by the user identification code (UIC) group number of the creating process. This flag is ignored in lock conversions.
LCK$M_VALBLK	When you specify this flag, the lock status block contains a lock value block. The initial value of the lock value block is zero (0). See the description of the lksb argument and the LCK$M_XVALBLK flag for more information.
LCK$M_CONVERT	When you specify this flag, $ENQ performs a lock conversion. In this case, the caller must supply (in the second longword of the lock status block) the lock identification of the lock to be converted.
LCK$M_NODLCKWT	By specifying this flag, a process indicates to the lock management services that it is not blocked from execution while waiting for the lock request to complete. For example, a lock request might be left outstanding on the waiting queue as a signaling device between processes. This flag helps to prevent false deadlocks by providing the lock management services with additional information about the process issuing the lock request. When you set this flag, the lock management services do not consider this lock when trying to detect deadlock conditions.
	A process should specify the LCK$M_NODLCKWT flag only in a call to the $ENQ system service. The $ENQW system service waits for the lock request to be granted before returning to the caller; therefore, specifying the LCK$M_NODLCKWT flag in a call to the $ENQW system service defeats the purpose of the flag and can result in a genuine deadlock being ignored. The lock management services make use of the LCK$M_NODLCKWT flag only when the lock specified by the call to $ENQ is in either the waiting or the conversion queue. Improper use of the LCK$M_NODLCKWT flag can result in the lock management services ignoring genuine deadlocks.
LCK$M_NODLCKBLK	By specifying this flag, a process indicates to the lock management services that, if this lock is blocking another lock request, the process intends to give up this lock on demand. When you specify this flag, the lock management services do not consider this lock as blocking other locks when trying to detect deadlock conditions. A process typically specifies the LCK$M_NODLCKBLK flag only when it also specifies a blocking AST. Blocking ASTs notify processes with granted locks that another process with an incompatible lock mode has been queued to access the same resource. Use of blocking ASTs can cause false deadlocks, because the lock management services detect a blocking condition, even though a blocking AST has been specified; however, the blocking condition will disappear as soon as the process holding the lock executes, receives the blocking AST, and dequeues the lock. Specifying the LCK$M_NODLCKBLK flag prevents this type of false deadlock. To enable blocking ASTs, the blkast argument of the $ENQ system service must contain the address of a blocking AST service routine. If the process specifies the LCK$M_NODLCKBLK flag, the blocking AST service routine should either dequeue the lock or convert it to a lower lock mode without issuing any new lock requests. If the blocking AST routine does otherwise, a genuine deadlock could be ignored. The lock management services make use of the LCK$M_NODLCKBLK flag only when the lock specified by the call to $ENQ has been granted. Improper use of the LCK$M_NODLCKBLK flag can result in the lock management services ignoring genuine deadlocks.
LCK$M_NOQUOTA	This flag is reserved by HP. When you set this flag, the calling process is not charged Enqueue Limit (ENQLM) quota for this new lock. The calling process must be running in executive or kernel mode to set this flag. This flag is ignored for lock conversions.
LCK$M_CVTSYS	This flag is reserved by HP. When you set this flag, the lock is converted from a process-owned lock to a system-owned lock. The calling process must be running in executive or kernel mode to set this flag.
LCK$M_EXPEDITE	This flag is valid only for new lock requests. Specifying this flag allows a request to be granted immediately, provided the requested mode when granted would not block any currently queued requests in the resource conversion and wait queues. Currently, this flag is valid only for NLMODE requests. If this flag is specified for any other lock mode, the request will fail and an error of SS$_UNSUPPORTED will be returned.
LCK$M_QUECVT	This flag is valid only for conversion operations. A conversion request with the LCK$M_QUECVT flag set will be forced to wait behind any already queued conversions. The conversion request is granted immediately, if there are no already queued conversions. The QUECVT behavior is valid only for a subset of all possible conversions. Table SYS-35 defines the legal set of conversion requests for LCK$M_QUECVT. Illegal conversion requests are failed with SS$_BADPARAM returned.
LCK$M_XVALBLK	This flag is valid only if it is used in conjunction with the LCK$M_VALBLK flag. When you specify the LCK$M_XVALBLK flag, you must provide a 64-byte lock value block at the end of the lock states block specified in the lksb argument. If you do not specify this flag, only the first 16 bytes of the lock value block buffer specified as part of the lock status block in the lksb argument will be read or written. If the value block is written without this flag, the value block will be flagged so that a future reader who specifies the LCK$M_XVALBLK flag in the $ENQ system service call will receive the warning status SS$_XVALNOTVALID until a future writer writes to the value block specifying this flag.

Table SYS-35 Legal QUECVT Conversions
Lock Mode Lock Mode to Which Lock Is Converted

at Which
Lock Is Held NL CR CW PR PW EX

NL No Yes Yes Yes Yes Yes

CR No No Yes Yes Yes Yes

CW No No No Yes Yes Yes

PR No No Yes No Yes Yes

PW No No No No No Yes

EX No No No No No No

**Table SYS-35 Legal QUECVT Conversions**
Lock Mode	Lock Mode to Which Lock Is Converted
at Which Lock Is Held	NL	CR	CW	PR	PW	EX
NL	No	Yes	Yes	Yes	Yes	Yes
CR	No	No	Yes	Yes	Yes	Yes
CW	No	No	No	Yes	Yes	Yes
PR	No	No	Yes	No	Yes	Yes
PW	No	No	No	No	No	Yes
EX	No	No	No	No	No	No

Key to Lock Modes

NL---Null lock
CR---Concurrent read
CW---Concurrent write
PR---Protected read
PW---Protected write
EX---Exclusive lock

resnam

OpenVMS usage:	char_string
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the resource to be locked by this lock. The resnam argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of a character string descriptor pointing to this name. The name string can be from 1 to 31 bytes in length.

If you are creating a new lock, the resnam argument should be specified because the default value for the resnam argument produces an error when it is used to create a lock. The resnam argument is ignored for lock conversions.

parid

OpenVMS usage:	lock_id
type:	longword (unsigned)
access:	read only
mechanism:	by value

Lock identification of the parent lock. The parid argument is a longword containing this identification value.

If you do not specify this argument or specify it as 0, $ENQ assumes that the lock does not have a parent lock. This argument is optional for new locks and is ignored for lock conversions.

astadr

OpenVMS usage:	ast_procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by 32- or 64-bit reference (Alpha and I64)
mechanism:	by 32-bit reference (VAX)

AST service routine to be executed when the lock is either granted or converted. The astadr argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of this routine. The AST is also delivered when the lock or conversion request is canceled. Cancellation occurs if you use $DEQ with the cancel modifier or if the waiting request is chosen to break a deadlock.

If you specify the astadr argument, the AST routine executes at the same access mode as the caller of $ENQ.

astprm

OpenVMS usage:	user_arg
type:	quadword (unsigned)
access:	read only
mechanism:	by value

AST parameter to be passed to the AST routine specified by the astadr argument. The astprm argument specifies this quadword parameter.

blkast

OpenVMS usage:	ast_procedure
type:	procedure value
access:	call without stack unwinding
mechanism:	by 32- or 64-bit reference (Alpha and I64)
mechanism:	by 32-bit reference (VAX)

Blocking AST routine to be called whenever this lock is granted and is blocking any other lock requests. The blkast argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of this routine. Locks that are converting to a new mode, but that are not yet granted in the new mode, do not receive blocking ASTs.

You can pass a parameter to this routine by using the astprm argument.

acmode

OpenVMS usage:	access_mode
type:	longword (unsigned)
access:	read only
mechanism:	by value

Access mode to be associated with the resource name. The acmode argument indicates the least privileged access mode from which locks can be queued on the resource.

This argument does not affect the access mode associated with the lock or its blocking and completion ASTs. The acmode argument is a longword containing the access mode. The $PSLDEF macro defines the following symbols for the four access modes:

Symbol Access Mode

PSL$C_KERNEL Kernel

PSL$C_EXEC Executive

PSL$C_SUPER Supervisor

PSL$C_USER User

Symbol	Access Mode
PSL$C_KERNEL	Kernel
PSL$C_EXEC	Executive
PSL$C_SUPER	Supervisor
PSL$C_USER	User

The $ENQ service associates an access mode with the lock in the following way:

If you specified a parent lock (with the parid argument), $ENQ uses the access mode associated with the parent lock and ignores both the acmode argument and the caller's access mode.
If the lock has no parent lock (you did not specify the parid argument or specified it as 0), $ENQ uses the least privileged of the caller's access mode and the access mode specified by the acmode argument. If you do not specify the acmode argument, $ENQ uses the caller's access mode.

rsdm_id

OpenVMS usage:	longword
type:	longword (unsigned)
access:	read only
mechanism:	by value

Resource domain identification. The rsdm_id argument is a longword specifying the resource domain association through which a new lock is to be taken. This argument is ignored for lock conversions and sublocks (parid is nonzero). Valid resource domain identifiers are returned from the $SET_RESOURCE_DOMAIN service, or by the constants RSDM$K_SYSTEM_RSDM_ID or RSDM$K_PROCESS_RSDM_ID, which are defined by the $RSDMDEF macro in STARLET.

nullarg

OpenVMS usage:	null_arg
type:	longword (unsigned)
access:	read only
mechanism:	by value

Placeholding argument reserved by HP.

Description

The Enqueue Lock Request service queues a new lock or lock conversion on a resource. The $ENQ service completes asynchronously; that is, it returns to the caller after queuing the lock request without waiting for the lock to be either granted or converted. For synchronous completion, use the Enqueue Lock Request and Wait ($ENQW) service. The $ENQW service is identical to the $ENQ service in every way except that $ENQW returns to the caller when the lock is either granted or converted.
The $ENQ service uses system dynamic memory for the creation of the lock and resource blocks.
When $ENQ queues a lock request, it returns the status of the request in R0 and writes the lock identification of the lock in the lock status block. Then, when the lock request is granted, $ENQ writes the final completion status in the lock status block, sets the event flag, and calls the AST routine if this has been requested.
When $ENQW queues a lock request, it returns status in R0 and in the lock status block when the lock has been either granted or converted. Where applicable, it simultaneously sets the event flag and calls the AST routine.
Invalidation of the Lock Value Block

In some situations, the lock value block can become invalid. In these situations, $ENQ warns the caller by returning the condition value SS$_VALNOTVALID in the lock status block, provided the caller has specified the flag LCK$M_VALBLK in the flags argument.
The SS$_VALNOTVALID condition value is a warning message, not an error message; therefore, the $ENQ service grants the requested lock and returns this warning on all subsequent calls to $ENQ until either a new lock value block is written to the lock database or the resource is deleted. Resource deletion occurs when no locks are associated with the resource.
The following events can cause the lock value block to become invalid:

If any process holding a protected write or exclusive mode lock on a resource is terminated abnormally or exits before explicitly dequeuing the lock or converting it to a lover-level lock mode, the lock value block becomes invalid.
If a process holding a protected write or exclusive mode lock on the resource calls the Dequeue Lock Request ($DEQ) service to dequeue this lock and specifies the flag LCK$M_INVVALBLK in the flags argument, the lock value block maintained in the lock database is marked invalid.
If a node in an OpenVMS Cluster system fails, and a process on that node was holding or might have been holding a protected write or exclusive mode lock on the resource, the lock value block becomes invalid.
This situation is dependant on which cluster node is the master node for the resource. The following describes the two ways in which this situation can arise:

If a node was holding a protected write or exclusive mode lock on the resource:
If the node that failed was not the master of the resource tree, the master node will know what locks were held by the node that failed. These locks will be removed from the resource and if a removed lock was for protected write or exclusive mode, the lock value block becomes in valid.
If a node might have been holding a protected write or exclusive mode lock on the resource:
If the node that failed was the master of the resource, a remaining node in the cluster will become the new master. If the new master finds that all granted locks on the resource were for null mode locks or for concurrent read locks, or for both, then the new master does not know if the failed node held a protected write or exclusive mode lock. The lock value block will be set to invalid in this case.
If the resource has any granted lock with a mode other than null mode or concurrent read, then the failed node could not have held a protected write or exclusive mode lock, and the lock value block will not be marked as invalid.

Invalidation of the Extended Lock Value Block

The extended lock value block can be marked invalid in the following situations:

If a program updates the lock block specifying only LCK$M_VALBLK without LCK$M_XVALBLK, only the first 16 bytes of the lock value block will be written. The remaining 48 bytes will not be modified. A reader who, in the future, specifies the LCK$M_XVALBLK flag in the $ENQ system service call will be be given all 64 bytes but will receive the warning status SS$_XVALNOTVALID flag.
In a cluster with VAX nodes or nodes using versions of OpenVMS prior to Version 8.2, if a program running on one of the VAX or older version nodes writes to the value block, only the first 16 bytes of the lock value block will be written. As long as the resource is mastered on a newer Alpha or I64 system, the remaining 48 bytes will not be modified. A reader who, in the future, writes to the value block specifying the LCK$M_XVALBLK flag in the $ENQ system service call will be given all 64 bytes but will receive the warning status SS$_XVALNOTVALID flag until a writer writes to the value block specifying the LCK$M_XVALBLK flag.
The last 48 bytes value block will be lost if a resource is mastered on or remastered to a VAX or older-version node. In this case, a reader who specifies the LCK$XVALBLK flag in the $ENQ system service call will be given the first 16 bytes followed by 48 bytes of zeroes and will receive the warning status SS$_XVALNOTVALID until a writer writes to the value block specifying the LCK$M_XVALBLK flag.

In all of these cases, if the entire lock status block is invalid as described in Invalidation of the Lock Value Block, the SS$_VALNOTVALID status will be returned, overriding the SS$_XVALNOTVALID status.
Required Access or Privileges

To queue a lock on a systemwide resource, the calling process must either have SYSLCK privilege or be executing in executive or kernel mode.
To specify a parent lock when queuing a lock, the access mode of the caller must be equal to, or less privileged than, the access mode associated with the parent lock.
To queue a lock conversion, the access mode associated with the lock being converted must be equal to, or less privileged than, the access mode of the calling process.
Required Quota

Enqueue limit (ENQLM) quota
AST limit (ASTLM) quota in lock conversion requests that you specify either the astadr or blkast argument

Related Services

$DEQ, $ENQW, $GETLKI, $GETLKIW, $SET_RESOURCE_DOMAIN

Condition Values Returned

SS$_NORMAL The service completed successfully; the lock request was successfully queued.

SS$_SYNCH The service completed successfully; the LCK$M_SYNCSTS flag in the flags argument was specified, and $ENQ was able to grant the lock request immediately.

SS$_ACCVIO The lock status block or the resource name cannot be read.

SS$_BADPARAM You specified an invalid lock mode in the lkmode argument.

SS$_CVTUNGRANT You attempted a lock conversion on a lock that is not currently granted.

SS$_EXDEPTH The limit of levels of sublocks has been exceeded.

SS$_EXENQLM The process has exceeded its enqueue limit (ENQLM) quota.

SS$_INSFMEM The system dynamic memory is insufficient for creating the necessary data structures.

SS$_IVBUFLEN The length of the resource name was either 0 or greater than 31.

SS$_IVLOCKID You specified an invalid or nonexistent lock identification, or the lock identified by the lock identification has an associated access mode that is more privileged than the caller's, or the access mode of the parent was less privileged than that of the caller.

SS$_NOLOCKID No lock identification was available for the lock request.

SS$_NOSYSLCK The LCK$M_SYSTEM flag in the flags argument was specified, but the caller lacks the necessary SYSLCK privilege.

SS$_NOTQUEUED The lock request was not queued; the LCK$M_NOQUEUE flag in the flags argument was specified, and $ENQ was not able to grant the lock request immediately.

SS$_PARNOTGRANT The parent lock specified in the parid argument was not granted.

Condition Values Returned in the Lock Status Block

SS$_NORMAL The service completed successfully; the lock was successfully granted or converted.

SS$_ABORT The lock was dequeued (by the $DEQ service) before $ENQ could grant the lock.

SS$_CANCEL The lock conversion request has been canceled and the lock has been regranted at its previous lock mode. This condition value is returned when $ENQ queues a lock conversion request, the request has not been granted yet (it is in the conversion queue), and, in the interim, the $DEQ service is called (with the LCK$M_CANCEL flag specified) to cancel this lock conversion request. If the lock is granted before $DEQ can cancel the conversion request, the call to $DEQ returns the condition value SS$_CANCELGRANT, and the call to $ENQ returns SS$_NORMAL.

SS$_DEADLOCK A deadlock was detected.

SS$_ILLRSDM The operation attempted is not allowed on the resource. Use SHOW SECURITY to verify the access allowed to the specified resource domain.

SS$_NODOMAIN The RSDM_ID argument passed to the $ENQ call either does not correspond to a valid resource domain for your process, or the system is not running the audit server process.

SS$_VALNOTVALID The lock value block is marked invalid. This warning message is returned only if the caller has specified the flag LCK$M_VALBLK in the flags argument. Note that the lock has been successfully granted despite the return of this warning message. For a complete discussion of lock value block invalidation, see the Description section.

SS$_XVALNOTVALID The extended value block has been marked invalid because the previous writer has written the value block without specifying the LCK$M_XVALBLK flag. This warning message is returned only if the caller has specified the LCK$M_XVALBLK flag in the flags argument. Note that the lock is successfully granted despite the return of this warning message.
For a detailed discussion of extended lock value block invalidation, see the section Invalidation of the Extended Lock Value Block.

Contents

Index

SS$_NORMAL	The service completed successfully; the lock request was successfully queued.
SS$_SYNCH	The service completed successfully; the LCK$M_SYNCSTS flag in the flags argument was specified, and $ENQ was able to grant the lock request immediately.
SS$_ACCVIO	The lock status block or the resource name cannot be read.
SS$_BADPARAM	You specified an invalid lock mode in the lkmode argument.
SS$_CVTUNGRANT	You attempted a lock conversion on a lock that is not currently granted.
SS$_EXDEPTH	The limit of levels of sublocks has been exceeded.
SS$_EXENQLM	The process has exceeded its enqueue limit (ENQLM) quota.
SS$_INSFMEM	The system dynamic memory is insufficient for creating the necessary data structures.
SS$_IVBUFLEN	The length of the resource name was either 0 or greater than 31.
SS$_IVLOCKID	You specified an invalid or nonexistent lock identification, or the lock identified by the lock identification has an associated access mode that is more privileged than the caller's, or the access mode of the parent was less privileged than that of the caller.
SS$_NOLOCKID	No lock identification was available for the lock request.
SS$_NOSYSLCK	The LCK$M_SYSTEM flag in the flags argument was specified, but the caller lacks the necessary SYSLCK privilege.
SS$_NOTQUEUED	The lock request was not queued; the LCK$M_NOQUEUE flag in the flags argument was specified, and $ENQ was not able to grant the lock request immediately.
SS$_PARNOTGRANT	The parent lock specified in the parid argument was not granted.

SS$_NORMAL	The service completed successfully; the lock was successfully granted or converted.
SS$_ABORT	The lock was dequeued (by the $DEQ service) before $ENQ could grant the lock.
SS$_CANCEL	The lock conversion request has been canceled and the lock has been regranted at its previous lock mode. This condition value is returned when $ENQ queues a lock conversion request, the request has not been granted yet (it is in the conversion queue), and, in the interim, the $DEQ service is called (with the LCK$M_CANCEL flag specified) to cancel this lock conversion request. If the lock is granted before $DEQ can cancel the conversion request, the call to $DEQ returns the condition value SS$_CANCELGRANT, and the call to $ENQ returns SS$_NORMAL.
SS$_DEADLOCK	A deadlock was detected.
SS$_ILLRSDM	The operation attempted is not allowed on the resource. Use SHOW SECURITY to verify the access allowed to the specified resource domain.
SS$_NODOMAIN	The RSDM_ID argument passed to the $ENQ call either does not correspond to a valid resource domain for your process, or the system is not running the audit server process.
SS$_VALNOTVALID	The lock value block is marked invalid. This warning message is returned only if the caller has specified the flag LCK$M_VALBLK in the flags argument. Note that the lock has been successfully granted despite the return of this warning message. For a complete discussion of lock value block invalidation, see the Description section.
SS$_XVALNOTVALID	The extended value block has been marked invalid because the previous writer has written the value block without specifying the LCK$M_XVALBLK flag. This warning message is returned only if the caller has specified the LCK$M_XVALBLK flag in the flags argument. Note that the lock is successfully granted despite the return of this warning message. For a detailed discussion of extended lock value block invalidation, see the section Invalidation of the Extended Lock Value Block.
