The Intra-Cluster Communications Reply and Wait service transmits a single message over a connection in response to a $ICC_TRANSCEIVE[W] request.The $ICC_REPLYW service completes synchronously; that is, it returns to the caller when the underlying transport layer has released use of the reply buffer.
For asynchronous completion, use the $ICC_REPLY service; $ICC_REPLY returns to the caller as soon as the transmission request has been queued to the transport layer, without waiting for notification that the transport layer has released control of the data buffer.
On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$ICC_REPLYW conn_handle, ios_icc, [astadr], [astprm], reply_buf, reply_len
sys$icc_replyw (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *reply_buf, unsigned int reply_len);
Sends a single message over a connection and then waits for a reply.On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$ICC_TRANSCEIVE conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len
sys$icc_transceive (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);
conn_handle
OpenVMS usage: connection_id type: longword (unsigned) access: read only mechanism: by value
The handle of the fully established (open) connection.ios_icc
OpenVMS usage: io_status_block type: five longwords (unsigned) access: modify mechanism: by 32-bit or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)

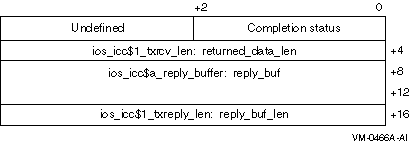

I/O status block:
Completion status values:
SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_BUFOVFL, SS$_LINKABORT, SS$_LINKDISCON
| OpenVMS usage: | ast_procedure |
| type: | procedure_entry_mask |
| access: | call without stack unwinding |
| mechanism: | by 32-bit or 64-bit linkage reference (Alpha and I64); by 32-bit reference (VAX) |
| OpenVMS usage: | user_arg |
| type: | quadword (unsigned) (Alpha and I64); longword (unsigned) (VAX) |
| access: | read only |
| mechanism: | by 64-bit value (Alpha and I64); by 32-bit value (VAX) |
| OpenVMS usage: | byte_stream |
| type: | character-coded text string |
| access: | read only |
| mechanism: | by 32-bit or 64-bit reference (Alpha and I64); by 32-bit reference (VAX) |
| OpenVMS usage: | buffer size |
| type: | longword (unsigned) |
| access: | read only |
| mechanism: | by value |
IOS_ICC Arguments:
| OpenVMS usage: | longword_unsigned |
| type: | longword (unsigned) |
| access: | write only |
| mechanism: | by value |
| OpenVMS usage: | byte_stream |
| type: | character-coded text string |
| access: | write only |
| mechanism: | by 32-bit or 64-bit reference (Alpha and I64); by 32-bit reference (VAX) |
| OpenVMS usage: | buffer_size |
| type: | longword (unsigned) |
| access: | read only |
| mechanism: | by value |
This service sends a single message over a connection and then waits for a reply. When completion is signaled by calling the AST (if supplied), the data has been delivered to the application at the other end of the connection and that application has delivered a reply, now present in the reply buffer. The user can reuse the send and reply buffers after completion.For efficiency reasons, the number of parameters on this routine has been limited to six parameters. Three additional parameters are passed by the ios_icc data structure.
None.
BYTLM (Send and Reply buffers)
$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW, $ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE, $ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLY, $ICC_REPLYW, $ICC_TRANSCEIVEW, $ICC_TRANSMIT, $ICC_TRANSMITW
SS$_NORMAL Normal completion. SS$_ACCVIO Access violation on parameter. SS$_BADPARAM Bad parameter value specified. SS$_EXBYTLM Insufficient byte count quota. SS$_INSFARG Too few arguments were supplied. SS$_INSFMEM Insufficient process or system memory to complete the request. SS$_IVCHAN Unknown connection specified or invalid connection handle. SS$_IVMODE Attempted to use a connection from a more privileged access mode than the mode in which it was opened. SS$_LINKDISCON An Incoming disconnect event is in progress. SS$_SYNCH If synchronous mode was requested at connection time, this return value indicates that completion has already occurred and the AST routine, if specified, will not be called. SS$_TOO_MANY_ARGS Too many arguments were specified. SS$_WRONGSTATE Connection is in wrong state for request.
Sends a single message over a connection and waits for a reply.The $ICC_TRANSCEIVEW service completes synchronously; that is, it returns to the caller when the data from the reply is available.
For asynchronous completion, use the $ICC_TRANSCEIVE service; $ICC_TRANSCEIVE returns to the caller when the transmit portion of the tranceive request has been queued to the transport layer, but without waiting for notification that the transport layer has released control of the data buffer or for the reply data from the receiving end of the connection.
On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$ICC_TRANSCEIVEWconn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len
sys$icc_transceivew (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);
Sends a single message over a connection.On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$ICC_TRANSMIT conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len
sys$icc_transmit (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);
conn_handle
OpenVMS usage: connection_id type: longword (unsigned) access: read only mechanism: by value
The handle of the fully established (open) connection to send the data over.ios_icc
OpenVMS usage: ios_status_block type: structure IOS_ICC access: write only mechanism: by 32-bit or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)
I/O status block:
Completion status values:
SS$_NORMAL, SS$_EXQUOTA, SS$_INSFMEM, SS$_LINKABORT, SS$_LINKDISCON
| OpenVMS usage: | ast_procedure |
| type: | procedure_entry_mask |
| access: | call without stack unwinding |
| mechanism: | by 32-bit or 64-bit linkage reference (Alpha and I64); by 32-bit reference (VAX) |
| OpenVMS usage: | user_arg |
| type: | quadword (unsigned) (Alpha and I64); longword (unsigned) (VAX) |
| access: | read only |
| mechanism: | by 64-bit value (Alpha and I64); by 32-bit value (VAX) |
| OpenVMS usage: | byte_stream |
| type: | character-coded text string |
| access: | read only |
| mechanism: | by 32-bit or 64-bit reference (Alpha and I64); by 32-bit reference (VAX) |
| OpenVMS usage: | buffer_length |
| type: | longword (unsigned) |
| access: | read only |
| mechanism: | by value |
This service sends a single message over a connection. When completion is signalled by calling the AST (if supplied), the data has been delivered to the communications system, but not necessarily to the system or application at the other end of the connection. After completion, the user can reuse the buffer.Alternatively, if the synchronous completion option was requested at connection time, the service may return the optional success status, SS$_SYNCH. When SS$_SYNCH is returned, completion has occurred, and no AST will be delivered.
None.
BYTLM (send_buf)
$ICC_ACCEPT, $ICC_CLOSE_ASSOC, $ICC_CONNECT, $ICC_CONNECTW, $ICC_DISCONNECT, $ICC_DISCONNECTW, $ICC_OPEN_ASSOC, $ICC_RECEIVE, $ICC_RECEIVEW, $ICC_REJECT, $ICC_REPLY, $ICC_REPLYW, $ICC_TRANSCEIVE, $ICC_TRANSCEIVEW, $ICC_TRANSMITW
SS$_NORMAL Normal completion. SS$_ACCVIO Access violation on parameter. SS$_BADPARAM Bad parameter value specified. SS$_EXBYTLM Insufficient byte count quota. SS$_INSFARG Too few arguments were supplied. SS$_INSFMEM Insufficient process or system memory to complete the request. SS$_IVCHAN Unknown connection specified or invalid connection handle. SS$_IVMODE Attempted to use a connection from a more privileged access mode than the mode in which it was opened. SS$_LINKDISCON An Incoming disconnect event is in progress. SS$_SYNCH If synchronous mode was requested at connection time, this return value indicates that completion has already occurred and the AST routine, if specified, will not be called. SS$_TOO_MANY_ARGS Too many arguments were specified. SS$_WRONGSTATE Connection is in the wrong state for the request.
Sends a single message over a connection.The $ICC_TRANSMITW service completes synchronously; that is, it returns to the caller when the underlying transport layer has released use of the Transmit buffer. This does not mean that the data has been received by the partner application.
For asynchronous completion, use the $ICC_TRANSMIT service. The $ICC_TRANSMIT service returns to the caller as soon as the transmission request has been queued to the transport layer, without waiting for notification that the transport layer has released control of the data buffer.
On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$ICC_TRANSMITW conn_handle ,ios_icc ,[astadr] ,[astprm] ,send_buf ,send_len
sys$icc_transmitw (unsigned int conn_handle, struct _ios_icc *ios_icc, void (*astadr)(__unknown_params), __int64 astprm, char *send_buf, unsigned int send_len);
Translates the specified identifier value to its identifier name.On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$IDTOASC id ,[namlen] ,[nambuf] ,[resid] ,[attrib] ,[contxt]
int sys$idtoasc (unsigned int id, unsigned short int *namlen, void *nambuf, unsigned int *resid, unsigned int *attrib, unsigned int *contxt);
id
OpenVMS usage: rights_id type: longword (unsigned) access: read only mechanism: by value
Binary identifier value translated by $IDTOASC. The id argument is a longword containing the binary value of the identifier. To determine the identifier names of all identifiers in the rights database, you specify id as --1 and call $IDTOASC repeatedly until it returns the status code SS$_NOSUCHID. The identifiers are returned in alphabetical order.namlen
OpenVMS usage: word_unsigned type: word (unsigned) access: write only mechanism: by 32- or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)
Number of characters in the identifier name translated by $IDTOASC. The namlen argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of a word containing the length of the identifier name written to nambuf.nambuf
OpenVMS usage: char_string type: character-coded text string access: write only mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64); by 32-bit descriptor--fixed-length string descriptor (VAX)
Identifier name text string returned when $IDTOASC completes the translation. The nambuf argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of a descriptor pointing to the buffer in which the identifier name is written.resid
OpenVMS usage: rights_id type: longword (unsigned) access: write only mechanism: by 32- or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)
Identifier value of the identifier name returned in nambuf. The resid argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of a longword containing the 32-bit code of the identifier.attrib
OpenVMS usage: mask_longword type: longword (unsigned) access: write only mechanism: by by 32- or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)
Mask of attributes associated with the identifier returned in resid. The attrib argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of a longword containing the attribute mask.Symbol values are offsets to the bits within the longword. You can also obtain the values as masks with the appropriate bit set using the prefix KGB$M rather than KGB$V. The following symbols for each bit position are defined in the system macro library ($KGBDEF):
Bit Position Meaning When Set KGB$V_DYNAMIC Allows holders of the identifier to remove it from or add it to the process rights list using the DCL command SET RIGHTS_LIST. KGB$V_NAME_HIDDEN Allows holders of an identifier to have it translated, either from binary to ASCII or vice versa, but prevents unauthorized users from translating the identifier. KGB$V_NOACCESS Makes any access rights of the identifier null and void. This attribute is intended as a modifier for a resource identifier or the Subsystem attribute. KGB$V_RESOURCE Allows holders of an identifier to charge disk space to the identifier. It is used only for file objects. KGB$V_SUBSYSTEM Allows holders of the identifier to create and maintain protected subsystems by assigning the Subsystem ACE to the application images in the subsystem. contxt
OpenVMS usage: context type: longword (unsigned) access: modify mechanism: by 32- or 64-bit reference (Alpha and I64); by 32-bit reference (VAX)
Context value used when repeatedly calling $IDTOASC. The contxt argument is the 32- or 64-bit address (on Alpha and I64 systems) or the 32-bit address (on VAX systems) of a longword used while $IDTOASC searches for all identifiers. The context value must be initialized to the value 0, and the resulting context of each call to $IDTOASC must be presented to each subsequent call. After contxt is passed to $IDTOASC, you must not modify its value.
The Translate Identifier to Identifier Name service translates the specified binary identifier value to an identifier name. While the primary purpose of this service is to translate the specified identifier to its name, you can also use it to find all identifiers in the rights database. Owner or read access to the rights database is required. To determine all the identifiers, call $IDTOASC repeatedly until it returns the status code SS$_NOSUCHID. When SS$_NOSUCHID is returned, $IDTOASC has returned all the identifiers, cleared the context value, and deallocated the record stream.If you complete your calls to $IDTOASC before SS$_NOSUCHID is returned, use $FINISH_RDB to clear the context value and deallocate the record stream.
When you use wildcards with this service, the records are returned in identifier name order.
None, unless the id argument is NAME_HIDDEN, in which case you must hold the identifier or have read access to the rights list.
None
$ADD_HOLDER, $ADD_IDENT, $ASCTOID, $CHECK_ACCESS, $CHKPRO, $CREATE_RDB, $ERAPAT, $FIND_HELD, $FIND_HOLDER, $FINISH_RDB, $FORMAT_ACL, $FORMAT_AUDIT, $GET_SECURITY, $GRANTID, $HASH_PASSWORD, $MOD_HOLDER, $MOD_IDENT, $MTACCESS, $PARSE_ACL, $REM_HOLDER, $REM_IDENT, $REVOKID, $SET_SECURITY
SS$_NORMAL The service completed successfully. SS$_ACCVIO The namlen, nambuf, resid, attrib, or contxt argument cannot be written by the caller. SS$_INSFMEM The process dynamic memory is insufficient for opening the rights database. SS$_IVCHAN The contents of the context longword are not valid. SS$_IVIDENT The specified identifier is of invalid format. SS$_NOIOCHAN No more rights database context streams are available. SS$_NORIGHTSDB The rights database does not exist. SS$_NOSUCHID The specified identifier name does not exist in the rights database, or the entire rights database has been searched if the ID is --1.
Because the rights database is an indexed file that you access with OpenVMS RMS, this service can also return RMS status codes associated with operations on indexed files. For descriptions of these status codes, refer to the OpenVMS Record Management Services Reference Manual.
