The Get Resource Monitor Information service returns performance information about the local system.None.
This service uses the process's AST limit quota (ASTLM).
None.
SS$_NORMAL The service completed successfully. SS$_ACCVIO The caller cannot read the item list, cannot write to the buffer specified by the buffer address field in the item descriptor, or cannot write to the return length address field in an item descriptor. SS$_BADPARAM The item list contains an invalid item code. SS$_EXASTLM The process has exceeded its AST limit quota.
Returns information about the local system or about other systems in an OpenVMS Cluster system. The $GETSYI service completes asynchronously; for synchronous completion, use the Get Systemwide Information and Wait ($GETSYIW) service.For additional information about system service completion, see the Synchronize ($SYNCH) service.
On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$GETSYI [efn] ,[csidadr] ,[nodename] ,itmlst [,iosb] [,astadr] [,astprm]
int sys$getsyi (unsigned int efn, unsigned int *csidadr, void *nodename, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), unsigned __int64 astprm);
efn
OpenVMS usage: ef_number type: longword (unsigned) access: read only mechanism: by value
Number of the event flag to be set when the $GETSYI request completes. The efn argument is a longword containing this number; however, $GETSYI uses only the low-order byte.Upon request initiation, $GETSYI clears the specified event flag (or event flag 0 if efn was not specified). Then, when the request completes, the specified event flag (or event flag 0) is set.
HP strongly recommends the use of the EFN$C_ENF "no event flag" value as the event flag if you are not using an event flag to externally synchronize with the completion of this system service call. The $EFNDEF macro defines EFN$C_ENF. For more information, see the HP OpenVMS Programming Concepts Manual.
csidadr
OpenVMS usage: process_id type: longword (unsigned) access: modify mechanism: by 32- or 64-bit reference (Alpha and I64) mechanism: by 32-bit reference (VAX)
OpenVMS Cluster system identification of the node about which $GETSYI is to return information. The csidadr argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a longword containing this identification value.The cluster-connection software assigns the OpenVMS Cluster system identification of a node. You can obtain this information by using the DCL command SHOW CLUSTER. The value of the cluster system identification for a node is not permanent; a new value is assigned to a node whenever it joins or rejoins the cluster.
You can also specify a node to $GETSYI by using the nodename argument. If you specify csidadr, you need not specify nodename, and vice versa. If you specify both, they must identify the same node. If you specify neither argument, $GETSYI returns information about the local node; however, for wildcard operations, you must use the csidadr argument.
If you specify csidadr as --1, $GETSYI assumes a wildcard operation and returns the requested information for each node in the cluster, one node per call. In this case, the program should test for the condition value SS$_NOMORENODE after each call to $GETSYI and should stop calling $GETSYI when SS$_NOMORENODE is returned.
nodename
OpenVMS usage: process_name type: character-coded text string access: read only mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64) mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)
Name of the node about which $GETSYI is to return information. The nodename argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a character string descriptor pointing to this name string.The node name string must contain from 1 to 15 characters and must correspond exactly to the node name; no trailing blanks or abbreviations are permitted.
You can also specify a node to $GETSYI by using the csidadr argument. See the description of csidadr.
itmlst
OpenVMS usage: 32-bit item_list_3 or 64-bit item_list_64b type: longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit access: read only mechanism: by 32- or 64-bit reference (Alpha and I64) mechanism: by 32-bit reference (VAX)
Item list specifying which information is to be returned about the node or nodes. The itmlst argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a list of item descriptors, each of which describes an item of information. An item list in 32-bit format is terminated by a longword of 0; an item list in 64-bit format is terminated by a quadword of 0. All items in an item list must be of the same format---either 32-bit or 64-bit.The following diagram depicts the 32-bit format of a single item descriptor:

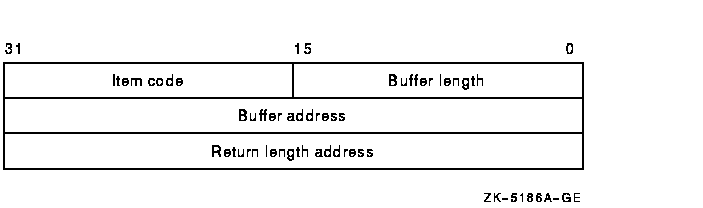

The following table defines the item descriptor fields for 32-bit item list entries:
| Descriptor Field | Definition |
|---|---|
| Buffer length | A word containing a user-supplied integer specifying the length (in bytes) of the buffer in which $GETSYI is to write the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor. If the value of the buffer length field is too small, $GETSYI truncates the data. |
| Item code | A word containing a user-supplied symbolic code specifying the item of information that $GETSYI is to return. The $SYIDEF macro defines these codes. A description of each item code is given in the Item Codes section. |
| Buffer address | A longword containing the user-supplied 32-bit address of the buffer into which $GETSYI is to write the information. |
| Return length address | A longword containing the user-supplied 32-bit address of a word in which $GETSYI writes the length in bytes of the information it actually returned. |

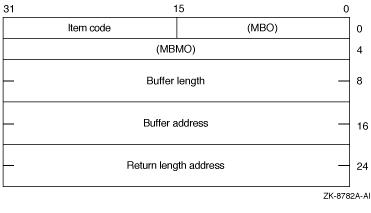

The following diagram depicts the 64-bit format of a single item descriptor:
The following table defines the item descriptor fields for 64-bit item list entries:
| Descriptor Field | Definition |
|---|---|
| MBO | The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries. |
| Item code | A word containing a user-supplied symbolic code specifying the item of information that $GETSYI is to return. The $SYIDEF macro defines these codes. A description of each item code is given in the Item Codes section. |
| MBMO | The field must contain a --1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries. |
| Buffer length | A quadword containing a user-supplied integer specifying the length (in bytes) of the buffer in which $GETSYI is to write the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor. If the value of the buffer length is too small, $GETSYI truncates the data. |
| Buffer address | A quadword containing the user-supplied 64-bit address of the buffer into which $GETSYI is to write the information. |
| Return length address | A quadword containing the user-supplied 64-bit address of a word in which $GETSYI writes the length in bytes of the information it actually returned. |
See the Item Codes section for a description of the various $GETSYI item codes.
| OpenVMS usage: | io_status_block |
| type: | quadword (unsigned) |
| access: | write only |
| mechanism: | by 32- or 64-bit reference (Alpha and I64) |
| mechanism: | by 32-bit reference (VAX) |
When you specify the iosb argument, $GETSYI sets the quadword to 0 upon request initiation. Upon request completion, a condition value is returned to the first longword; the second longword is reserved for future use.
Though this argument is optional, HP strongly recommends that you specify it, for the following reasons:
| OpenVMS usage: | ast_procedure |
| type: | procedure value |
| access: | call without stack unwinding |
| mechanism: | by 32- or 64-bit reference (Alpha and I64) |
| mechanism: | by 32-bit reference (VAX) |
If you specify astadr, the AST routine executes at the same access mode as the caller of the $GETSYI service.
| OpenVMS usage: | user_arg |
| type: | longword (unsigned) |
| access: | read only |
| mechanism: | by value |
SYI$_ACTIVE_CPU_BITMAP
The return argument is a bitmap with a bit indicating a member of the instance's active set---those currently participating in the OpenVMS SMP scheduling activities.The size of the returned bitmap is determined by the number of supported CPUs on the system. You can compute the number of bytes needed for the bitmap as follows: Use the $GETSYI system service with an item code of SYI$_MAX_CPUS to find the minimum number of bits needed, round this number up to a multiple of 64, and divide the result by 8.
SYI$_ACTIVE_CPU_MASK
Note that this item code is becoming obsolete; HP recommends that you not use it because it represents only up to 64 CPUs. The service continues to return the correct data for systems with up to 64 CPUs but fails for systems with more than 64 CPUs. For greater flexibility, use item code SYI$_ACTIVE_CPU_BITMAP instead.On Alpha and I64 systems, returns a value that represents a CPU-indexed bitvector. When a particular bit position is set, the processor with that CPU ID value is a member of the instance's active set---those currently participating in the OpenVMS SMP scheduling activities.
SYI$_ACTIVECPU_CNT
Returns a count of the CPUs actively participating in the current boot of the symmetric multiprocessing (SMP) system.Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).
SYI$_ARCHFLAG
Returns the architecture flags for the system.Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).
SYI$_ARCH_NAME
Returns, as a character string, the name of the CPU architecture on which the process is executing. Currently, one of three strings is returned: "Alpha" for Alpha, "VAX" for VAX, or "IA64" for I64.Because this name can include up to 15 characters, the buffer length field in the item descriptor should specify 15 (bytes).
SYI$_ARCH_TYPE
Returns the type of CPU architecture on which the process is executing. SYI$_ARCH_TYPE returns 1 on VAX , 2 on Alpha, and 3 on I64.Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).
SYI$_AVAIL_CPU_BITMAP
The return argument is a bitmap with a bit indicating a member of the instance's configure set---those owned by the partition and controlled by the issuing instance.The size of the returned bitmap is determined by the number of supported CPUs on the system. You can compute the number of bytes needed for the bitmap as follows: Use the $GETSYI system service with an item code of SYI$_MAX_CPUS to find the minimum number of bits needed, round this number up to a multiple of 64, and divide the result by 8.
SYI$_AVAIL_CPU_MASK
Note that this item code is becoming obsolete; HP recommends that you not use it because it represents only up to 64 CPUs. The service continues to return the correct data for systems with up to 64 CPUs but fails for systems with more than 64 CPUs. For greater flexibility, use item code SYI$_AVAIL_CPU_BITMAP instead.On Alpha and I64 systems, returns a value that represents a CPU-indexed bitvector. When a particular bit position is set, the processor with that CPU ID value is a member of the instance's configure set---those owned by the partition and controlled by the issuing instance.
SYI$_AVAILCPU_CNT
Returns the number of CPUs available in the current boot of the symmetric multiprocessing (SMP) system.Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).
SYI$_BOOT_DEVICE
Returns the name of the device from which the system was booted as a character string. For a system with a shadowed system disk, SYI$_BOOT_DEVICE returns the name of the member device from which the shadow set was formed.SYI$_BOOTTIME
Returns the time when the node was booted.Because the returned time is in the standard 64-bit absolute time format, the buffer length field in the item descriptor should specify 8 (bytes).
SYI$_CHARACTER_EMULATED
Returns the number 1 if the character string instructions are emulated on the CPU and the value 0 if they are not.Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).
SYI$_CLUSTER_EVOTES
Returns the number of votes expected to be found in the OpenVMS Cluster system. The cluster determines this value by selecting the highest number from all of the following: each node's system parameter EXPECTED_VOTES, the sum of the votes currently in the cluster, and the previous value for the number of expected votes.Because this number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).
SYI$_CLUSTER_FSYSID
Returns the system identification of the founding node, which is the first node in the OpenVMS Cluster system to boot.The cluster management software assigns this system identification to the node. You can obtain this information by using the DCL command SHOW CLUSTER. Because the system identification is a 6-byte hexadecimal number, the buffer length field in the item descriptor should specify 6 (bytes).
SYI$_CLUSTER_FTIME
Returns the time when the founding node is booted. The founding node is the first node in the OpenVMS Cluster system to boot.Because the returned time is in the standard 64-bit absolute time format, the buffer length field in the item descriptor should specify 8 (bytes).
SYI$_CLUSTER_MEMBER
Returns the membership status of the node in the OpenVMS Cluster system. The membership status specifies whether the node is currently a member of the cluster.Because the membership status of a node is described in a 1-byte bit field, the buffer length field in the item descriptor should specify 1 (byte). If bit 0 in the bit field is set, the node is a member of the cluster; if it is clear, then it is not a member of the cluster.
SYI$_CLUSTER_NODES
Returns the number (in decimal) of nodes currently in the OpenVMS Cluster system.Because this number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).
SYI$_CLUSTER_QUORUM
Returns the number (in decimal) that is the total of the quorum values held by all nodes in the OpenVMS Cluster system. Each node's quorum value is derived from its system parameter EXPECTED_VOTES.Because this number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).
SYI$_CLUSTER_VOTES
Returns the total number of votes held by all nodes in the OpenVMS Cluster system. The number of votes held by any one node is determined by that node's system parameter VOTES.Because this decimal number is a word in length, the buffer length field in the item descriptor should specify 2 (bytes).
SYI$_COMMUNITY_ID
On Alpha and I64 systems, returns the hardware community ID for the issuing instance within the hard partition. Supported only on AlphaServer systems that support partitioning.SYI$_CONTIG_GBLPAGES
Returns the maximum number of free, contiguous global CPU-specific pages. This number is the largest size global section that can be created.Because this number is a longword, the buffer length in the item descriptor should specify 4 (bytes).
SYI$_CPU
On VAX systems, returns the CPU processor type, as represented in the processor's system identification (SID) register.For example, the integer 1 represents a VAX--11/780 system and the integer 6 represents a VAX 8530, VAX 8550, VAX 8700, or VAX 8800 system.
Because the processor type is a longword decimal number, the buffer length field in the item descriptor should specify 4 (bytes).
The $PRDEF macro defines the following symbols for the processor types:
Processor Symbol VAX-11/730 PR$_SID_TYP730 VAX-11/750 PR$_SID_TYP750 VAX-11/780, 785 PR$_SID_TYP780 VAXstation II, II/GPX, and MicroVAX II PR$_SID_TYPUV2 VAXstation 2000/MicroVAX 2000 PR$_SID_TYP410 VAX 8200, 8250, 8300, 8350 PR$_SID_TYP8SS VAX 8530, 8550, 8810 (8700), and 8820-N (8800) PR$_SID_TYP8NN VAX 8600, 8650 PR$_SID_TYP790 VAX 8820, 8830, 8840 PR$_SID_TYP8PS VAXft 3000 Model 310 PR$_SID_TYP520 VAXstation, MicroVAX 3100 series PR$_SID_TYP420 MicroVAX 3300, 3400, 3500, 3600, 3800, 3900 PR$_SID_TYP650 VAXstation 3520, 3540 PR$_SID_TYP60 VAX 4000-300 PR$_SID_TYP670 VAX 6000-200, 6000-300 series PR$_SID_TYP9CC VAX 6000-400 series PR$_SID_TYP9RR VAX 9000-200, 9000-400 series PR$_SID_TYP9AQ On Alpha and I64 systems, $GETSYI returns PR$_SID_TYP_NOTAVAX.
For information about extended processor type codes, see the description for the SYI$_XCPU item code.
SYI$_CPU_AUTOSTART
On Alpha and I64 systems, returns a list of zeroes and ones, separated by commas and indexed by CPU ID. Any entry with a value of one indicates that specific CPU will be brought into the OpenVMS active set if it transitions into the current instance from outside, or is powered up while already owned.SYI$_CPU_FAILOVER
Returns list of numeric partition IDs, separated by commas and indexed by CPU ID, that define the destination of the processor if the current instance should crash. Supported only on AlphaServer systems that support partitioning.SYI$_CPUCAP_MASK
On Alpha and I64 systems, returns an array of quadword user capability masks for all CPUs in the system. This array is indexed by CPU ID and contains as many elements as the amount of space specified by the buffer length field in the item descriptor.To minimize wasted space, a prior call to $GETSYI with SYI$_MAX_CPUS will provide the number of CPUs that need to be retrieved. Multiplying that value by 8 bytes for each quadword provides the value to be written in the buffer length field of the item descriptor.
SYI$_CPUCONF
Note that this item code is becoming obsolete; HP recommends that you not use it because it represents only up to 64 CPUs. The service continues to return the correct data for systems with up to 64 CPUs but fails for systems with more than 64 CPUs. For greater flexibility, use item code SYI$_AVAIL_CPU_BITMAP instead.On Alpha and I64 systems, returns a value that represents a CPU-indexed bitvector. When a particular bit position is set, the processor with that CPU ID value is a member of the instance's configure set---those owned by the partition and controlled by the issuing instance.
SYI$_CPUTYPE
On Alpha and I64 systems, returns the processor type, as stored in the hardware restart parameter block (HWRPB).For example, the value of 2 represents a DECchip 21064 processor. Because this number is a longword, the buffer length field in the item descriptor should specify 4 (bytes).
The following table shows the processor codes and processors:
Processor Code Processor 2 21064 4 21066, 21068, 21066A, 21068A 5 21164 6 21064A 7 21164A 8 21264 11 21264A 12 21264C 13 21264B 14 21264D 15 21364 16 21364 .
.
.31 Itanium 2 32 Itanium 3 SYI$_CWLOGICALS
Returns the number 1 if the clusterwide logical name database has been initialized on the CPU, or the value 0 if it has not been initialized. Because this number is a Boolean value (1 or 0), the buffer length field in the item descriptor should specify 1 (byte).SYI$_DAY_OVERRIDE
Returns the number 1 if the SET DAY command has been used to override the default primary and secondary day types in the user authorization file that are used to control user logins. $GETSYI returns the number 0 if no override is currently in effect, and the contents of user authorization file records for each user are being honored.SYI$_DAY_SECONDARY
Returns the number 1 if any override with the SET DAY command has been used to specify that the current day is to be considered a Secondary day for user login purposes. $GETSYI returns the number 0 if any override with the SET DAY command has been used to specify that the current day is to be considered a Primary day for user login purposes.
