Each of these item codes requires that the buffer specify a longword into which $GETDVI will write a 0 or 1: 0 if the terminal does not have the specified characteristic, and 1 if the terminal does have it. The one exception is the DVI$_TT_PAGE item code, which when specified causes $GETDVI to return a decimal longword value that is the page size of the terminal.
You can also obtain this terminal-specific information by using the DVI$_DEVDEPEND and DVI$_DEVDEPEND2 item codes. Each of these two item codes specifies a longword bit vector wherein each bit corresponds to a terminal characteristic; $GETDVI sets the corresponding bit for each characteristic possessed by the terminal.
Following is a list of the item codes that return information about terminal characteristics. For information about these characteristics, see the description of the F$GETDVI lexical function in the HP OpenVMS DCL Dictionary.
| DVI$_TT_NOECHO | DVI$_TT_NOTYPEAHD |
| DVI$_TT_HOSTSYNC | DVI$_TT_TTSYNC |
| DVI$_TT_ESCAPE | DVI$_TT_LOWER |
| DVI$_TT_MECHTAB | DVI$_TT_WRAP |
| DVI$_TT_LFFILL | DVI$_TT_SCOPE |
| DVI$_TT_CRFILL | DVI$_TT_SETSPEED |
| DVI$_TT_EIGHTBIT | DVI$_TT_MBXDSABL |
| DVI$_TT_READSYNC | DVI$_TT_MECHFORM |
| DVI$_TT_NOBRDCST | DVI$_TT_HALFDUP |
| DVI$_TT_MODEM | DVI$_TT_OPER |
| DVI$_TT_LOCALECHO | DVI$_TT_AUTOBAUD |
| DVI$_TT_PAGE | DVI$_TT_HANGUP |
| DVI$_TT_MODHANGUP | DVI$_TT_BRDCSTMBX |
| DVI$_TT_DMA | DVI$_TT_ALTYPEAHD |
| DVI$_TT_ANSICRT | DVI$_TT_REGIS |
| DVI$_TT_AVO | DVI$_TT_EDIT |
| DVI$_TT_BLOCK | DVI$_TT_DECCRT |
| DVI$_TT_EDITING | DVI$_TT_INSERT |
| DVI$_TT_DIALUP | DVI$_TT_SECURE |
| DVI$_TT_FALLBACK | DVI$_TT_DISCONNECT |
| DVI$_TT_PASTHRU | DVI$_TT_SIXEL |
| DVI$_TT_PRINTER | DVI$_TT_APP_KEYPAD |
| DVI$_TT_DRCS | DVI$_TT_SYSPWD |
| DVI$_TT_DECCRT2 | |
| DVI$_TT_DECCRT3 | |
| DVI$_TT_DECCRT4 |
In the description of the DVI$_DEVCHAR item code is a list of symbol names in which each symbol represents a device characteristic. To construct the $GETDVI item code for each device characteristic, substitute for yyyy that portion of the symbol name that follows the underscore character. For example, the DVI$_REC item code returns the same information as the DEV$V_REC bit in the DVI$_DEVCHAR longword bit vector.
The buffer for each of these item codes must specify a longword value, which is interpreted as Boolean. The $GETDVI service writes the value 1 into the longword if the device has the specified characteristic and the value 0 if it does not.
The Get Device/Volume Information service returns primary and secondary device characteristics information about an I/O device. You can use the chan argument only if (1) the channel has already been assigned, and (2) the caller's access mode is equal to or more privileged than the access mode from which the original channel assignment was made.The caller of $GETDVI does not need to have a channel assigned to the device about which information is desired.
The $GETDVI service returns information about both primary device characteristics and secondary device characteristics. By default, $GETDVI returns information about the primary device characteristics only.
To obtain information about secondary device characteristics, you must perform a logical OR operation on the item code specifying the information desired with the code DVI$C_SECONDARY.
You can obtain information about primary and secondary devices in a single call to $GETDVI.
In most cases, the two sets of characteristics (primary and secondary) returned by $GETDVI are identical. However, the two sets provide different information in the following cases:
- If the device has an associated mailbox, the primary characteristics are those of the assigned device and the secondary characteristics are those of the associated mailbox.
- If the device is a spooled device, the primary characteristics are those of the intermediate device (such as the disk) and the secondary characteristics are those of the spooled device (such as the printer).
- If the device represents a logical link on the network, the secondary characteristics contain information about the link.
Unless otherwise stated in the description of the item code, $GETDVI returns information about the local node only.
None
Sufficient AST quota.
$ALLOC, $ASSIGN, $BRKTHRU, $BRKTHRUW, $CANCEL, $CREMBX, $DALLOC, $DASSGN, $DELMBX, $DEVICE_PATH_SCAN, $DEVICE_SCAN, $DISMOU, $GETDVIW, $GETMSG, $GETQUI, $GETQUIW, $INIT_VOL, $IO_FASTPATH, $MOUNT, $PUTMSG, $QIO, $QIOW, $SNDERR, $SNDJBC, $SNDJBCW, $SNDOPR
SS$_NORMAL The service completed successfully. SS$_ACCVIO The device name string descriptor, device name string, or itmlst argument cannot be read; or the buffer or return length longword cannot be written by the caller. SS$_BADPARAM The item list contains an invalid item code, or the buffer address field in an item descriptor specifies less than four bytes for the return length information. SS$_EXASTLM The process has exceeded its AST limit quota. SS$_IVCHAN You specified an invalid channel number, that is, a channel number larger than the number of channels. SS$_IVDEVNAM The device name string contains invalid characters, or neither the devnam nor chan argument was specified. SS$_IVLOGNAM The device name string has a length of 0 or has more than 63 characters. SS$_NONLOCAL The device is on a remote system. SS$_NOPRIV The specified channel is not assigned or was assigned from a more privileged access mode. SS$_NOSUCHDEV The specified device does not exist on the host system. SS$_NOSUCHPATH On Alpha and I64 systems, the specified path does not exist for the device, even though the device itself does exist. SS$_UNSUPPORTED One or more of the item codes are not supported on the device specified.
The condition values returned are the same as those returned in R0.
Returns information about an I/O device; this information consists of primary and secondary device characteristics.The $GETDVIW service completes synchronously; that is, it returns to the caller with the requested information. HP recommends that you use an IOSB with this service. An IOSB prevents the service from completing prematurely. In addition, the IOSB contains additional status information.
For asynchronous completion, use the Get Device/Volume Information ($GETDVI) service; $GETDVI returns to the caller after queuing the information request, without waiting for the information to be returned. In all other respects, $GETDVIW is identical to $GETDVI. For all other information about the $GETDVIW service, see the description of $GETDVI.
Note
All pathname-related information pertains only to Alpha and I64 systems.For additional information about system service completion, refer to the Synchronize ($SYNCH) service.
SYS$GETDVIW [efn] ,[chan] ,[devnam] ,itmlst [,iosb] [,astadr] [,astprm] [,nullarg,][pathname]
int sys$getdviw (unsigned int efn, unsigned short int chan, void *devnam, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), int astprm, unsigned __int64 *nullarg,...);
Returns the value(s) of the specified console environment variable(s).
SYS$GETENV itmlst
int sys$getenv (void *itmlst);
itmlst
OpenVMS usage: item_list_3 type: longword (unsigned) access: read only mechanism: by reference
The itmlst argument is the address of a list of item descriptors, each of which describes an item of information. The list of item descriptors is terminated by a longword of 0.The service takes one argument as input, an item list. This item list has the following format for a single item descriptor:

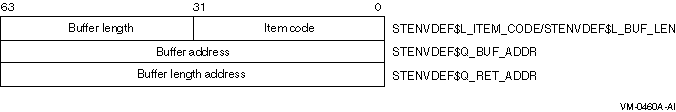

The following table defines the item descriptor fields:
| Descriptor Field | Definition |
|---|---|
| Item code | A longword indicating which environment variable you want to retrieve. These codes are defined in $STENVDEF. |
| Buffer length | A longword specifying the length of the buffer in which GETENV is to write the environment variable's value. |
| Buffer address | A quadword indicating the address of the buffer in which GETENV is to write the environment variable's value. |
| Return length address | A quadword indicating the return address in which to put the length of the value that GETENV retrieved. |
This system service will return the value(s) of the specified console environment variable(s).None
None
None
SS$_NORMAL Operation was successful; requested data was returned to caller. SS$_ACCVIO This status is returned if the caller does not have write access to the two input buffers or if the probe for read access to the item list fails. SS$_BADPARAM This status is returned if an empty item list is specified, or if the console callback to read the environment variable fails for any reason.
Returns "interesting" fields from the specified lock.Note that this system service is supported only in an OpenVMS Alpha Galaxy environment. For more information about programming with OpenVMS Galaxy system services, refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide.
SYS$GET_GALAXY_LOCK_INFO handle ,name ,timeout ,size ,ipl ,rank ,flags [,name_length]
int sys$get_galaxy_lock_info (unsigned __int64 lock_handle, char *name, unsigned int *timeout, unsigned int *size, unsigned int *ipl, unsigned int *rank, unsigned short int *flags unsigned short int *name_length);
handle
OpenVMS usage: handle for the galaxy lock type: quadword (unsigned) access: read mechanism: input by value
The 64-bit lock handle that identifies the lock on which to return information. This value is returned by SYS$CREATE_GALAXY_LOCK.name
OpenVMS usage: address type: zero-terminated string access: write mechanism: output by reference
Pointer to a buffer. This buffer must be large enough to receive the name of the lock. Locks names are zero-terminated strings with a maximum size of 16 bytes.timeout
OpenVMS usage: address type: longword (unsigned) access: write mechanism: output by reference
Pointer to a longword. The value returned is the timeout value of the lock.size
OpenVMS usage: address type: longword (unsigned) access: write mechanism: output by reference
Pointer to a longword. The value returned is the size of the lock in bytes.ipl
OpenVMS usage: address type: longword (unsigned) access: write mechanism: output by reference
Pointer to a longword. The value returned is the IPL of the lock.rank
OpenVMS usage: address type: longword (unsigned) access: write mechanism: output by reference
Pointer to a longword. The value returned is the rank of the lock.flags
OpenVMS usage: address type: word (unsigned) access: write mechanism: output by reference
Pointer to a word. The value returned is the word mask of lock flags.name_length
OpenVMS usage: address type: word (unsigned) access: write mechanism: output by reference
Length of the string returned in the name argument.
This service returns all "interesting" fields from the specified lock. See the $CREATE_GALAXY_LOCK service for detailed information regarding these values.Read access to lock.
None
$ACQUIRE_GALAXY_LOCK, $CREATE_GALAXY_LOCK, $CREATE_GALAXY_LOCK_TABLE, $DELETE_GALAXY_LOCK, $DELETE_GALAXY_LOCK_TABLE, $GET_GALAXY_LOCK_SIZE, $RELEASE_GALAXY_LOCK
SS$_NORMAL Normal completion. SS$_IVLOCKID Invalid lock id. SS$_IVLOCKTBL Invalid lock table.
Returns the minimum and maximum size of an OpenVMS Galaxy lock.Note that this system service is supported only in an OpenVMS Alpha Galaxy environment.
For more information about programming with OpenVMS Galaxy system services, refer to the HP OpenVMS Alpha Partitioning and Galaxy Guide.
SYS$GET_GALAXY_LOCK_SIZE min_size ,max_size
int sys$get_galaxy_lock_size (unsigned int *min_size, unsigned int *max_size);
min_size
OpenVMS usage: address type: longword (unsigned) access: write mechanism: output by reference
Pointer to a longword. The value returned is minimum legal size of a galaxy lock structure.max_size
OpenVMS usage: address type: longword (unsigned) access: write mechanism: output by reference
Pointer to a longword. The value returned is maximum legal size of a galaxy lock structure.
This service returns the minimum and maximum size of an OpenVMS Galaxy lock. If a lock is created with the maximum size, the locking services will record acquire and release information in the lock.The lock sizes can be used to determine the value of the section_size parameter to the $CREATE_GALAXY_LOCK_TABLE service.
Read access to lock.
None
$ACQUIRE_GALAXY_LOCK, $CREATE_GALAXY_LOCK, $CREATE_GALAXY_LOCK_TABLE, $DELETE_GALAXY_LOCK, $DELETE_GALAXY_LOCK_TABLE, $GET_GALAXY_LOCK_INFO, $RELEASE_GALAXY_LOCK
SS$_NORMAL Normal completion.
Returns information about one or more processes on the system or across the OpenVMS Cluster system.The $GETJPI service completes asynchronously. For synchronous completion, use the Get Job/Process Information and Wait ($GETJPIW) service.
On Alpha and I64 systems, this service accepts 64-bit addresses.
SYS$GETJPI [efn] ,[pidadr] ,[prcnam] ,itmlst ,[iosb] ,[astadr] ,[astprm]
int sys$getjpi (unsigned int efn, unsigned int *pidadr, void *prcnam, void *itmlst, struct _iosb *iosb, void (*astadr)(__unknown_params), unsigned __int64 astprm);
efn
OpenVMS usage: ef_number type: quadword (unsigned) access: read only mechanism: by value
Number of the event flag to be set when $GETJPI returns the requested information. The efn argument is a quadword containing this number; however, $GETJPI uses only the low-order byte.Upon request initiation, $GETJPI clears the specified event flag (or event flag 0 if efn was not specified). Then, when $GETJPI returns the requested information, it sets the specified event flag (or event flag 0).
HP strongly recommends the use of the EFN$C_ENF "no event flag" value as the event flag if you are not using an event flag to externally synchronize with the completion of this system service call. The $EFNDEF macro defines EFN$C_ENF. For more information, see the HP OpenVMS Programming Concepts Manual.
pidadr
OpenVMS usage: process_id type: longword (unsigned) access: modify mechanism: by 32- or 64-bit reference (Alpha and I64) mechanism: by 32-bit reference (VAX)
Process identification (PID) of the process about which $GETJPI is to return information. The pidadr argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a longword containing the PID. The pidadr argument can refer to a process running on the local node or a process running on another node in the cluster.If you give pidadr the value --1, $GETJPI assumes a wildcard operation and returns the requested information for each process on the system that it has the privilege to access, one process per call. To perform a wildcard operation, you must call $GETJPI in a loop, testing for the condition value SS$_NOMOREPROC after each call and exiting from the loop when SS$_NOMOREPROC is returned.
If you use $GETJPI with $PROCESS_SCAN, you can perform wildcard searches across the cluster. In addition, with $PROCESS_SCAN you can search for specific processes based on many different selection criteria.
You cannot abbreviate a PID. All significant digits of a PID must be specified; only leading zeros can be omitted.
prcnam
OpenVMS usage: process_name type: character-coded text string access: read only mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha and I64) mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)
Name of the process about which $GETJPI is to return information. The prcnam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a character string descriptor pointing to this name string.A process running on the local node can be identified with a 1- to 15-character string. To identify a process on a cluster, you must specify the full process name, which includes the node name as well as the process name. The full process name can contain up to 23 characters.
A local process name can look like a remote process name; therefore, if you specify ATHENS::SMITH, the system checks for a process named ATHENS::SMITH on the local node before checking node ATHENS for a process named SMITH.
You can use the prcnam argument only if the process identified by prcnam has the same UIC group number as the calling process. If the process has a different group number, $GETJPI returns no information. To obtain information about processes in other groups, you must use the pidadr argument.
itmlst
OpenVMS usage: 32-bit item_list_3 or 64-bit item_list_64b type: longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit access: read only mechanism: by 32- or 64-bit reference (Alpha and I64) mechanism: by 32-bit reference (VAX)
Item list specifying which information about the process or processes is to be returned. The itmlst argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha and I64 systems) of a list of item descriptors, each of which describes an item of information. An item list in 32-bit format is terminated by a longword of 0; an item list in 64-bit format is terminated by a quadword of 0. All items in an item list must be of the same format---either 32-bit or 64-bit.
